<< B >> Curtain Air Bag Module Connector Disconnection

  1. Use a flat-tipped screwdriver to unlock the locking button of the harness-side connector by withdrawing it toward you in two stages.
  2. Disconnect the curtain air bag module connector.

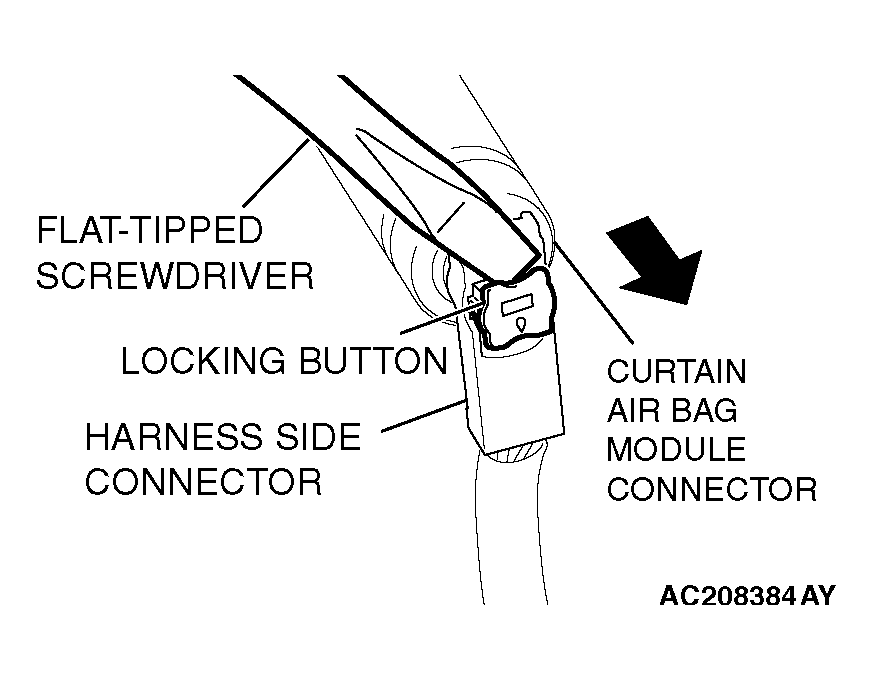

    Fig 1: Disconnecting Curtain Air Bag Module Connector
    G04238618Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
