Configuration Diagrams

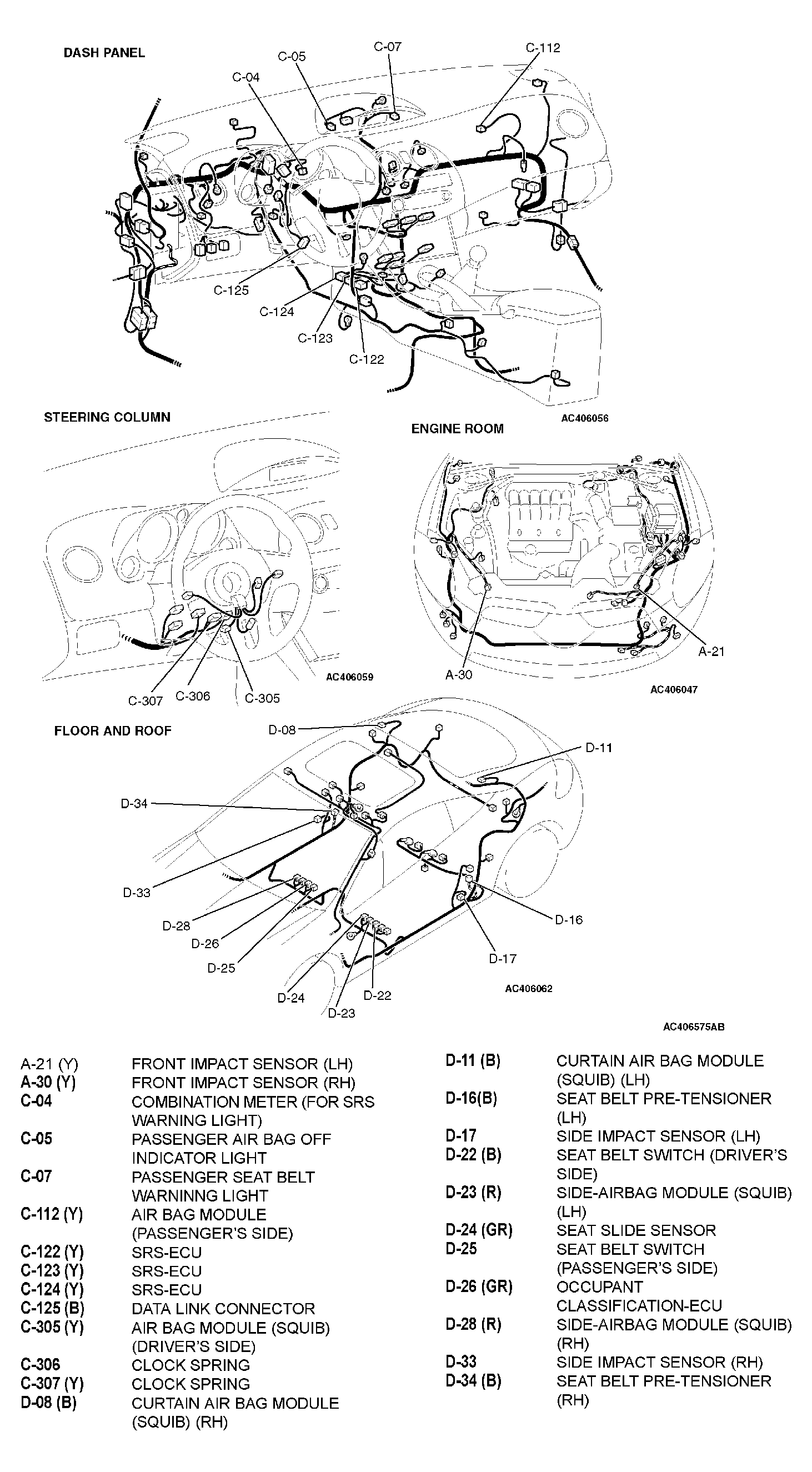

Fig 1: Supplemental Restraint System Configuration Diagrams
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
