DTC B1407: Front Impact Sensor (RH) Power Supply Circuit System: Notes

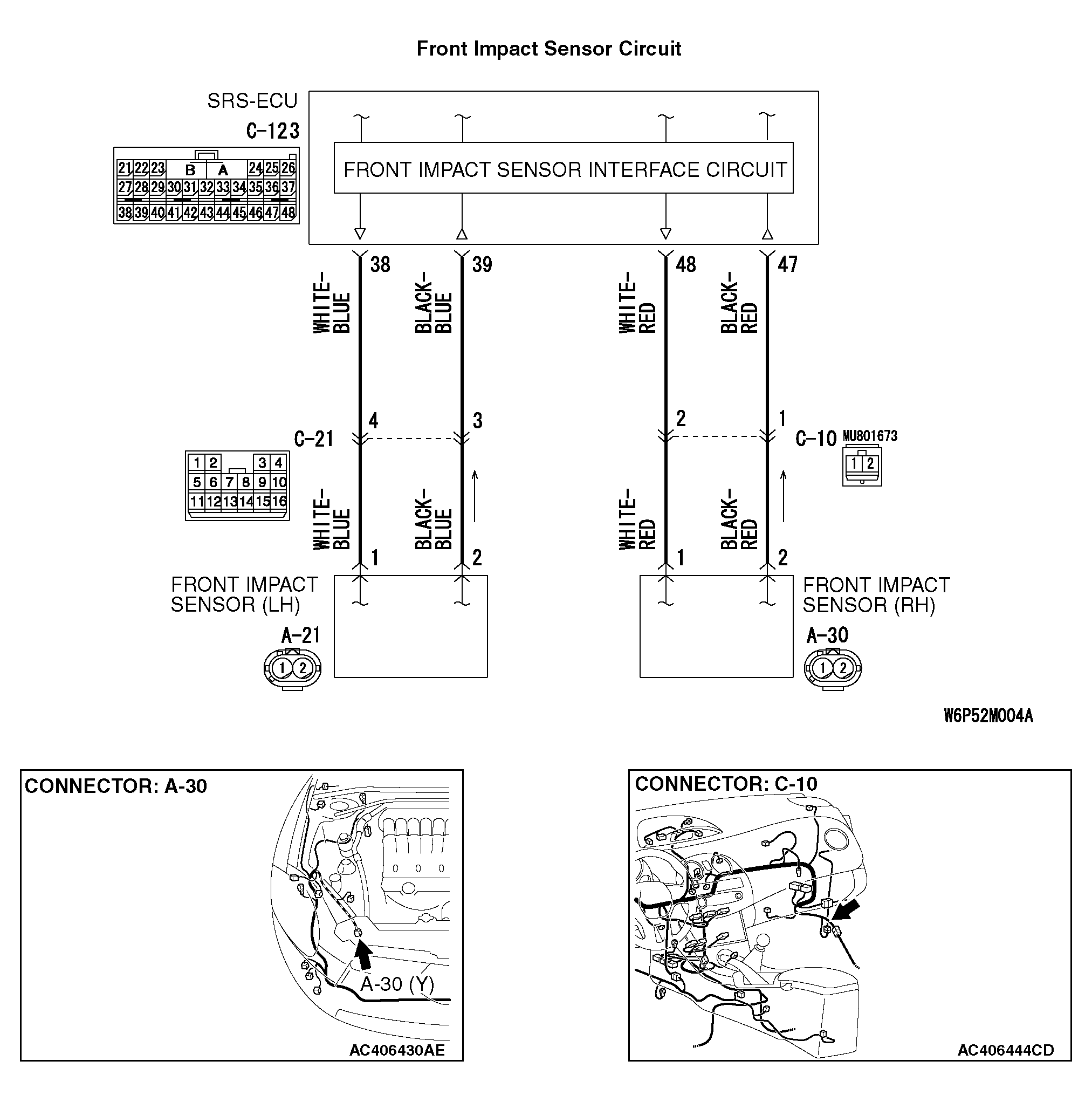

Fig 1: Front Impact Sensor Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

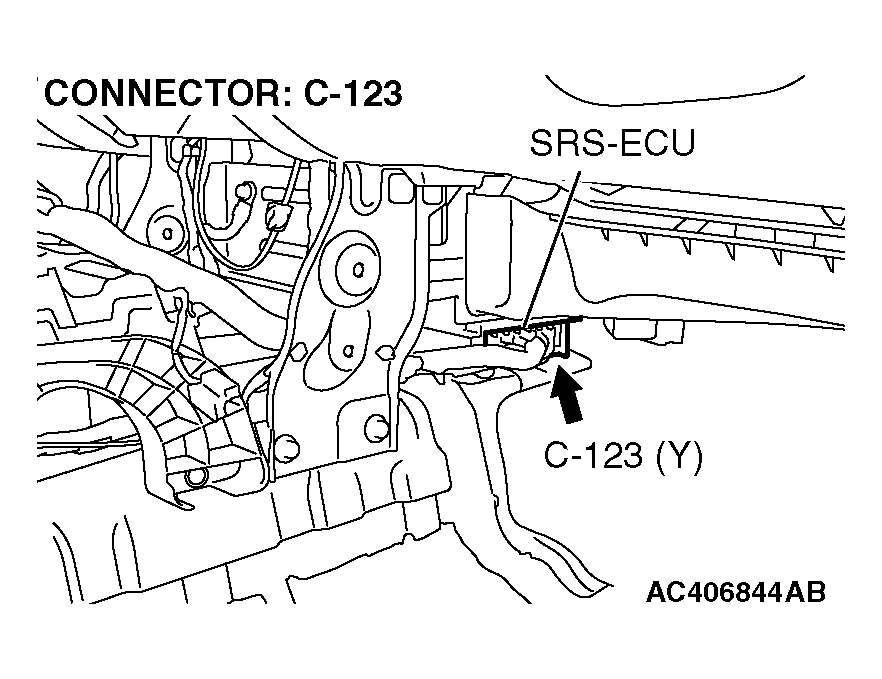

Fig 2: Identifying Connector C-123

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1407 is set in the SRS-ECU, always diagnose the CAN main bus line.
