DTC B1423: Side-Airbag Module (RH) (Squib) System Fault Power Supply Circuit (Short-Circuited to Power Supply): Notes

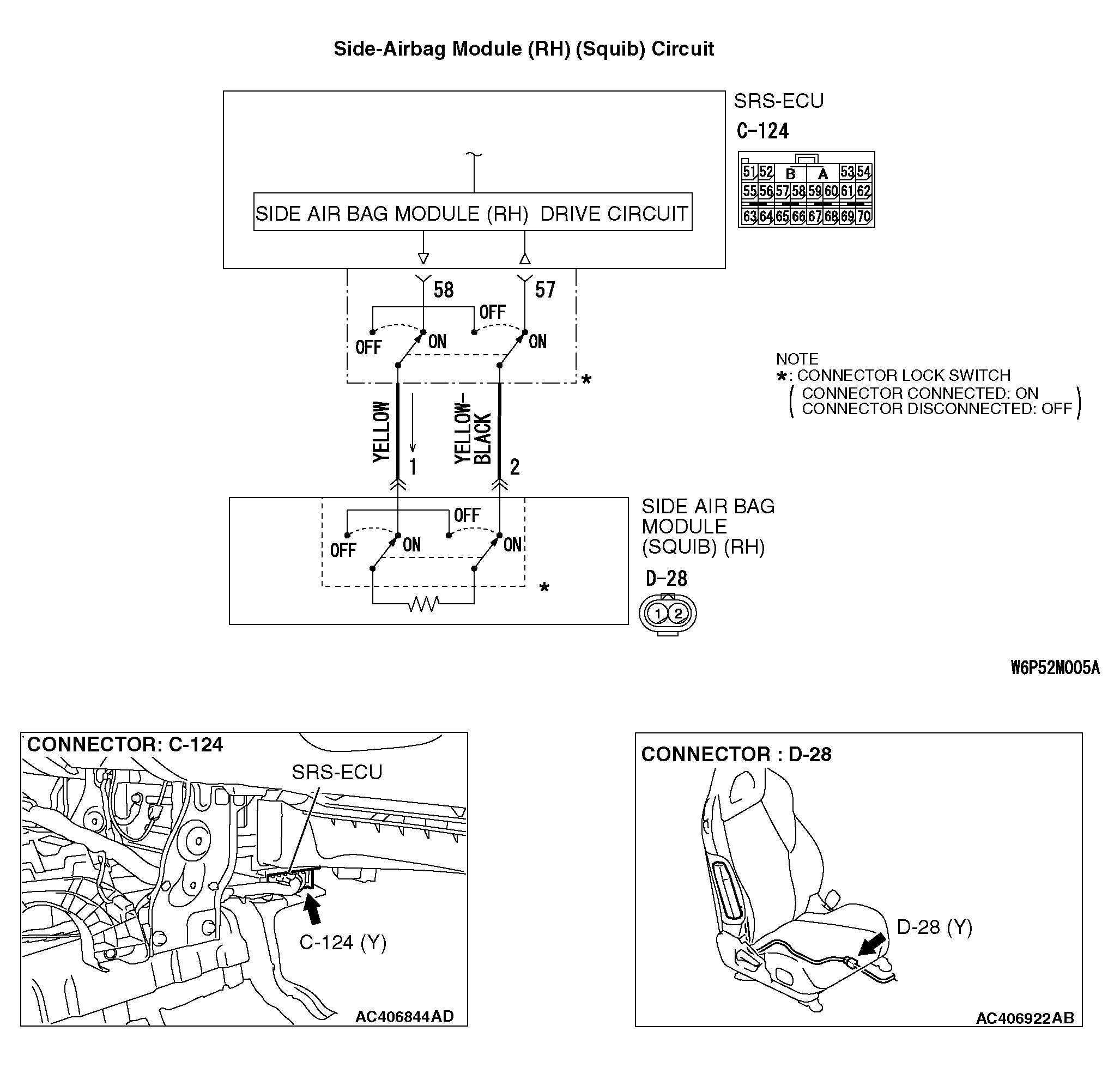

Fig 1: Side-Airbag Module RH (Squib) Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1423 is set in the combination meter, always diagnose the CAN bus lines.
