DTC B1427: Side Impact Sensor (RH) Power Supply Circuit System: Notes

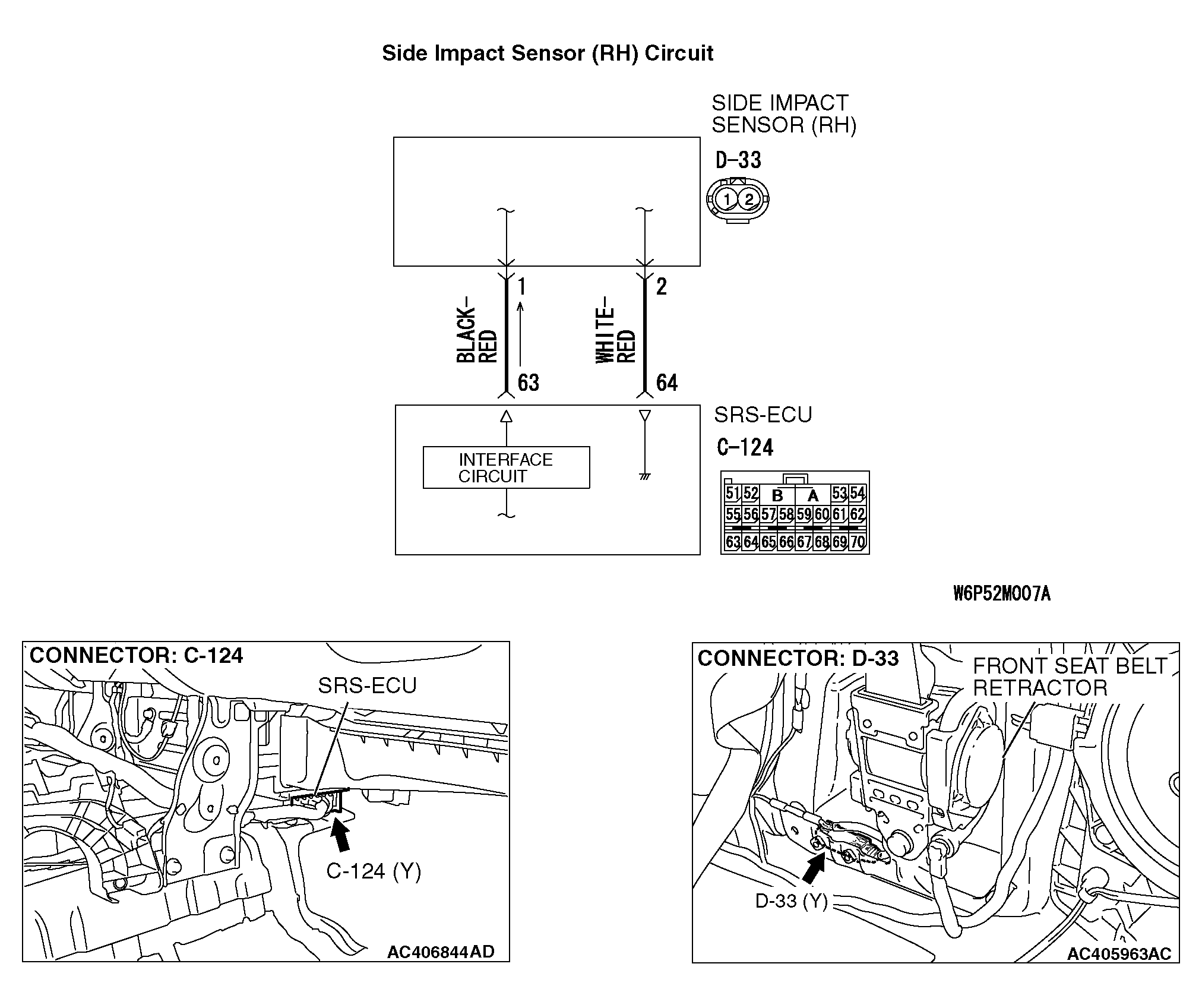

Fig 1: Side Impact Sensor (RH) Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1427 is set in the SRS-ECU, always diagnose the CAN main bus line.
