DTC B1443: Curtain Air Bag Module (RH) (Squib) System Fault Power Supply Circuit (Short-Circuited to Power Supply): Notes

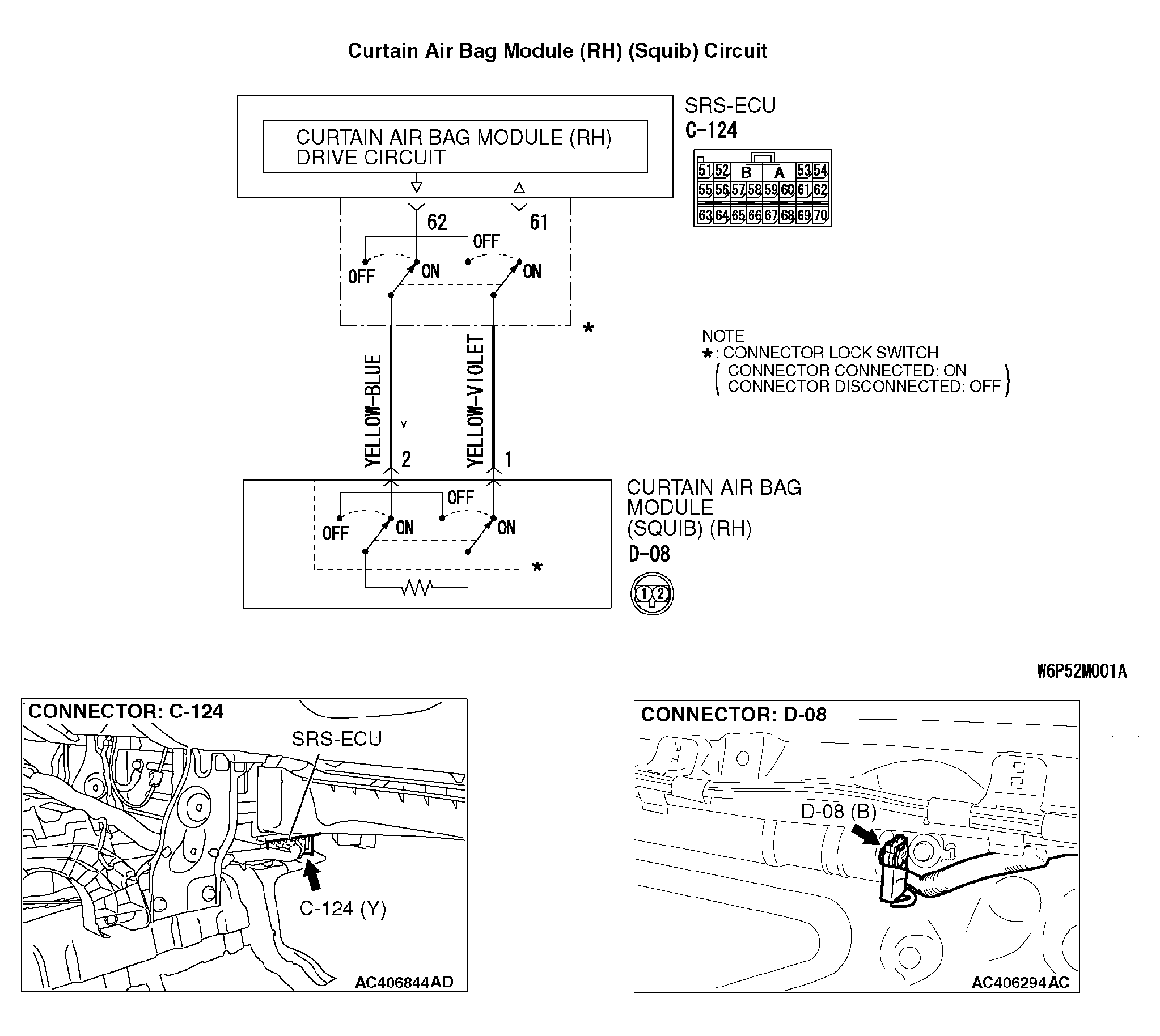

Fig 1: Curtain Air Bag Module RH (Squib) Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1443 is set in the SRS-ECU, always diagnose the CAN main bus line.
