DTC B1451: Curtain Air Bag Module (LH) (Squib) System Fault 2 (Open in the Squib Circuit): Notes

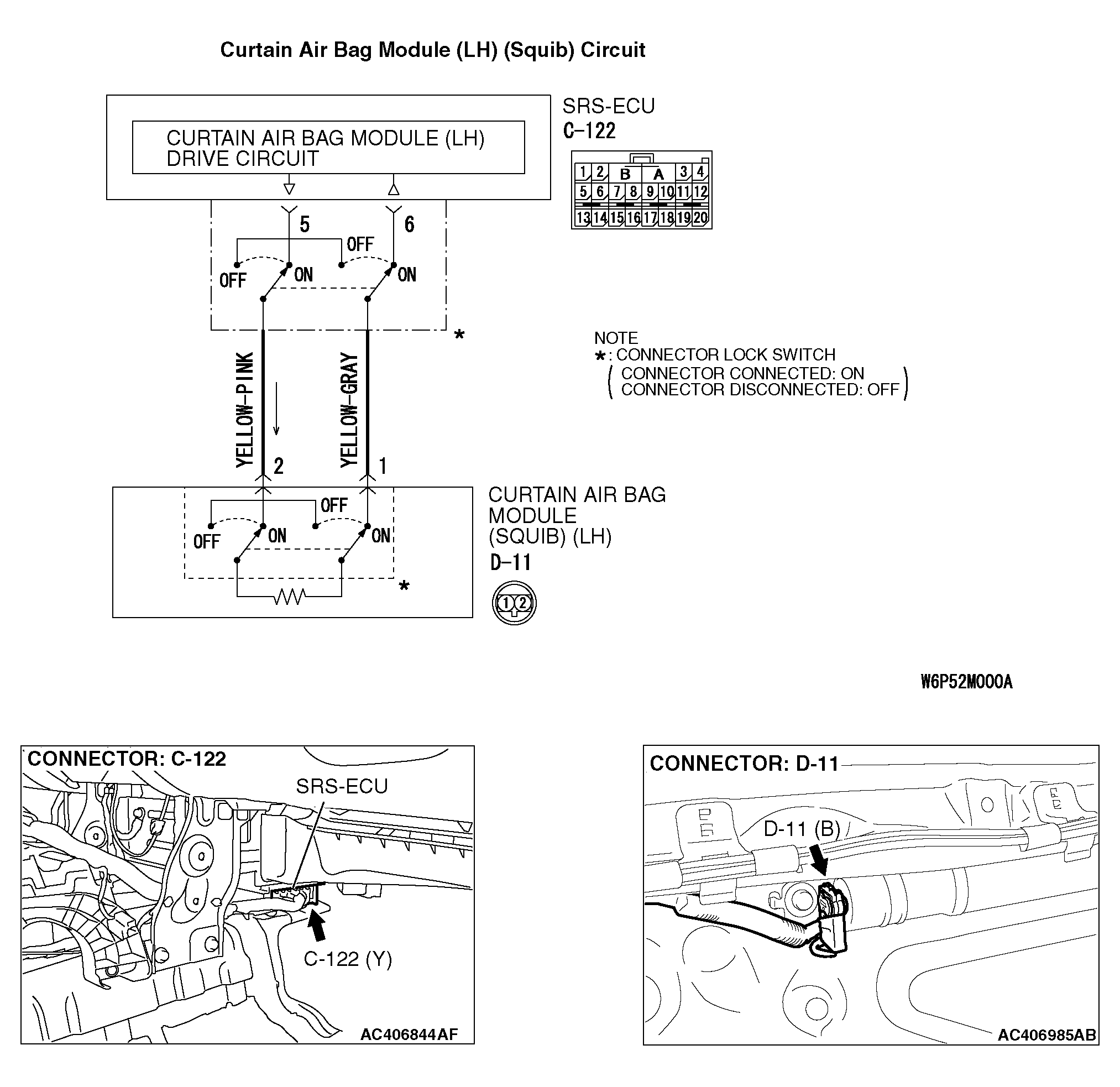

Fig 1: Curtain Air Bag Module LH (Squib) Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1451 is set in the SRS-ECU, always diagnose the CAN main bus line.
