DTC B1486: Passenger Seat Belt Warning Light Drive Circuit System Fault 2.: Notes

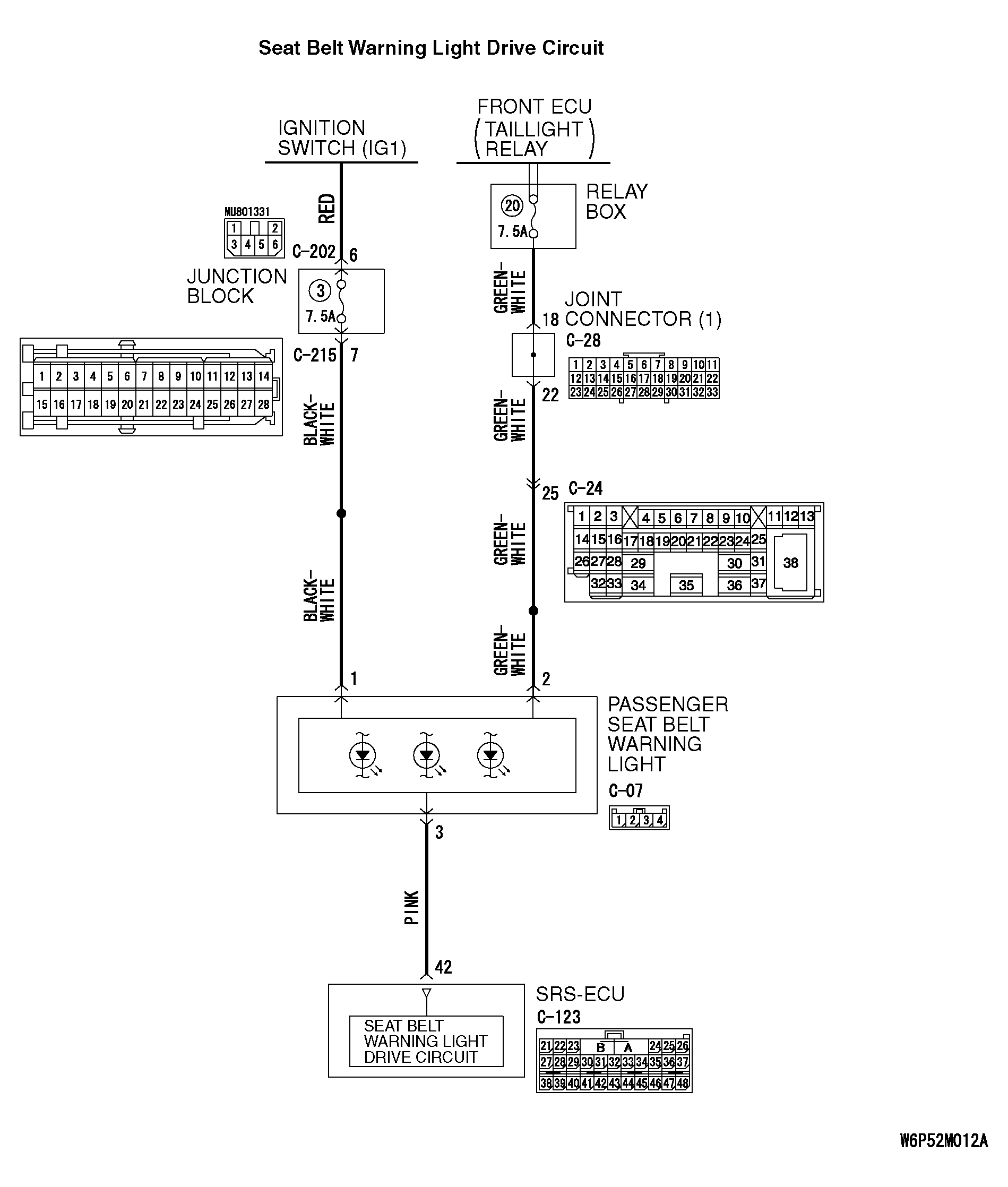

Fig 1: Seat Belt Warning Light Drive Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1486 is set in the SRS-ECU, always diagnose the CAN main bus line.
