Service Precautions
WARNING:
- In order to avoid injury to yourself or others from accidental deployment of the air bag during servicing, read and carefully follow all the precautions and procedures described in this service information .
- After disconnecting the battery cable, wait 60 seconds or more before proceeding with the following work. The SRS system is designed to retain enough voltage to deploy the air bag for a short time even after the battery has been disconnected, so serious injury may result from unintended air bag deployment if work is done on the SRS system immediately after the battery cables are disconnected.
WARNING:
- Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING.
- Do not use any electrical test equipment on or near the SRS components, except those specified on TEST EQUIPMENT .
- Never Attempt to Repair the Following Components: SRS-ECU, Clock Spring, Air Bag Module, Front impact sensor, Side Impact Sensor, Seat Belt with Pre-tensioner, Seat slide sensor, Front seat assembly. If any of these components are diagnosed as faulty, they should only be replaced, in accordance with the INDIVIDUAL COMPONENT SERVICE procedures in this service information , starting on INDIVIDUAL COMPONENT SERVICE .
- Do not attempt to repair the wiring harness connectors of the SRS. If any of the connectors are diagnosed as faulty, replace the wiring harness. If the wires are diagnosed as faulty, replace or repair the wiring harness according to the following table.

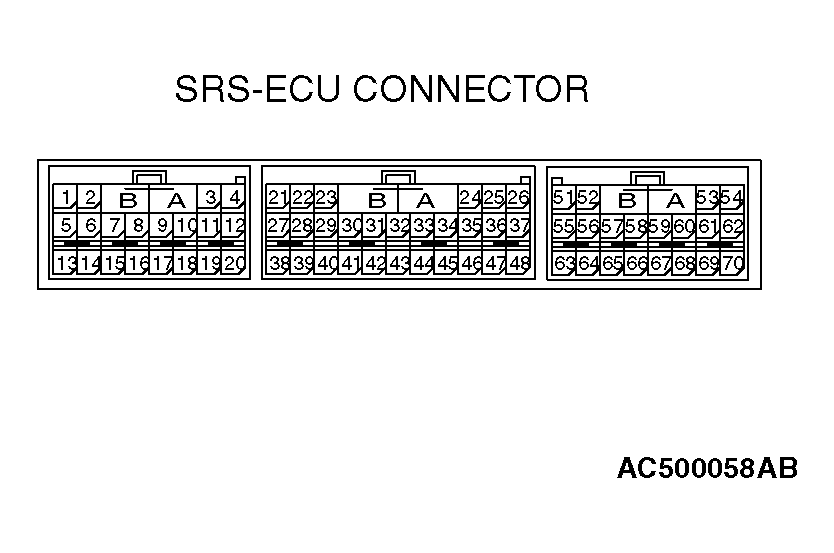

SRS-ECU CONNECTOR TERMINALS REFERENCE
| SRS-ECU TERMINAL NO. | DESTINATION OF HARNESS | CORRECTIVE ACTION |
|---|---|---|
| 1, 2 | Floor wiring harness --> Seat slide sensor | Correct or replace the floor wiring harness. |
| 3 | Floor wiring harness --> Driver's seat belt switch for Normal/Close terminal | Correct or replace the floor wiring harness. |
| 4 | Floor wiring harness --> Driver's seat belt switch for COM terminal | Correct or replace the floor wiring harness. |
| 5, 6 | Floor wiring harness --> Curtain air bag module (LH) | Correct or replace the floor wiring harness. |
| 7, 8 | Floor wiring harness --> Seat belt pre-tensioner (LH) | Correct or replace the floor wiring harness. |
| 9*, 10* | Floor wiring harness --> Side-airbag module (LH) | Correct or replace the floor wiring harness. |
| 18 | Floor wiring harness --> Driver's seat belt switch for Normal/Open terminal | Correct or replace the floor wiring harness. |
| 19*, 20* | Floor wiring harness --> Side impact sensor (LH) | Correct or replace the floor wiring harness. |
| 21 | Floor wiring harness --> Instrument panel wiring harness --> Air bag OFF indicator light | Correct or replace each wiring harness. |
| 23 | Floor wiring harness --> Instrument panel wiring harness --> Junction block (fuse No. 22) | Correct or replace each wiring harness. |
| 24 | Floor wiring harness --> Instrument panel wiring harness --> Junction block (fuse No. 23) | Correct or replace each wiring harness. |
| 27, 28 | Floor wiring harness --> Instrument panel wiring harness --> Air bag module (Front passenger's side) < 1st squib side > | Correct or replace each wiring harness. |
| 30, 31 | Floor wiring harness --> Instrument panel wiring harness --> Air bag module (Front passenger's side) < 2nd squib side > | Correct or replace each wiring harness. |
| 32 | Can line | Correct or replace can line. |
| 33, 34 | Floor wiring harness --> Instrument panel wiring harness --> Clock spring --> Air bag module (Driver's side) < 2nd squib side > | Correct or replace each wiring harness. Replace the clock spring. |
| 36, 37 | Floor wiring harness --> Instrument panel wiring harness --> Clock spring --> Air bag module (Driver's side) < 1st squib side > | Correct or replace each wiring harness. Replace the clock spring. |
| 38, 39 | Floor wiring harness --> Instrument panel wiring harness --> Front wiring harness --> Front impact sensor (LH) | Correct or replace each wiring harness. |
| 40 | Floor wiring harness --> Ground | Correct or replace the floor wiring harness. |
| 42 | Floor wiring harness --> Instrument panel wiring harness --> Seat belt warning light | Correct or replace each wiring harness. |
| 43 | Can line | Correct or replace can line. |
| 47, 48 | Floor wiring harness --> Instrument panel wiring harness --> Front impact sensor (RH) | Correct or replace each wiring harness. |
| 51 | Floor wiring harness --> Passenger's seat belt switch for common terminal | Correct or replace the floor wiring harness. |
| 52 | Floor wiring harness --> Passenger's seat belt switch for Normal/Close terminal | Correct or replace the floor wiring harness. |
| 57, 58 | Floor wiring harness --> Side-airbag module (RH) | Correct or replace the floor wiring harness. |
| 59, 60 | Floor wiring harness --> Seat belt pre-tensioner (RH) | Correct or replace the floor wiring harness. |
| 61, 62 | Floor wiring harness --> Curtain air bag module (RH) | Correct or replace the floor wiring harness. |
| 63, 64 | Floor wiring harness --> Side impact sensor (RH) | Correct or replace the floor wiring harness. |
| 65 | Floor wiring harness --> Passenger's seat belt switch for Normal/Open terminal | Correct or replace the floor wiring harness. |
| 66 | Floor wiring harness --> Occupant classification sensor | Correct or replace the floor wiring harness. |
