<< A >> Steering Column Assembly And Steering Gear Disconnection

Pinch the steering column shaft clip with pliers, and pull up the shaft in the direction shown to disengage the steering column assembly.

Fig 1: Identifying Steering Column Shaft Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

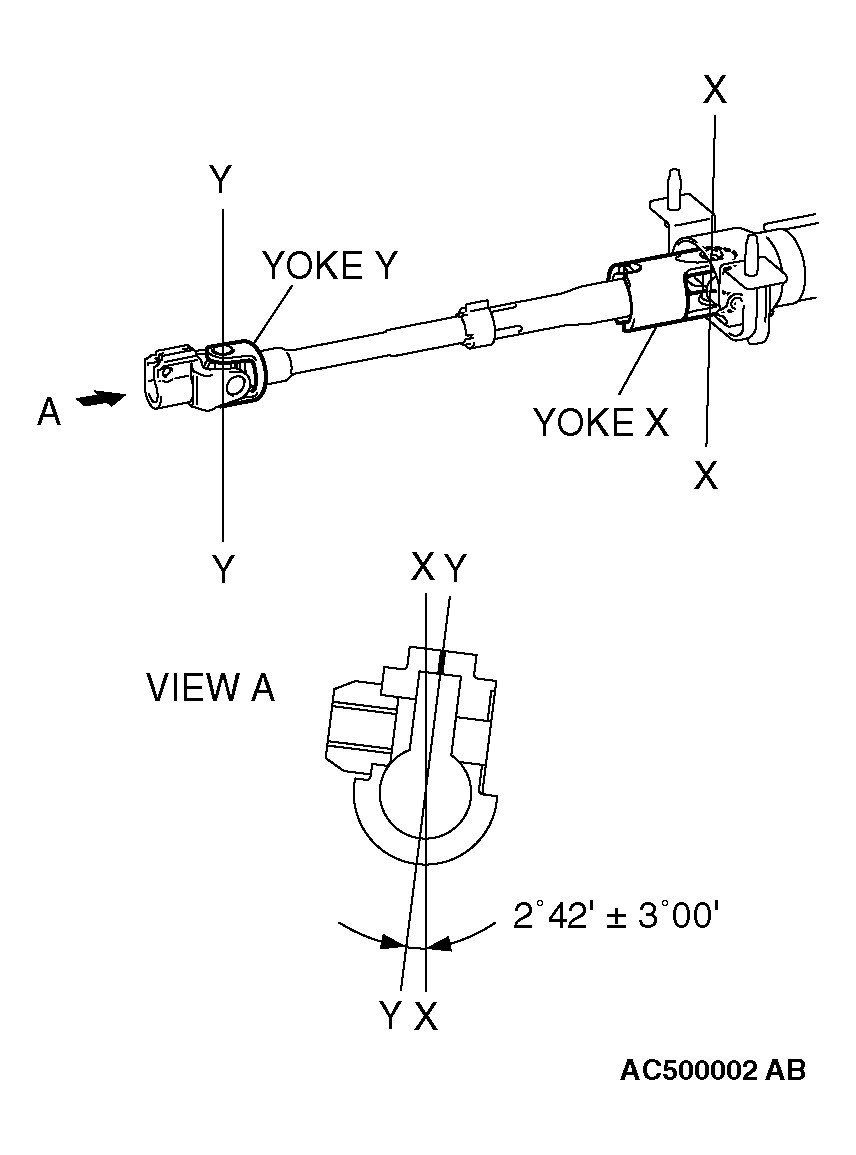

NOTE: If the steering column shaft is removed accidentally, remove the steering column assembly and be sure to insert the steering column shaft into the steering column as shown in Fig 2.

Fig 2: Inserting Steering Column Shaft Into Steering Column
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
