Keyless Entry Transmitter Battery: Testing and Inspection

INSPECTION

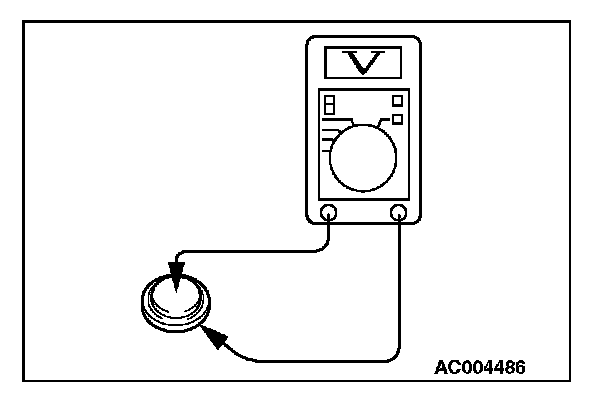

TRANSMITTER BATTERY CHECK




Measure the voltage of the battery. If the voltage of the battery is not within the standard value, replace the battery.

Standard value: 2.5 - 3.2 V
