Keyless Entry Transmitter: Service and Repair

TRANSMITTER

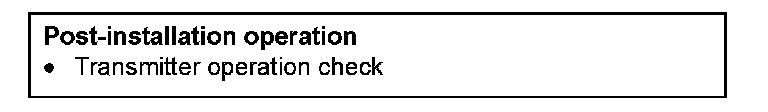

Post-installation Operation:

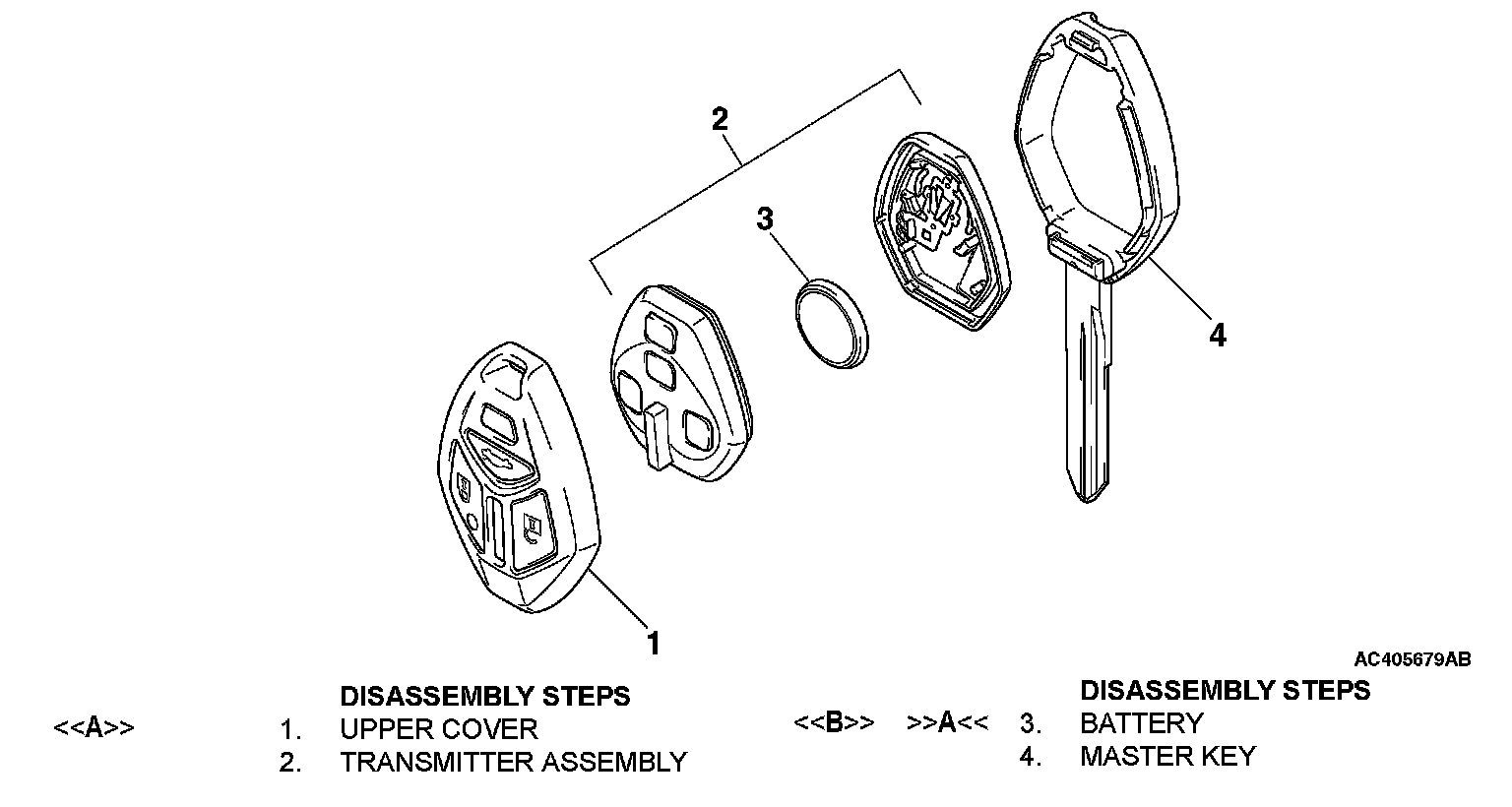

Disassembly Steps 1-4:

DISASSEMBLY AND ASSEMBLY

DISASSEMBLY SERVICE POINTS

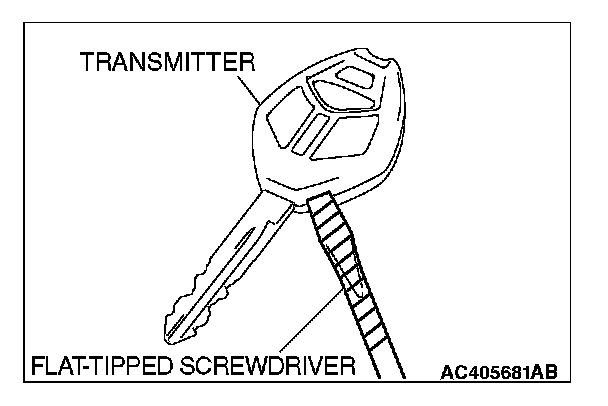

[[A]] UPPER COVER REMOVAL

CAUTION: To prevent damage to the transmitter, wrap a flat-tipped screwdriver with protective tape before prying.




Insert a flat-tipped screwdriver in the area shown, and remove the upper cover by prying it with the screwdriver.

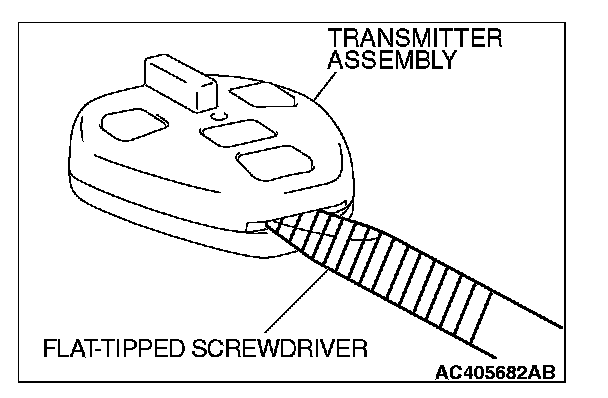

[[B]] BATTERY REMOVAL

CAUTION:
- Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.
- To prevent damage to the transmitter assembly, wrap a flat-tipped screwdriver with protective tape before prying.




Insert a flat-tipped screwdriver in the area shown, and remove the battery by prying it with the screwdriver.

ASSEMBLY SERVICE POINT

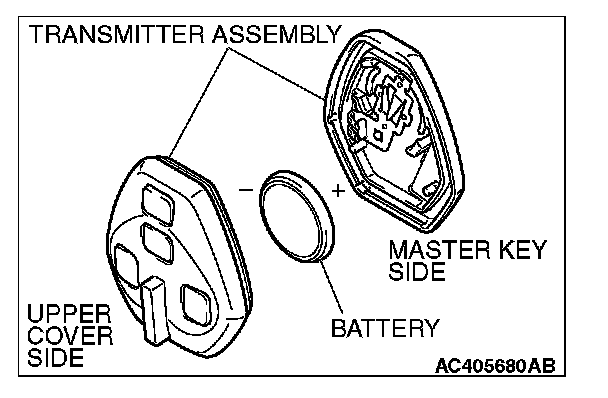

]]A[[ BATTERY INSTALLATION

CAUTION: Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.




Install a new battery to the transmitter assembly with its (+) side facing towards the master key side.

Battery required for replacement: Coin type battery CR1620
