Transmission Position Sensor/Switch: Locations

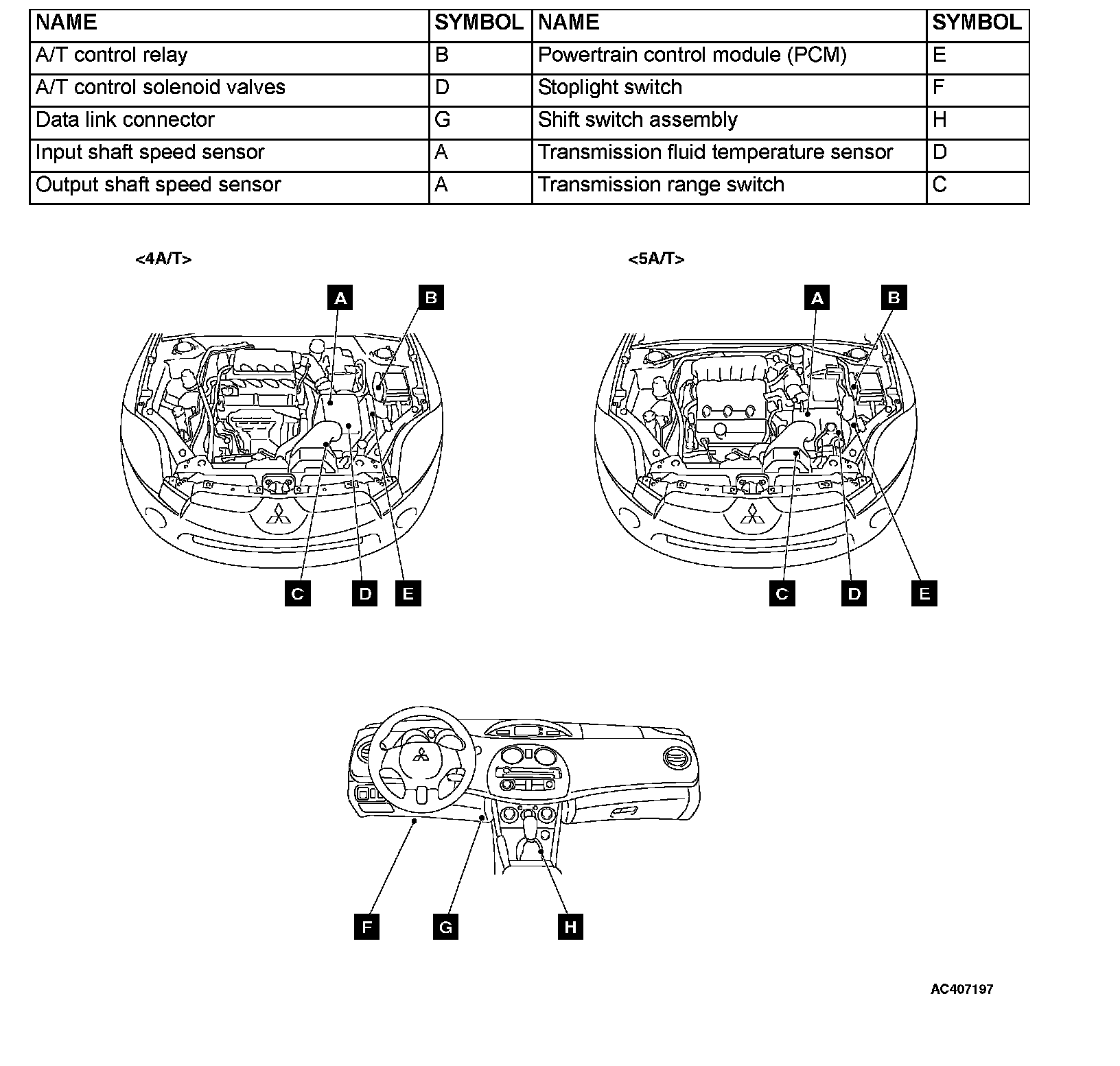

A/T CONTROL COMPONENT LAYOUT / SYMBOLS A-H:

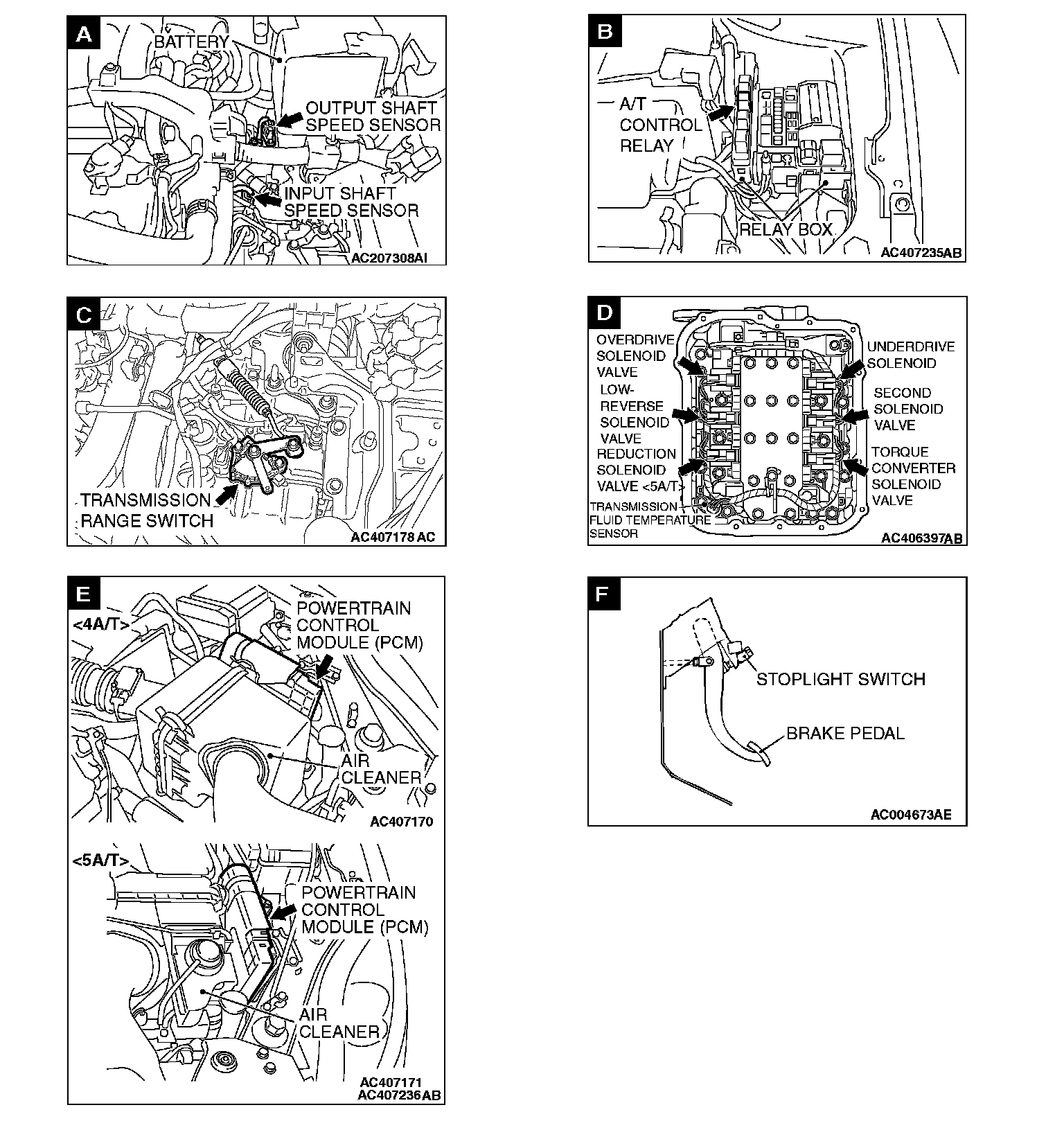

A/T CONTROL COMPONENT LAYOUT / SYMBOLS A-F:

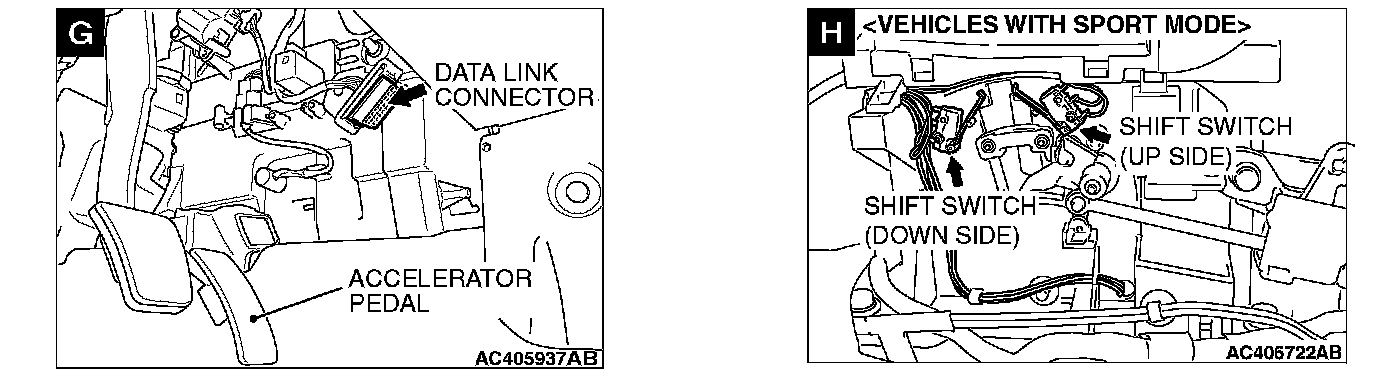

A/T CONTROL COMPONENT LAYOUT / SYMBOLS G-H:

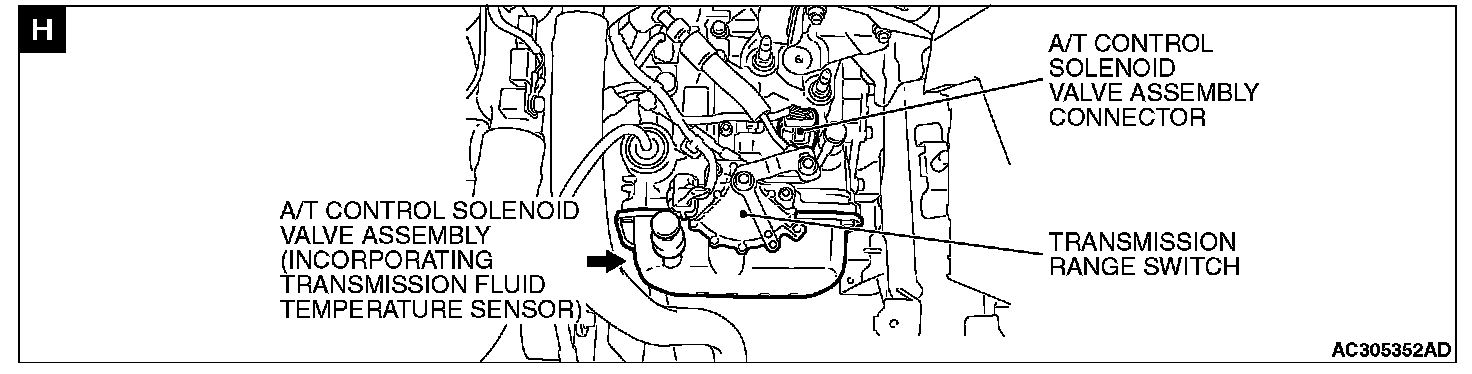

View H:





Overall View:
