Oscilloscope Patterns and Waveforms

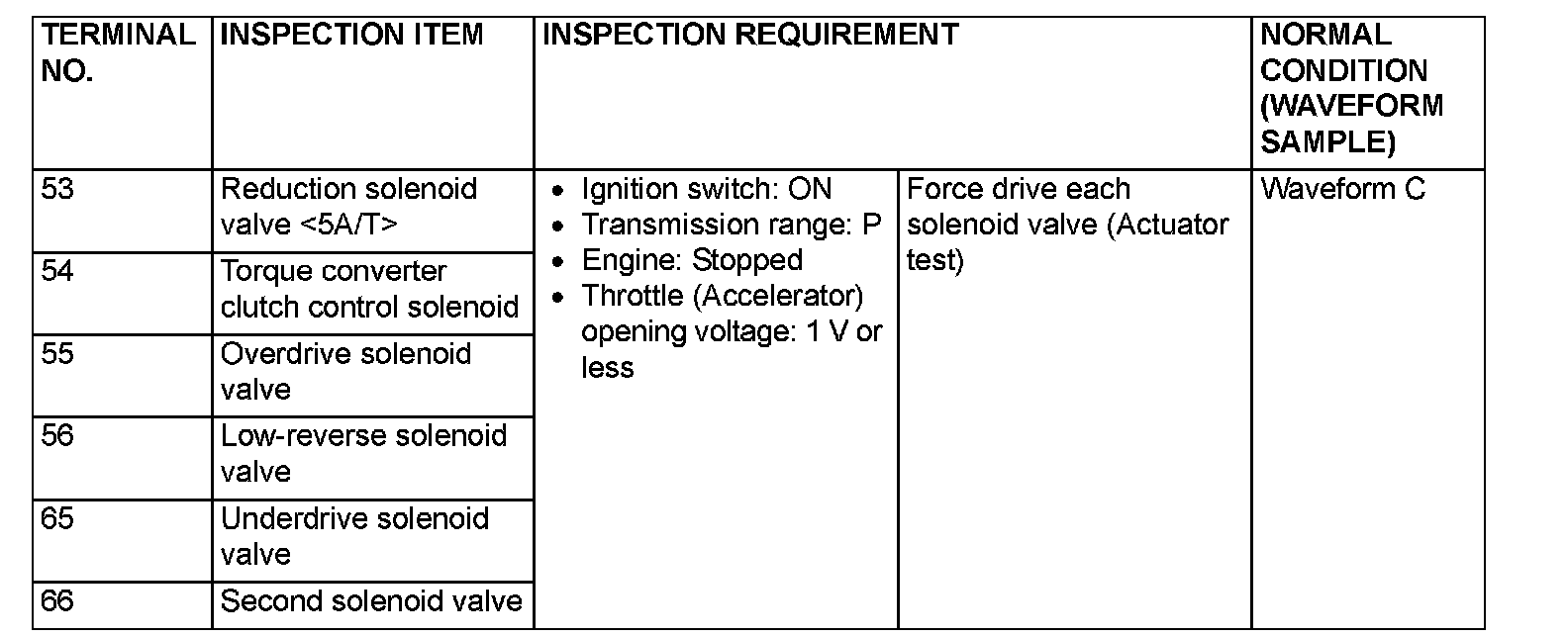

INSPECTION PROCEDURE USING AN OSCILLOSCOPE:

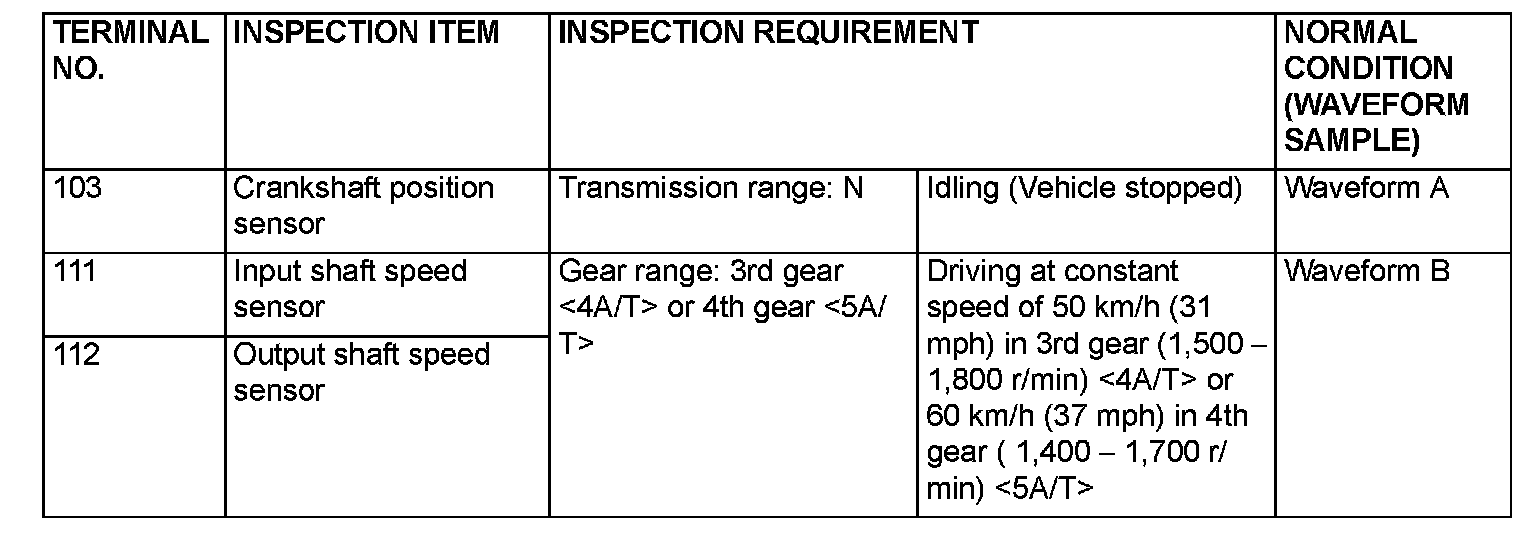

INSPECTION PROCEDURE USING AN OSCILLOSCOPE:

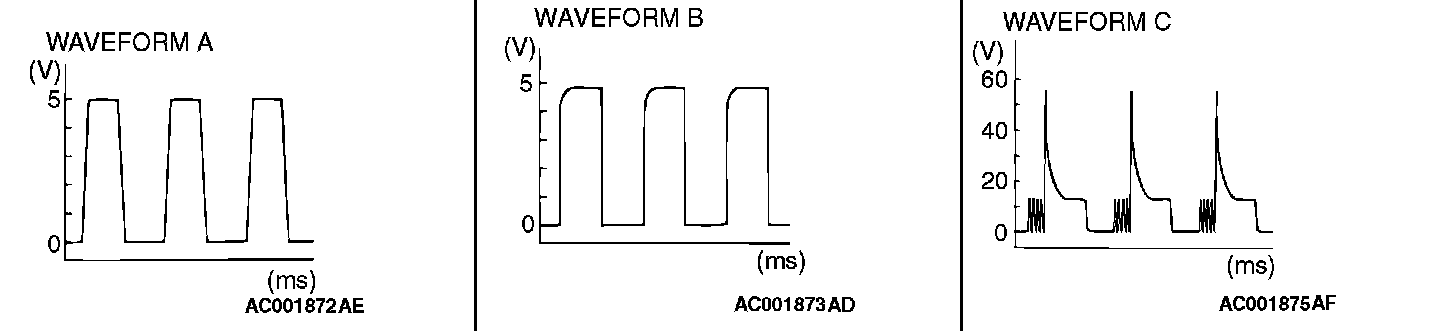

WAVEFORM SAMPLE:
