INSPECTION PROCEDURE 8: Defogger Function Does Not Operate.: Notes

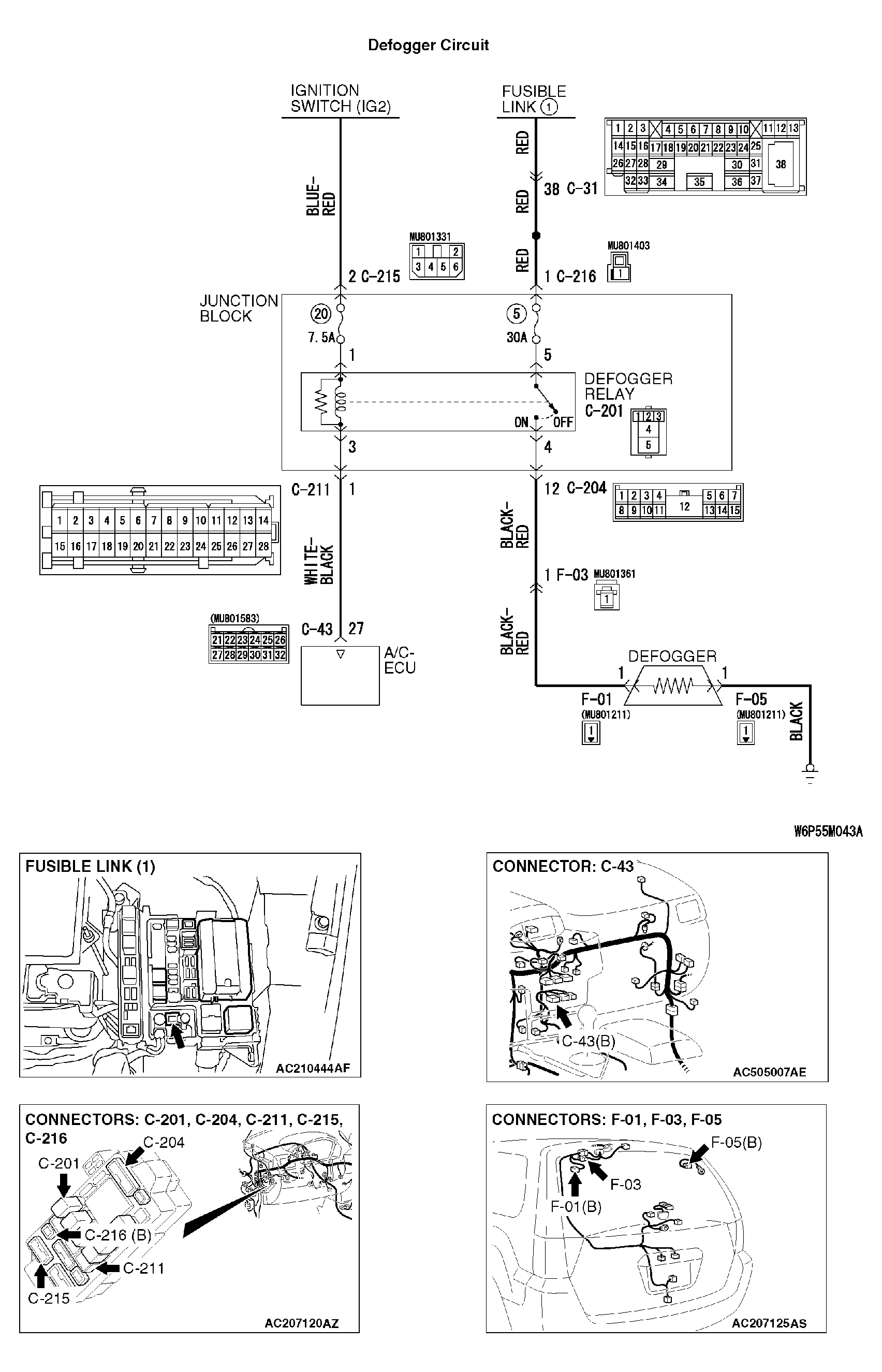

Fig 1: Defogger Circuit Diagram
G04293663Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
