< Air Bag Module (Front Passenger's Side) >

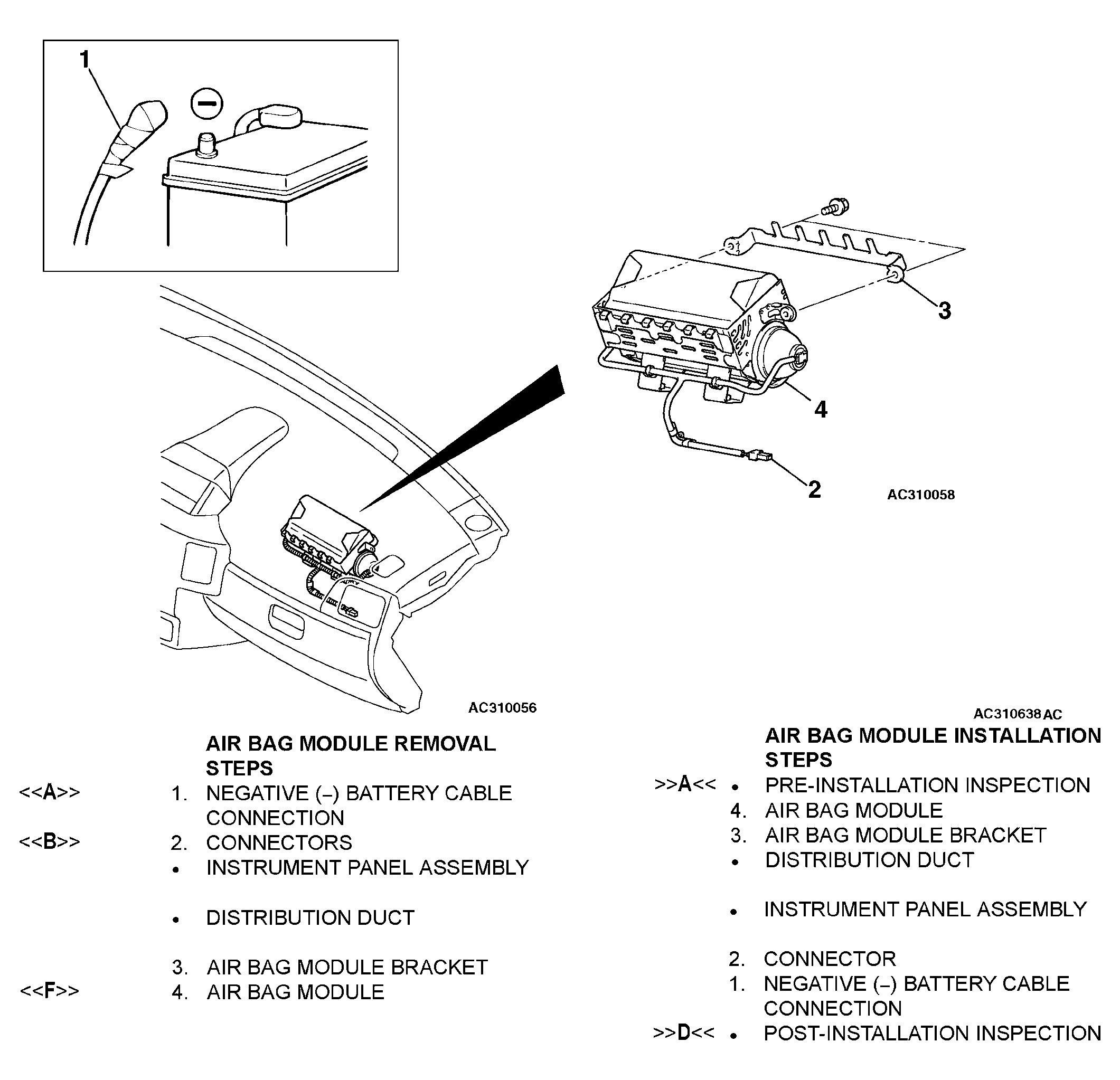

Fig 1: Removing & Installing Air Bag Modules And Clock Spring (Air Bag Module (Front Passenger's Side))

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)
  • MB991824: Vehicle Communication Interface(V.C.I.)
  • MB991827: M.U.T.-III USB Cable
  • MB991910: M.U.T.-III Main Harness A
  • MB992006: Extra Fine Probe
