<< D >> Steering Wheel Assembly Removal

Use special tool MB990803 to remove the steering wheel.

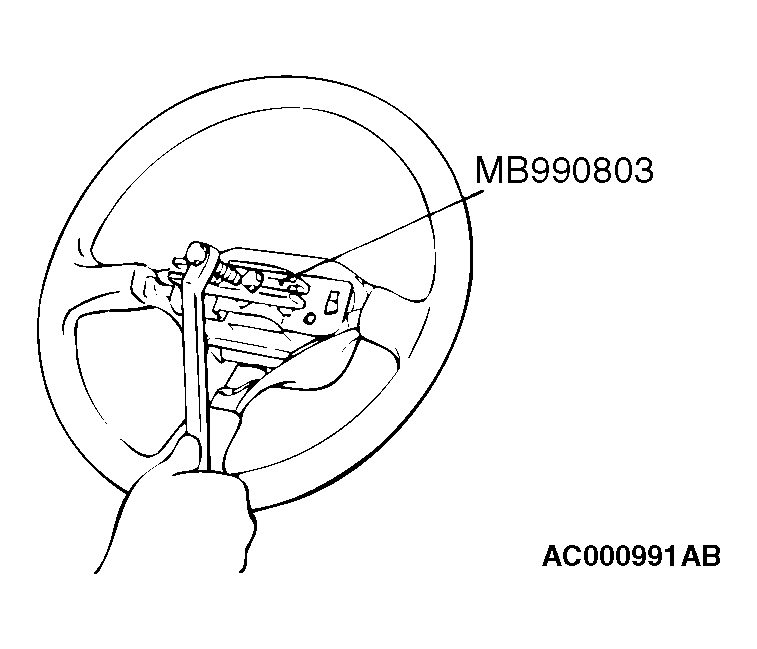

Fig 1: Removing Steering Wheel
G04289299Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
