Front Seatback Assembly (Side-Airbag Module)

  1. Check the air bag module deployment section for dents or deformation.
  2. Check that there is no connector damage, bent terminals or harness crimping.

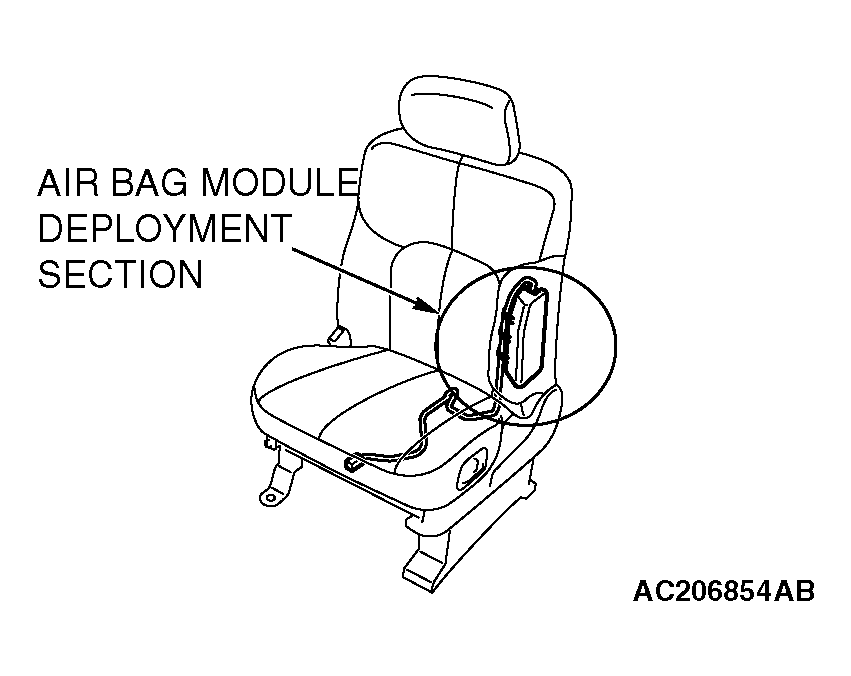

    Fig 1: Identifying Air Bag Module Deployment Section
    G04289263Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
