Special Tools

SPECIAL TOOLS DESCRIPTION

TOOL	TOOL NUMBER AND NAME	SUPERSESSION	APPLICATION

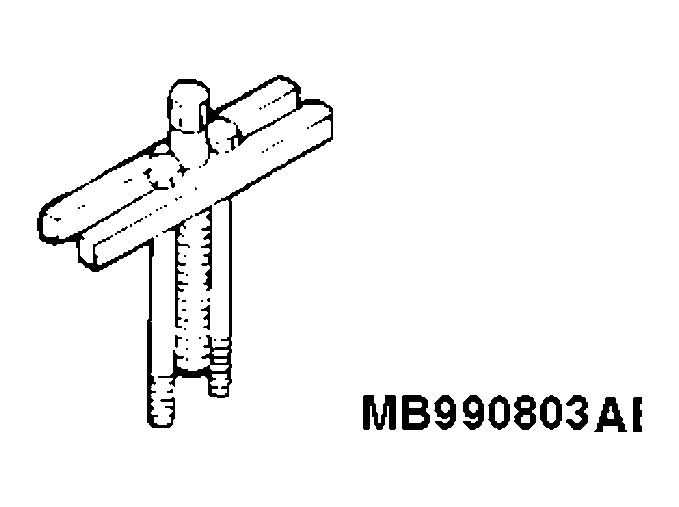

	MB990803 Steering wheel puller	General service tool	Steering wheel removal

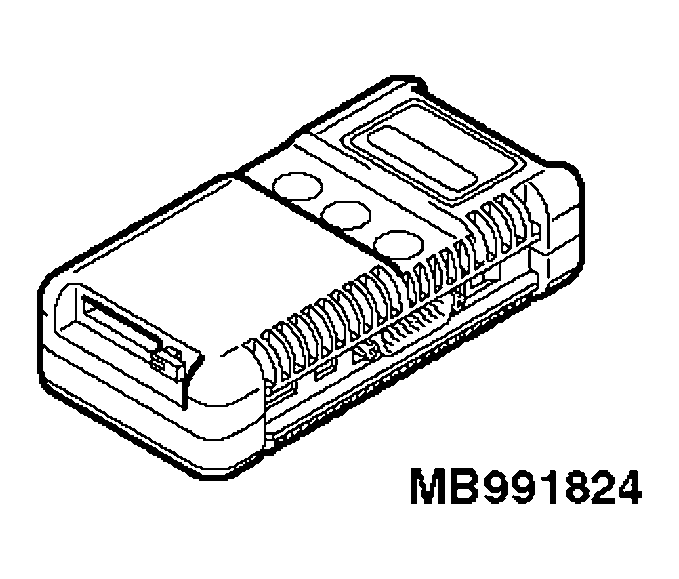

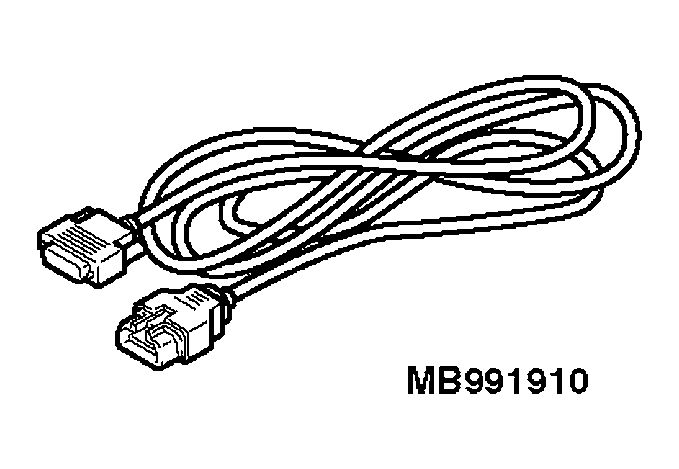

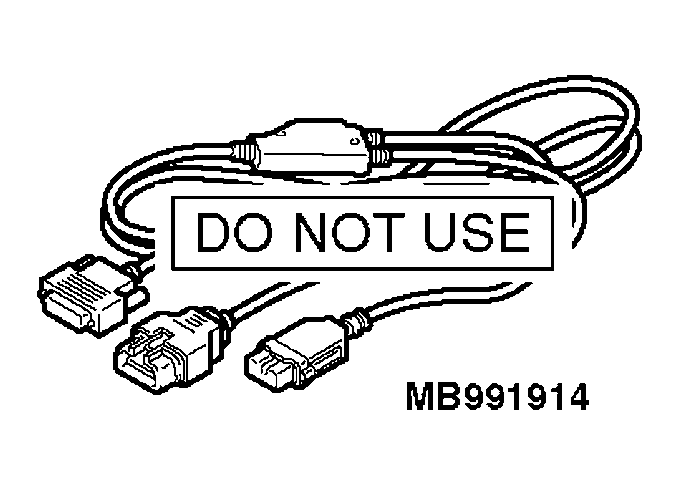

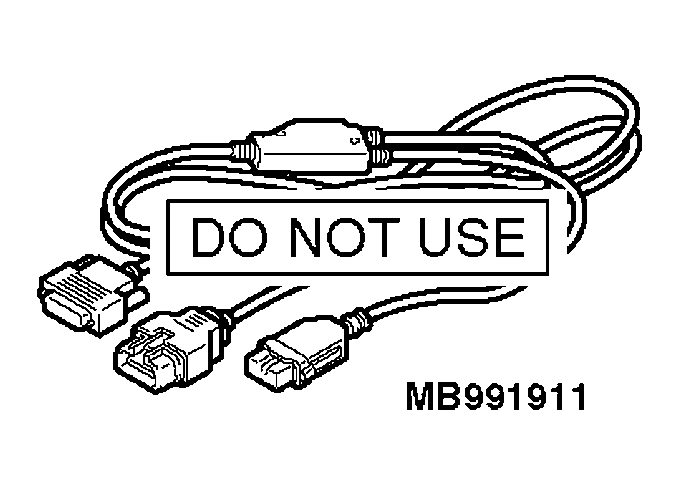

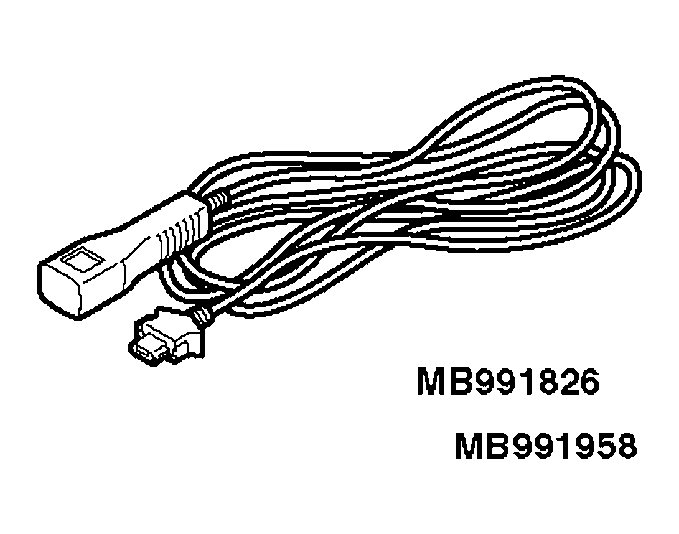

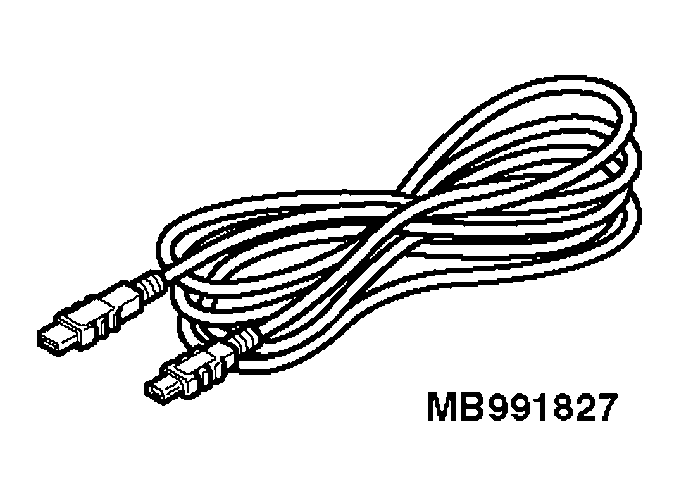

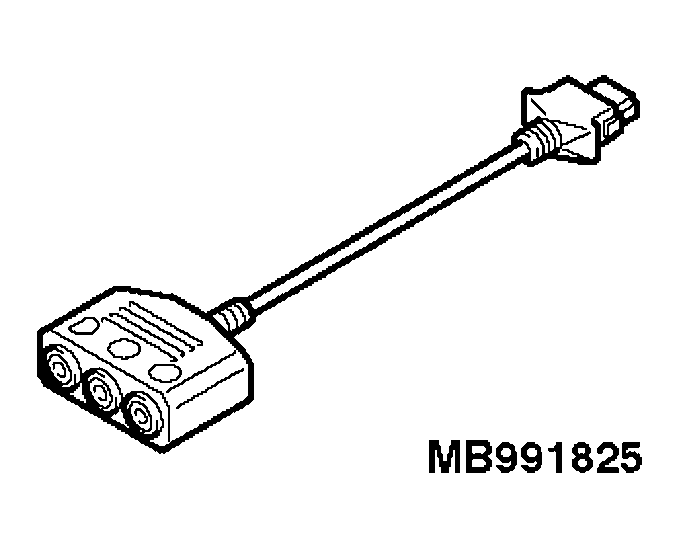

A B C D E F G	MB991958 A: MB991824 B: MB991827 C: MB991910 D: MB991911 E: MB991914 F: MB991825 G: MB991826 M.U.T.-III Sub Assembly A: Vehicle communication interface (V.C.I.) B: M.U.T.-III USB cable C: M.U.T.-III main harness A (Vehicles with CAN communication system) D: M.U.T.-III main harness B (Vehicles without CAN communication system) E: M.U.T.-III main harness C (for Daimler Chrysler models only) F: M.U.T.-III measurement adapter G: M.U.T.-III Trigger Harness	MB991824-KIT NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.	Checking diagnostic trouble code CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.

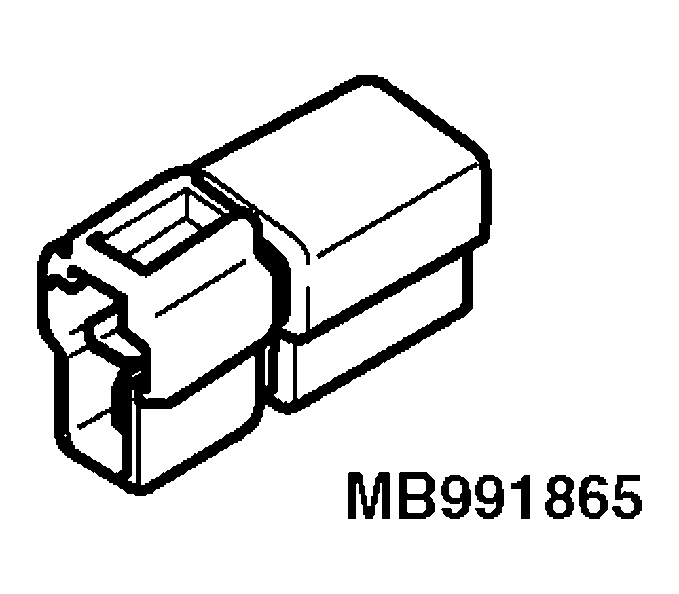

	MB991865	Dummy resistor	SRS air bag and seat belt with pre-tensioner circuit check

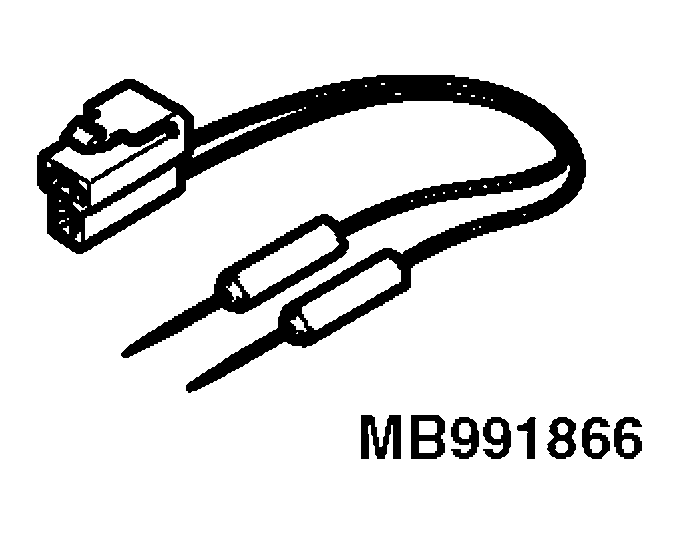

	MB991866	Resistor harness	SRS air bag circuit check

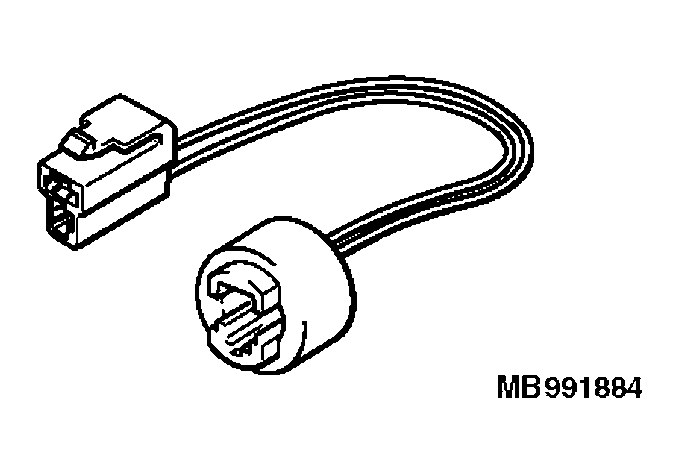

	MB991884	Resistor harness (For Pre-tensioner)	Seat belt with pre-tensioner circuit check

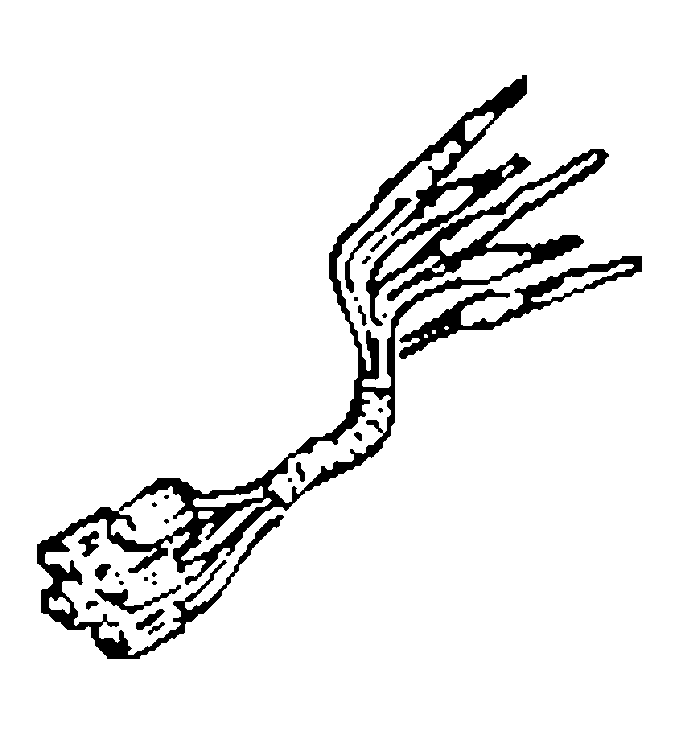

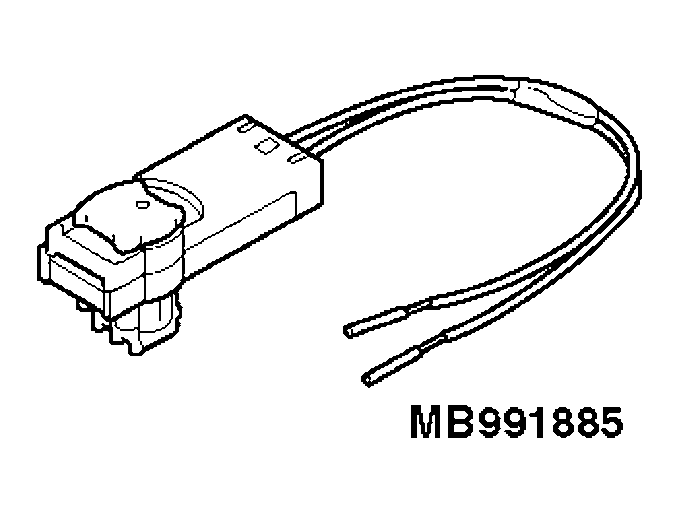

	MB991885	Pretensioner adapter harness	Deployment of seat belt with pre-tensioner inside the vehicle Deployment of seat belt with pre-tensioner outside the vehicle

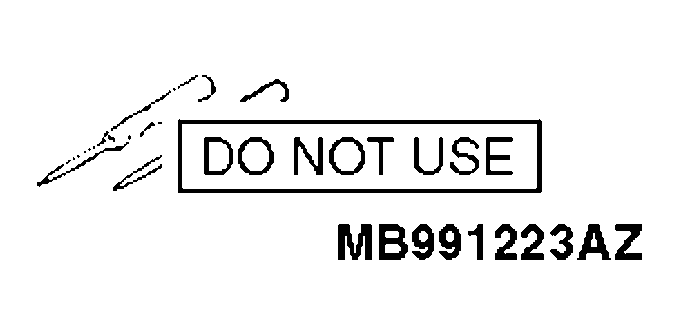

A B C D	MB991223 A: MB991219 B: MB991220 C: MB991221 D: MB991222 Harness set A: Test harness B: LED harness C: LED harness adaptor D: Probe	General service tools	Checking the continuity and measuring the voltage at the SRS-ECU harness connector

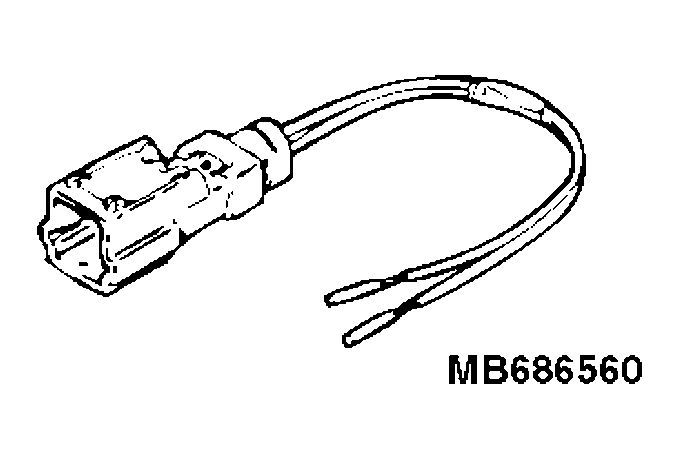

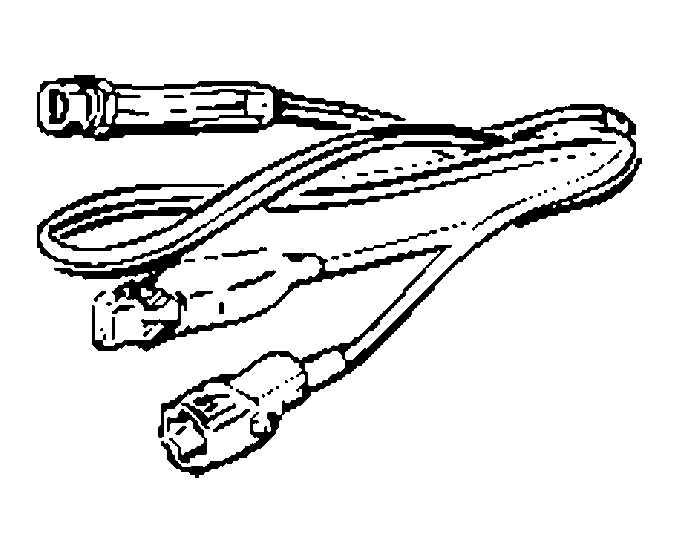

	MB686560 SRS air bag adapter harness	General service tool	Deployment of air bag module (Front passenger's side) inside the vehicle Deployment of air bag module (Front passenger's side) outside the vehicle

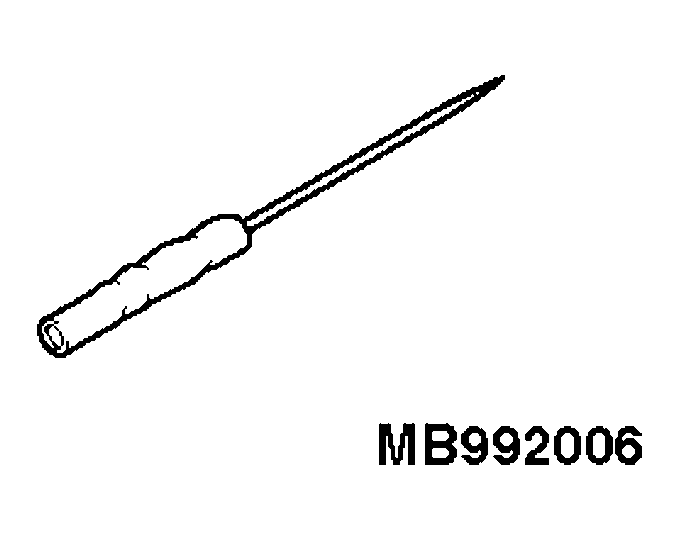

	MB992006 Extra fine probe	-	Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.
