< Air Bag Module (Driver's Side) And Clock Spring >
CAUTION:
On vehicles with ASC, always carry out steering wheel sensor calibration after the clock spring has been installed (Refer to
STEERING WHEEL SENSOR CALIBRATION
). This is necessary because the TCL/ASC-ECU should update the steering neutral point.

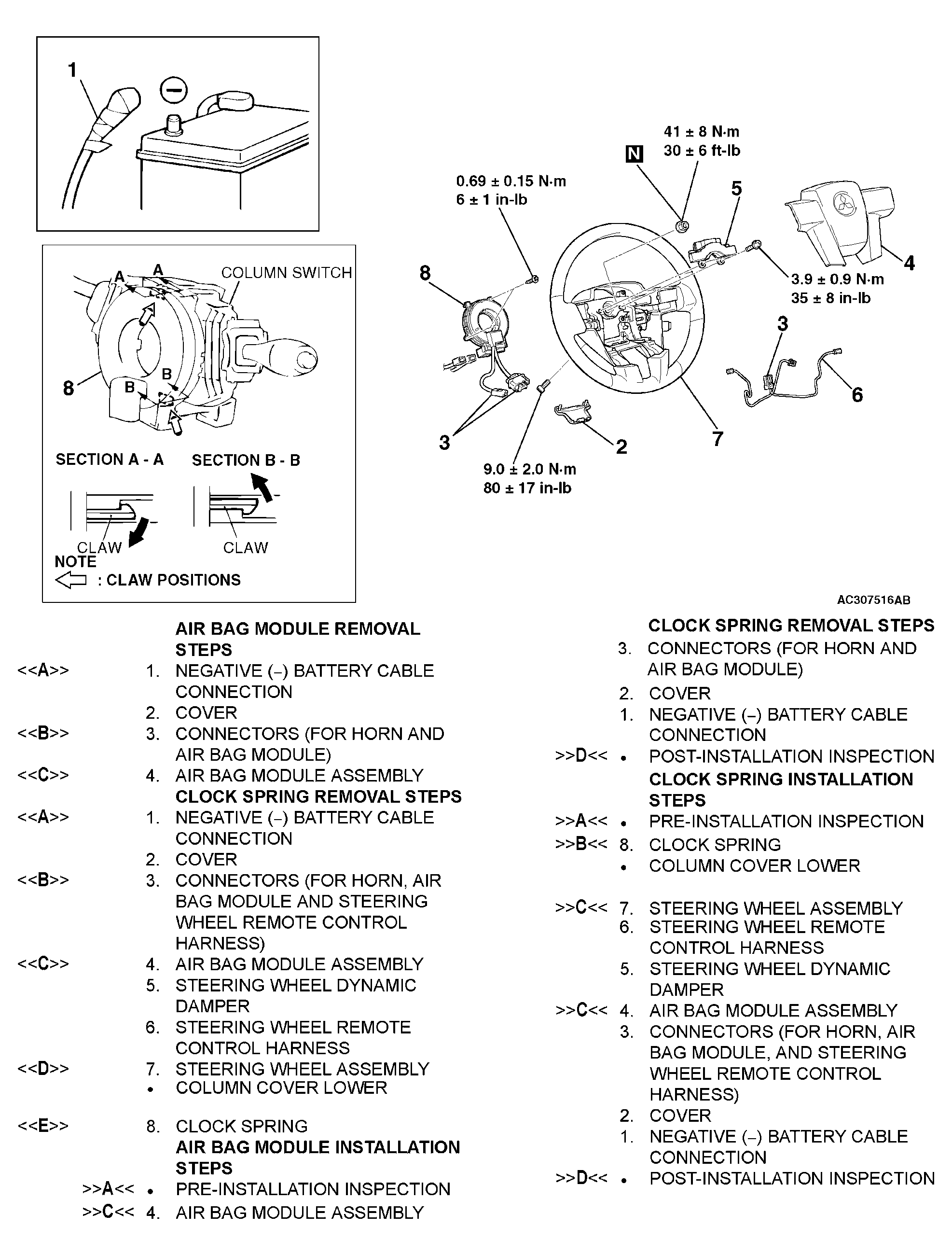

Fig 1: Removing And Installing Air Bag Modules And Clock Spring (Air Bag Module (Driver's Side) And Clock Spring) With Torque Specifications
Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824:Vehicle Communication Interface(V.C.I.)
- MB991827:M.U.T.-III USB Cable
- MB991910:M.U.T.-III Main Harness A
- MB991222: Probe
- MB990803: Steering Wheel Puller
