Configuration Diagrams

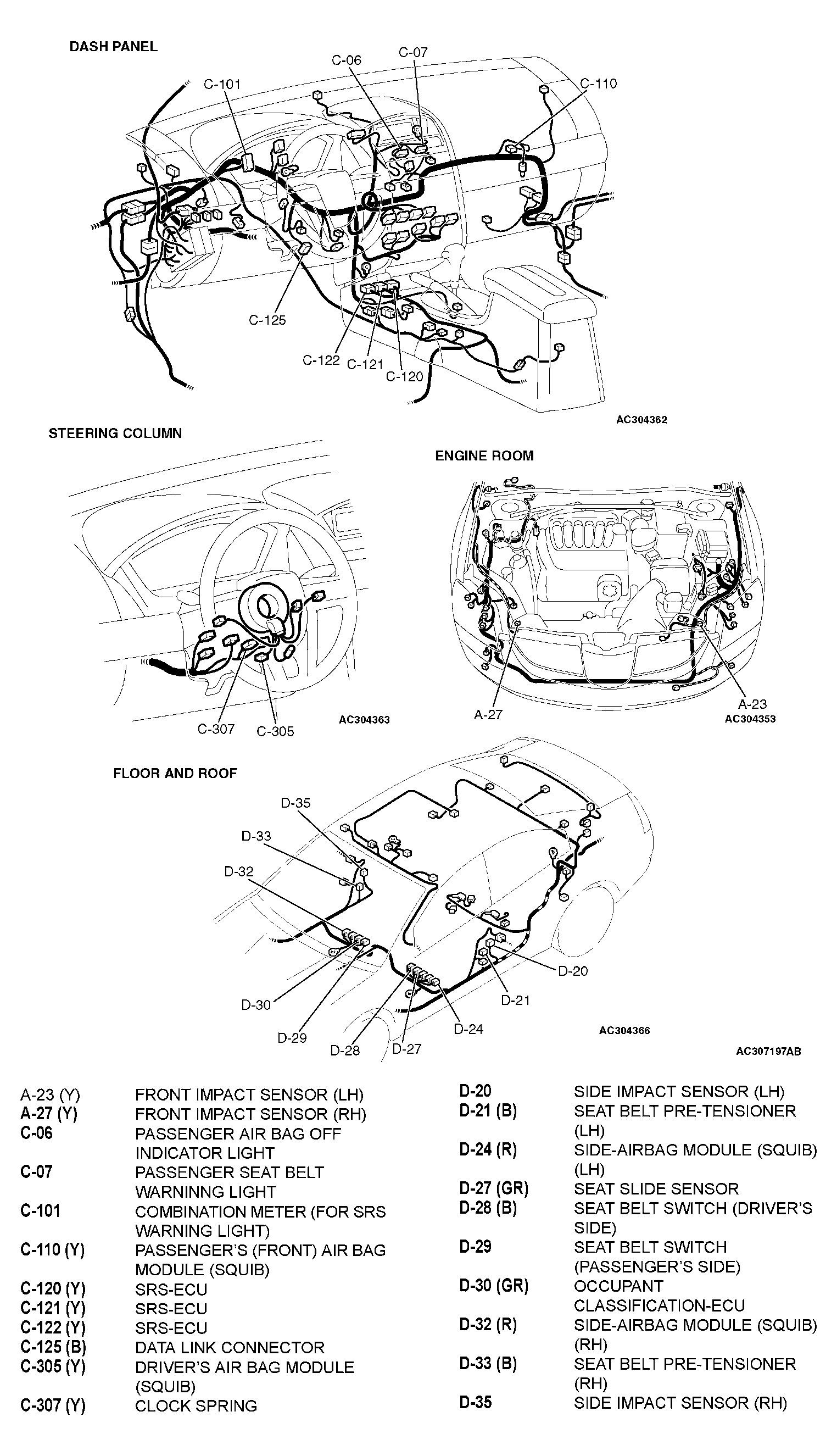

Fig 1: Identifying Connectors (Configuration Diagrams)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
