Supplemental Restraint System: General Description: Schematic

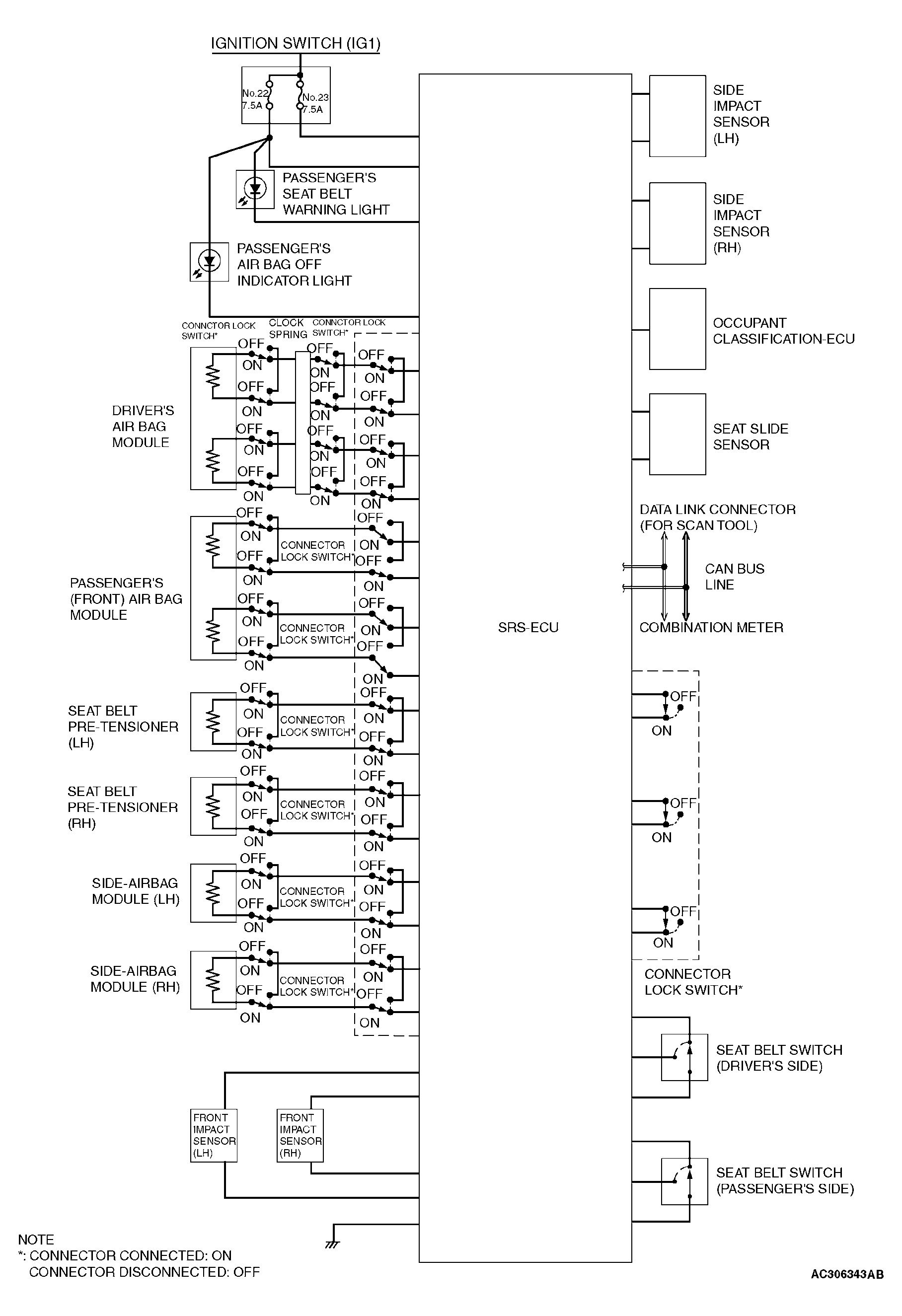

Fig 1: Schematic - SRS Diagram
G04255851Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
