Warning/Caution Labels

A number of caution labels related to the SRS are found in the vehicle, as shown in the following illustrations. Follow label instructions when servicing SRS. If the other labels are dirty or damaged, replace them.

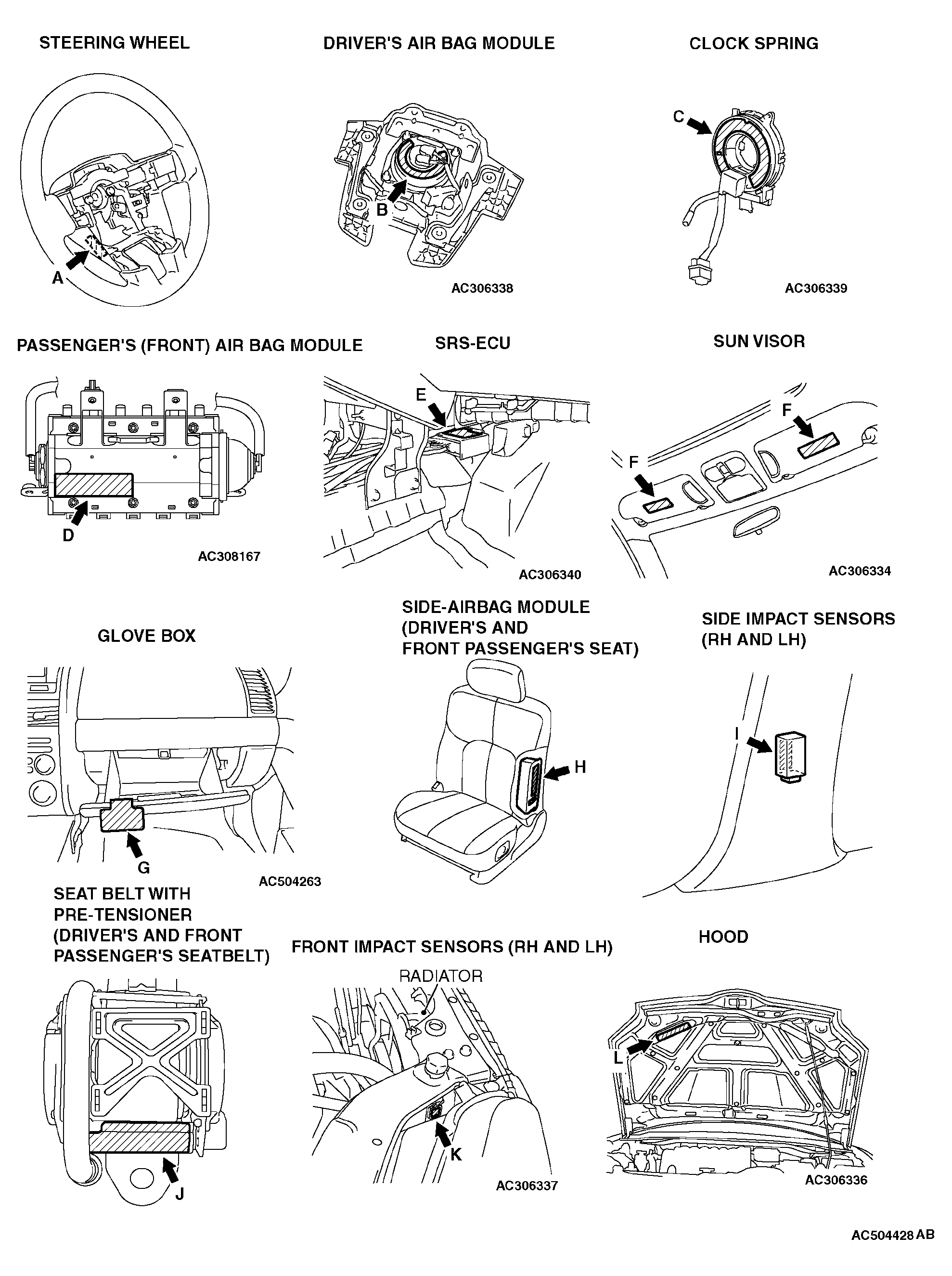

Fig 1: Identifying SRS Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

LABEL CONTENTS
A	WARNING: SRS BEFORE REPLACING STEERING WHEEL, READ SERVICE MANUAL, CENTER FRONT WHEELS AND ALIGN SRS CLOCK SPRING NEUTRAL MARKS. FAILURE TO DO SO MAY RENDER SRS SYSTEM INOPERATIVE, RISKING SERIOUS DRIVER INJURY. THE AIR BAG MODULE CAN NOT BE REPAIRED. DO NOT DISASSEMBLE OR TAMPER. DO NOT PERFORM DIAGNOSIS. DO NOT TOUCH WITH ELECTRICAL TEST EQUIPMENT OR PROBES. REFER TO SERVICE MANUAL FOR FURTHER INSTRUCTIONS, AND FOR SPECIAL HANDLING, STORAGE AND DISPOSAL PROCEDURES. TAMPERING OR MISHANDLING CAN RESULT IN INJURY.
B	WARNING: : FLAMMABLE MATERIAL TO PREVENT PERSONAL INJURY, DO NOT DISMANTLE, INCINERATE, OR BRING INTO CONTACT WITH ELECTRICITY STORE BELOW 200°F(93°C). READ SERVICE MANUAL FOR DETAIL.
C	CAUTION: SRS CLOCKSPRING THIS IS NOT A REPAIRABLE PART. IF DEFECTIVE REPLACE ENTIRE UNIT ACCORDING TO THE SERVICE MANUAL INSTRUCTIONS. TO RE-CENTER: ROTATE CLOCKWISE UNTIL TIGHT. THEN ROTATE IN OPPOSITE DIRECTION ROUGHLY 3 3/4 TURNS AND ALIGN ARROWS.
D, H	WARNING: FLAMMABLE/EXPLOSIVE SRS AIR BAG MODULE TO AVOID SERIOUS INJURY: DO NOT REPAIR, DISASSEMBLE OR TAMPER. AVOID CONTACT WITH FLAME OR ELECTRICITY. DO NOT DIAGNOSIS/USE NO TEST EQPT OR PROBES. STORE BELOW 200°F (93°C). BEFORE DOING ANY WORK INVOLVING MODULE, READ SERVICE MANUAL FOR IMPORTANT FURTHER DATA.
E, I	CAUTION: DO NOT DISASSEMBLE OR DROP. IF DEFECTIVE REFER TO SERVICE MANUAL .

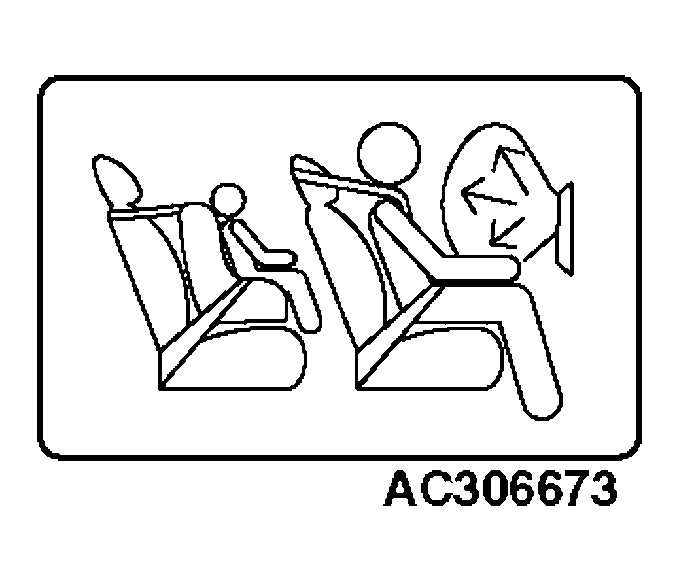

F	WARNING: EVEN WITH ADVANCED AIR BAGS Children can be killed or seriously injured by the air bag The back seat is the safest place for children Never put a rear-facing child seat in the front Always use seat belts and child restraints See owner's manual for more information about air bags
G	This Vehicle is Equipped with Advanced Air Bags Even with Advanced Air Bags Children can be killed or seriously injured by the air bag. The back seat is the safest place for children. Never put a rear-facing child seat in the front. Always use seat belts and child restraints. See owner's manual for more information about air bags. No to be removed except by owner.
J	WARNING: : SEAT BELT PRETENSIONER CAUTION: THIS ASSEMBLY CONTAINS AN EXPLOSIVE INITIATOR FLAMMABLE MATERIAL TO PREVENT PERSONAL INJURY DO NOT IMPACT, DISMANTLE OR INSTALL IT INTO ANOTHER VEHICLE. SERVICE OR DISPOSE OF IT AS DIRECTED IN THE REPAIR MANUAL.
K	CAUTION: DO NOT DISASSEMBLE OR DROP.
L	WARNING: THIS VEHICLE HAS AN AIR BAG SYSTEM. REFER TO SERVICE MANUAL BEFORE SERVICING OR DISASSEMBLING UNDERHOOD COMPONENTS. READ THE "SRS" SECTION OF MANUAL FOR IMPORTANT INSTRUCTIONS. IMPROPER SERVICE PROCEDURES CAN RESULT IN THE AIR BAG FIRING OR BECOMING INOPERATIVE, POSSIBLY LEADING TO INJURY.
