DTC B1421: Side-Airbag Module (RH) (Squib) System Fault 2 (Open in the Squib Circuit): Notes

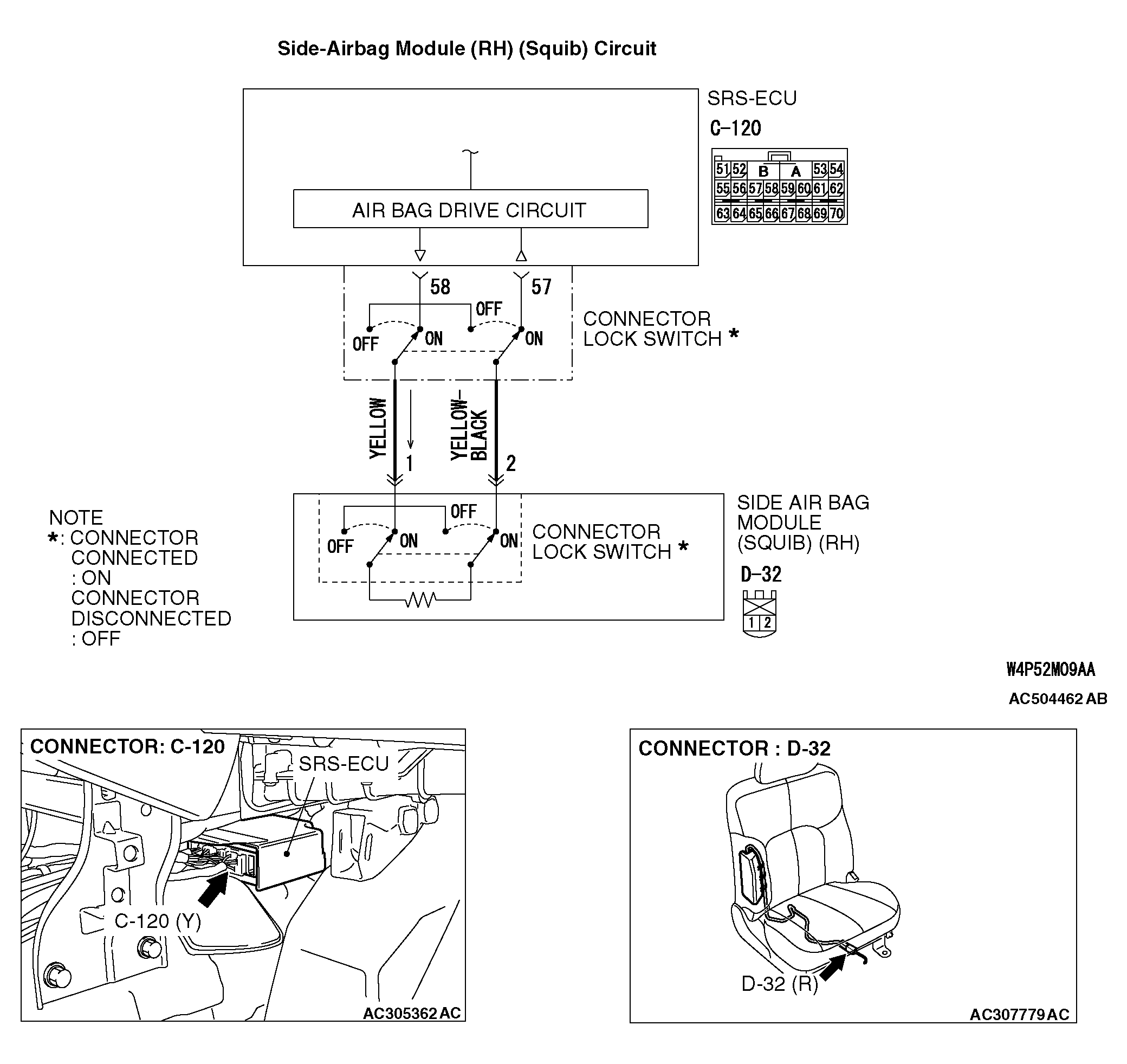

Fig 1: Side-Airbag Module (RH) (Squib) Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1421 is set in the SRS-ECU, always diagnose the CAN bus lines.
