INSPECTION PROCEDURE 1: Communication between Scan Tool and the SRS-ECU is not possible.: Notes

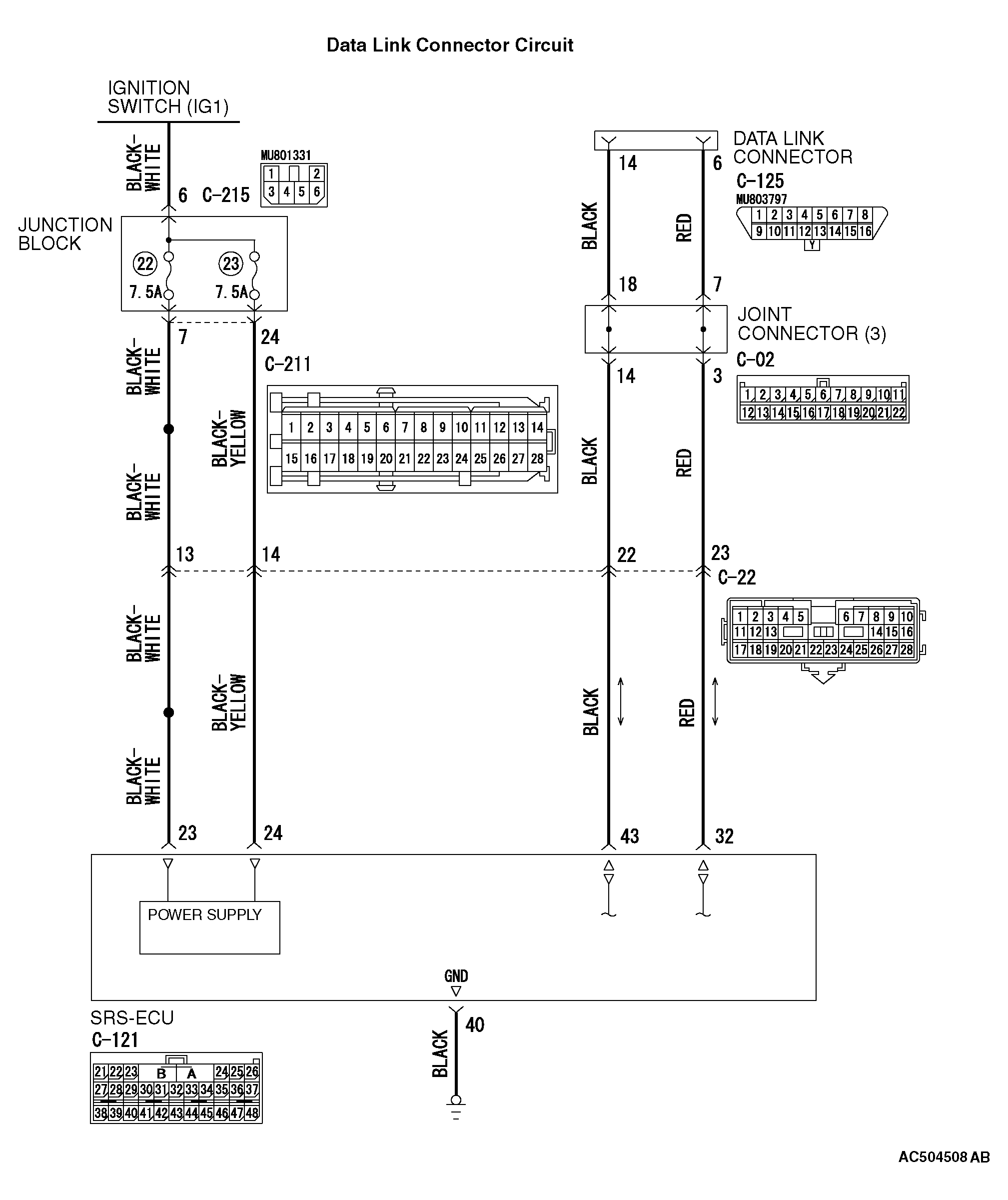

Fig 1: Data Link Connector Circuit
G04256462Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
