Special Tools

SPECIAL TOOLS

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
G04256474

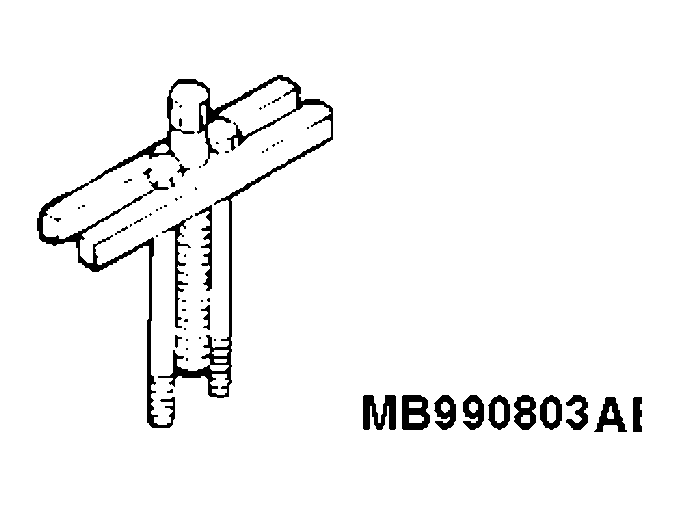

 MB990803
Steering wheel puller		 General service tool Steering wheel removal
A
G04256475G04256476G04256477G04256478G04256479G04256480G04256481

B
G04256475G04256476G04256477G04256478G04256479G04256480G04256481

C
G04256475G04256476G04256477G04256478G04256479G04256480G04256481

D
G04256475G04256476G04256477G04256478G04256479G04256480G04256481

E
G04256475G04256476G04256477G04256478G04256479G04256480G04256481

F
G04256475G04256476G04256477G04256478G04256479G04256480G04256481

G
G04256475G04256476G04256477G04256478G04256479G04256480G04256481
 MB991958
  1. : MB991824

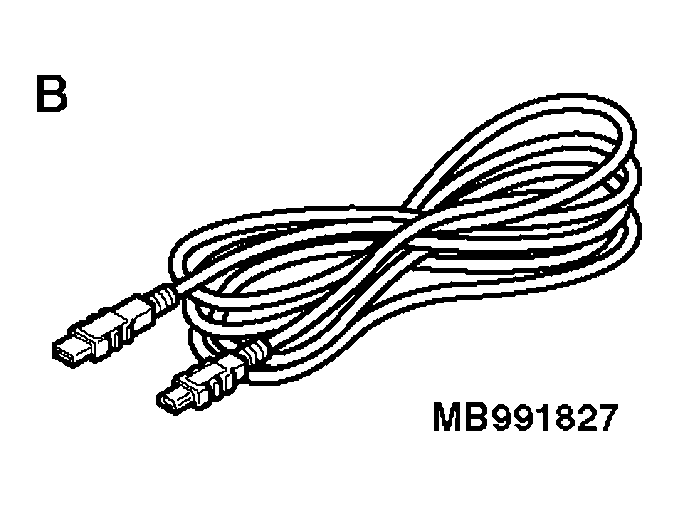

  2. : MB991827
  3. : MB991910

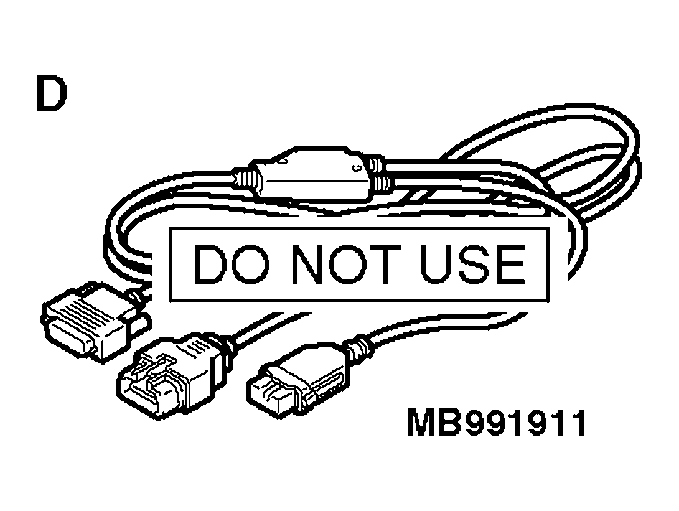

  4. : MB991911

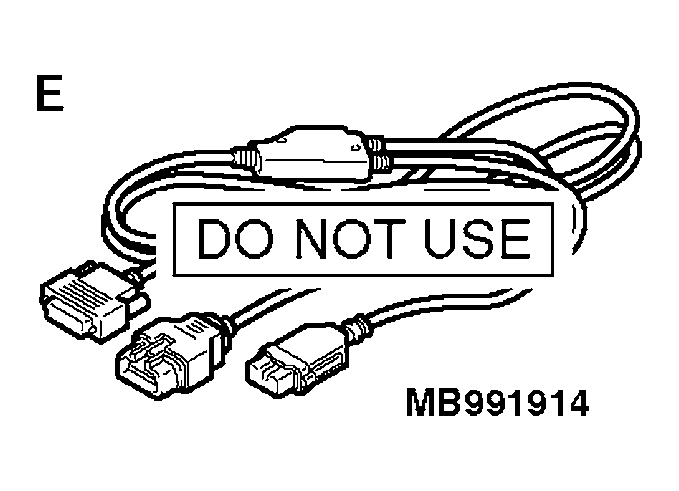

  5. : MB991914
  6. : MB991825

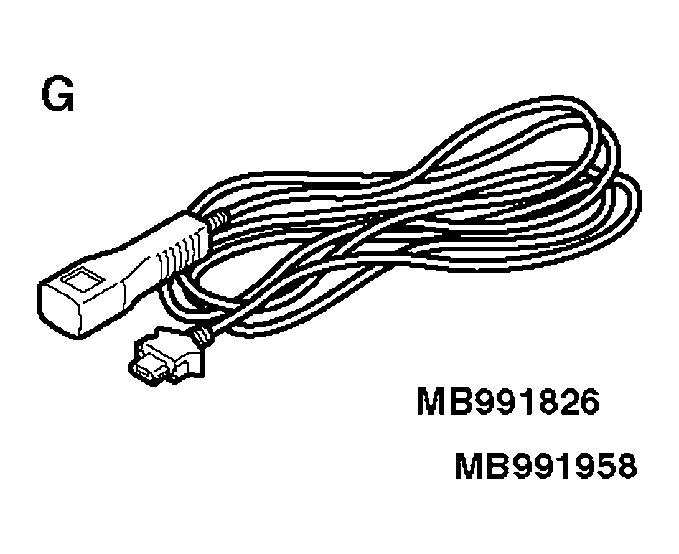

  7. : MB991826

Scan tool (M.U.T.-III sub assembly)

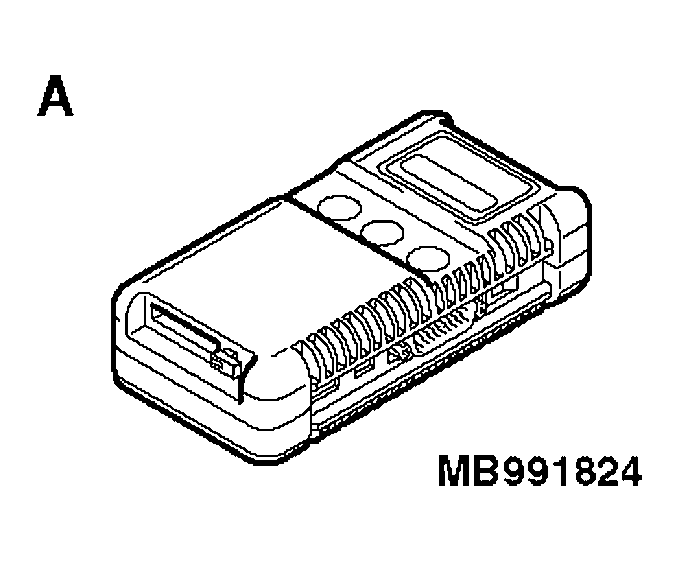

  1. : Vehicle communication interface (V. C. I.)
  2. : M.U.T.-III USB cable

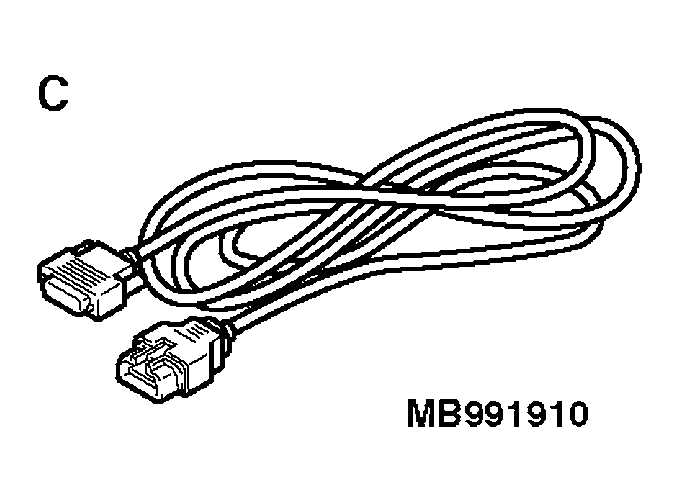

  3. : M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. : M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. : M.U.T.-III main harness C (for Daimler Chrysler models only)

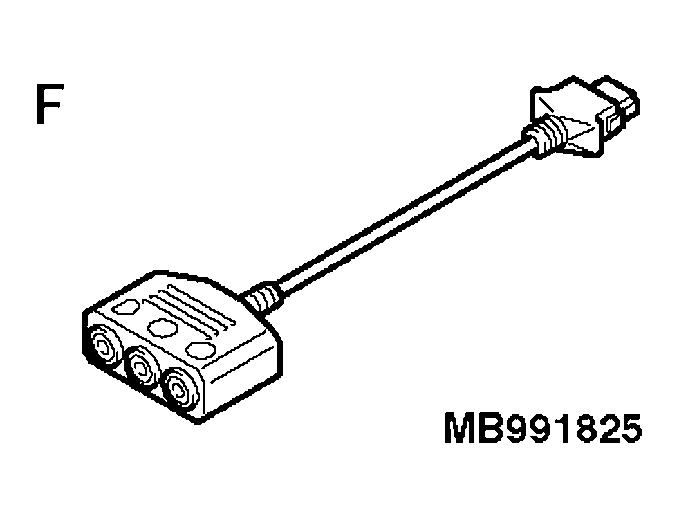

  6. : M.U.T.-III measurement adapter
  7. : M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
 Checking diagnostic trouble code
CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
G04256482

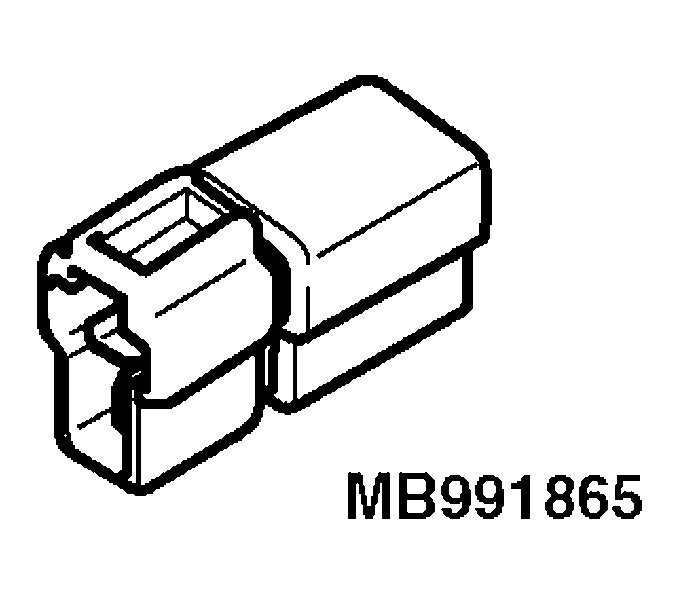

 MB991865
Dummy resistor		 - SRS air bag and seat belt with pre-tensioner circuit check
G04256483

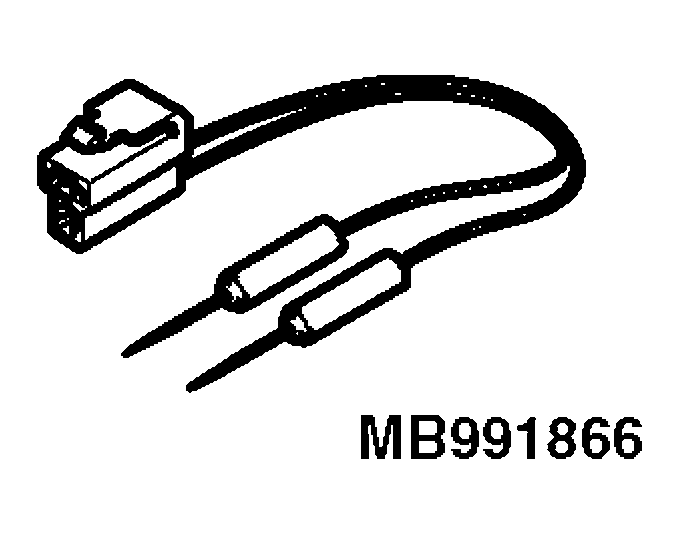

 MB991866 Resistor harness - SRS air bag circuit check
G04256484

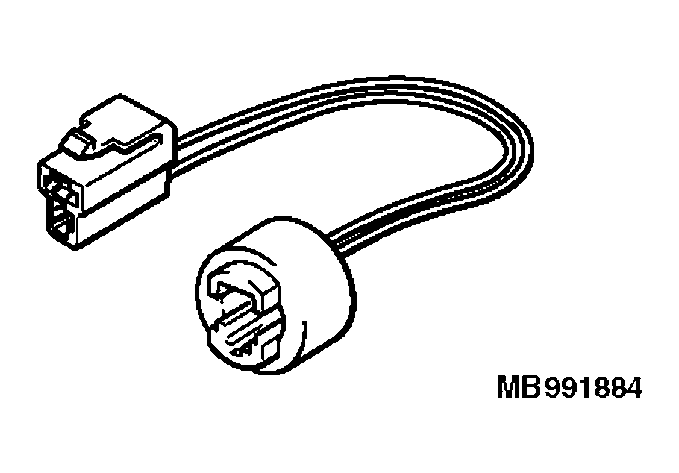

 MB991884 Resistor harness (For Pre-tensioner) Seat belt with pre-tensioner circuit check
G04256485

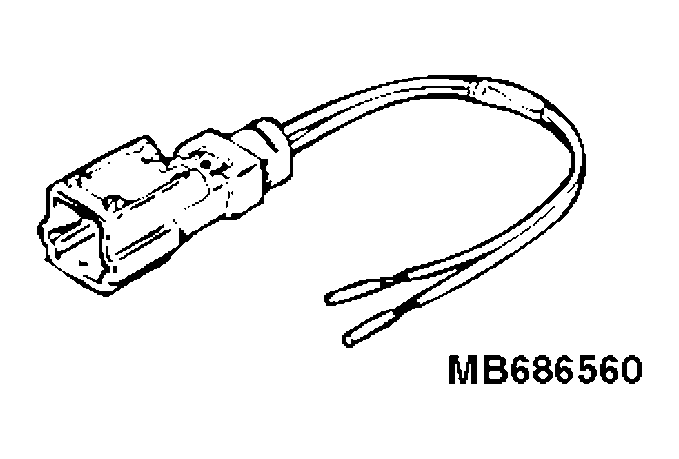

 MB686560 SRS air bag adapter harness General service tool
  • Deployment of side-airbag module inside the vehicle
  • Deployment of side-airbag module outside the vehicle
G04256486

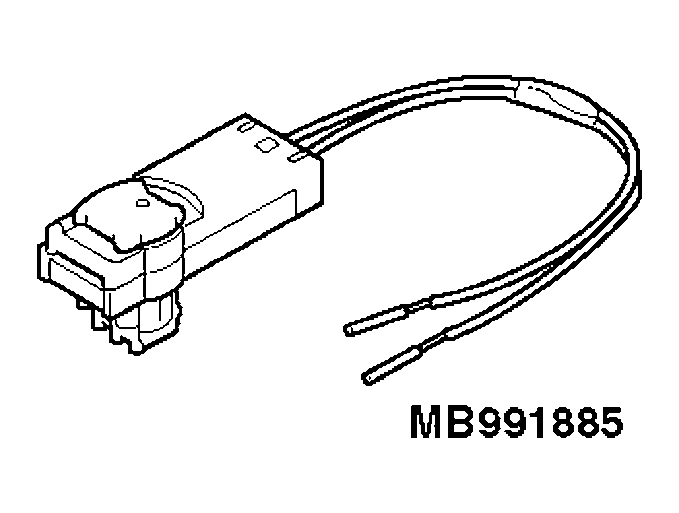

 MB991885 Pre-tensioner adapter harness
  • Deployment of seat belt with pre-tensioner inside the vehicle
  • Deployment of seat belt with pre-tensioner outside the vehicle
G04256487

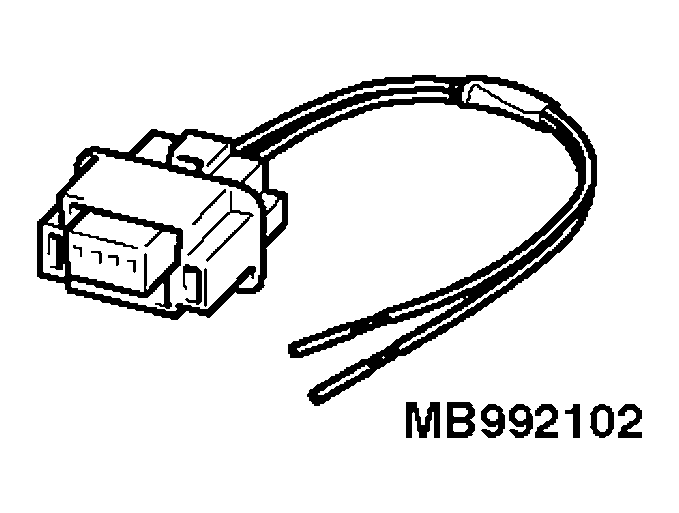

 MB992102 Air bag inflation adapter harness Deployment of driver's air bag module outside the vehicle
G04256488

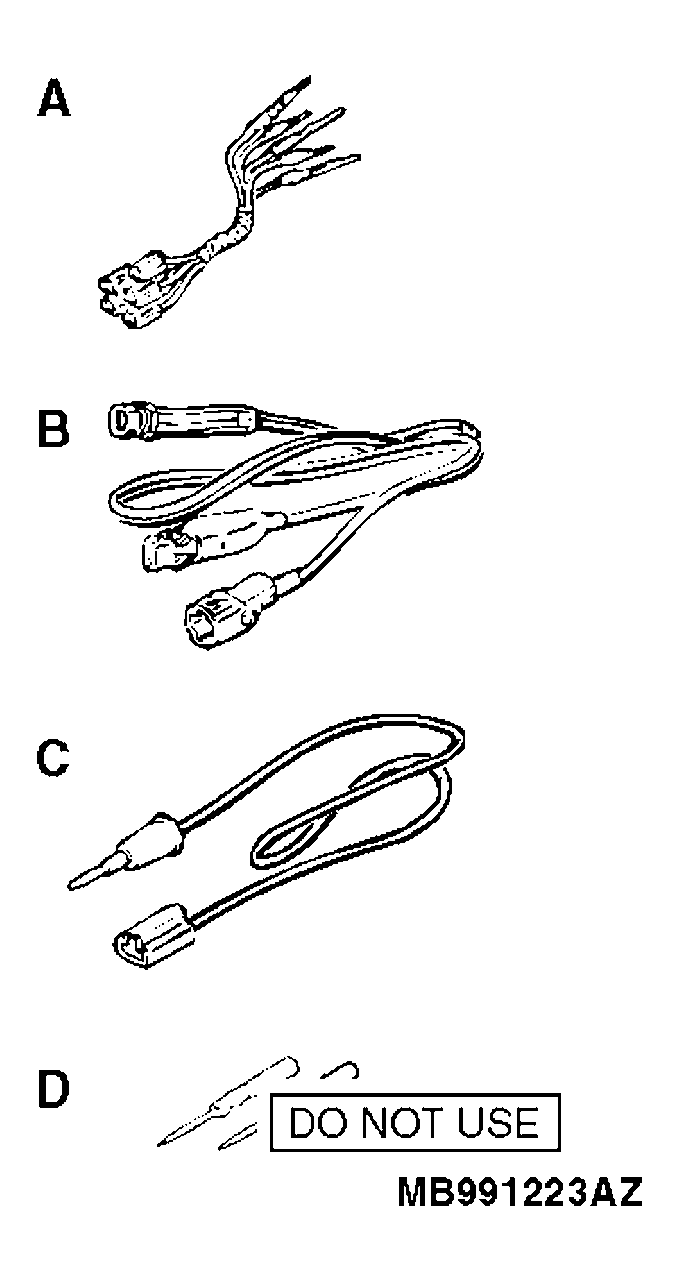

 MB991223
  1. : MB991219
  2. : MB991220
  3. : MB991221
  4. : MB991222

Harness set
  1. : Test harness
  2. : LED harness
  3. : LED harness adaptor
  4. : Probe
 General service tools Checking the continuity and measuring the voltage at the SRS-ECU harness connector
G04256489

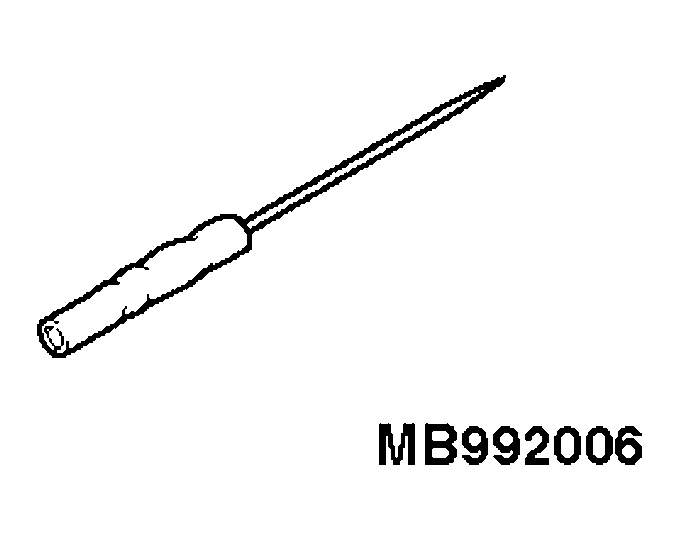

 MB992006
Extra fine probe		 General service tool Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.
