Removal And Installation: Notes

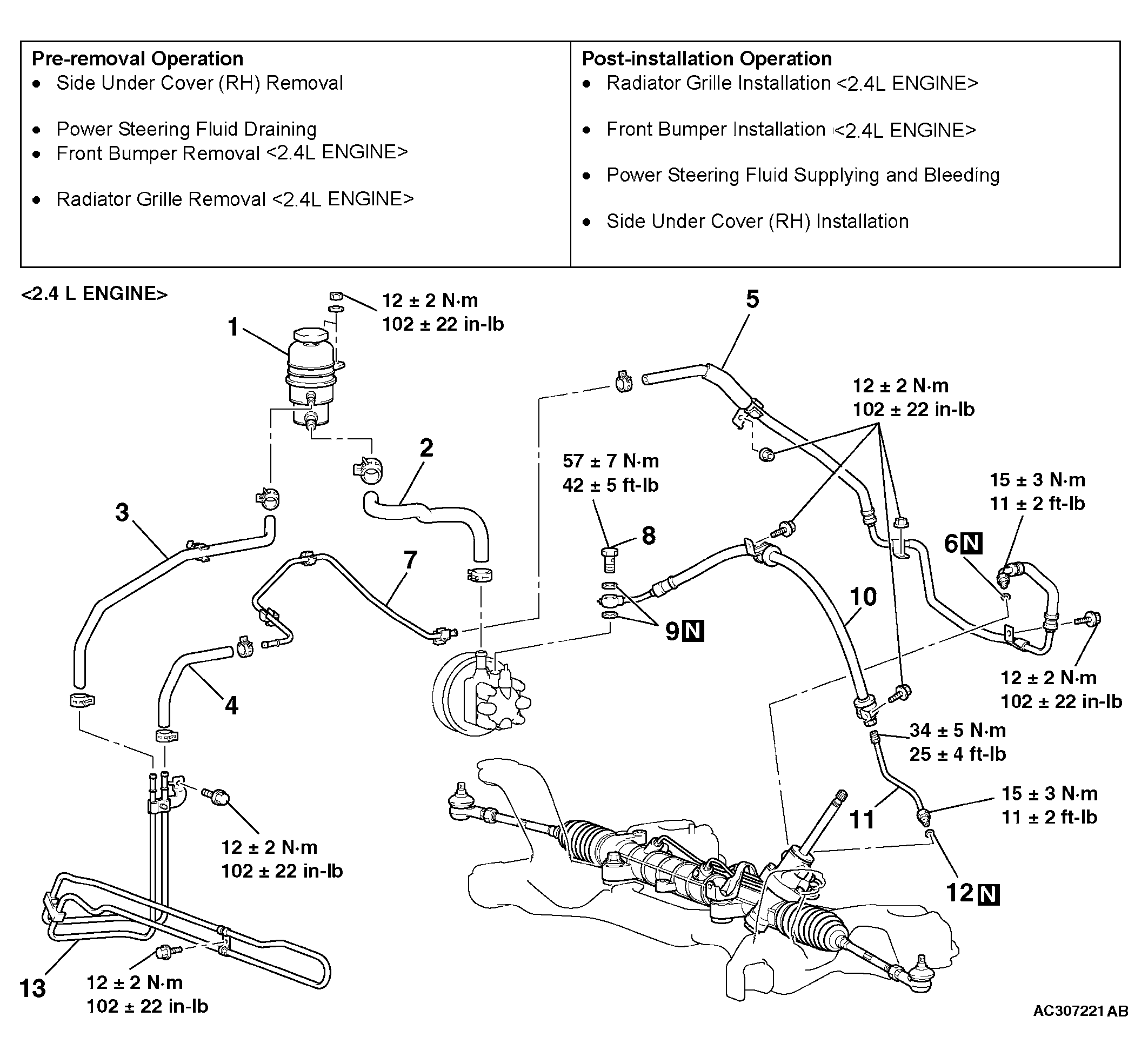

Fig 1: Removing/Installing Power Steering Hoses (2.4L Engine)
G04255588Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

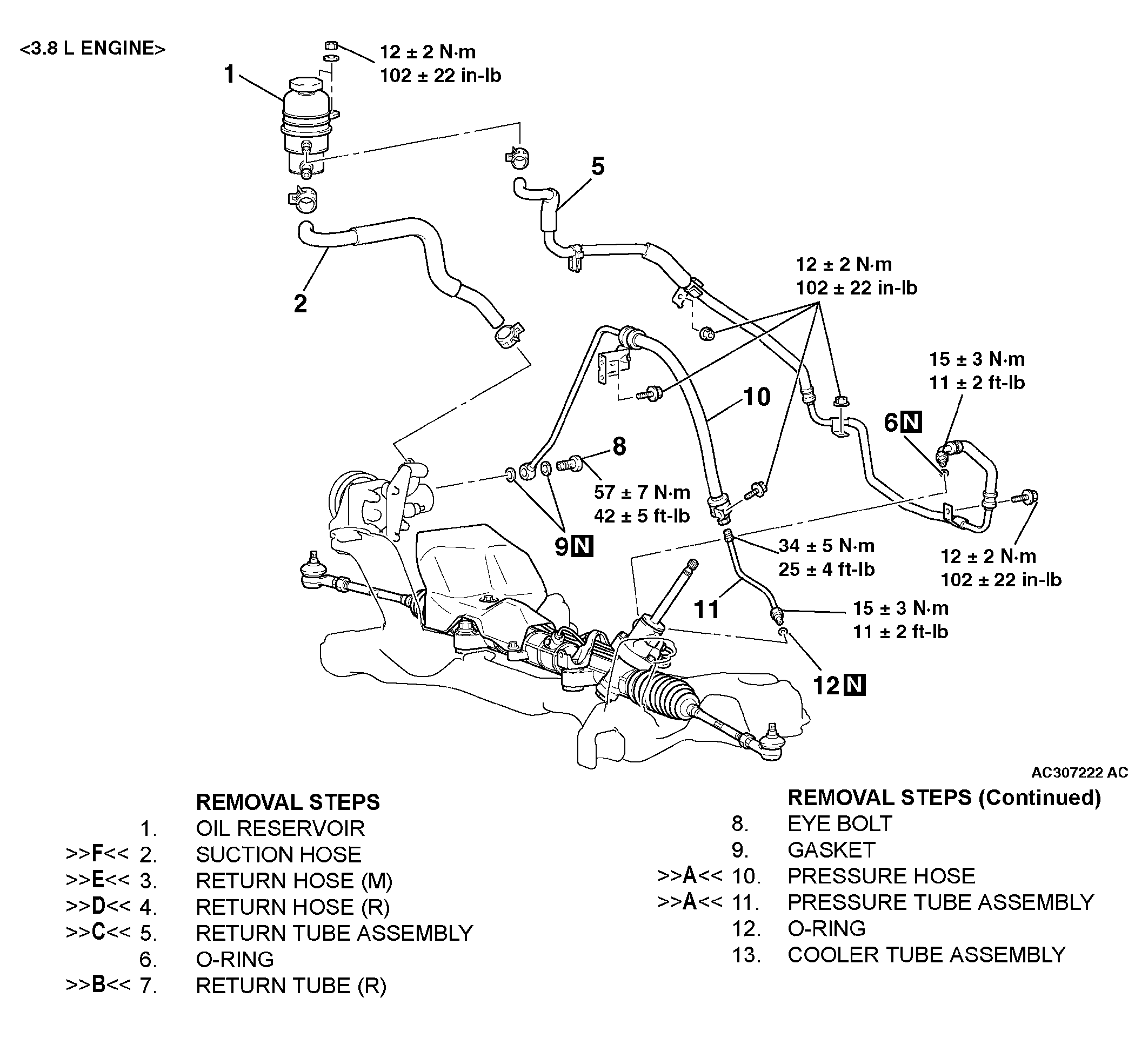

Fig 2: Removing/Installing Power Steering Hoses (3.8L Engine)
G04255589Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
