TCL Switch Check

  1. Remove the TCL switch. (Refer to TCL SWITCH  ).
  2. Measure the resistance between terminal 1 and terminal 2 when the TCL switch is pressed or released. If the values measured at the time correspond to those in the table below, the resistance values are correct.
    TCL SWITCH CHECK

    SWITCH POSITION TESTER CONNECTION SPECIFIED CONDITION
    Pressed 1-2 Less than 2 ohms
    Released 1-2 Open circuit

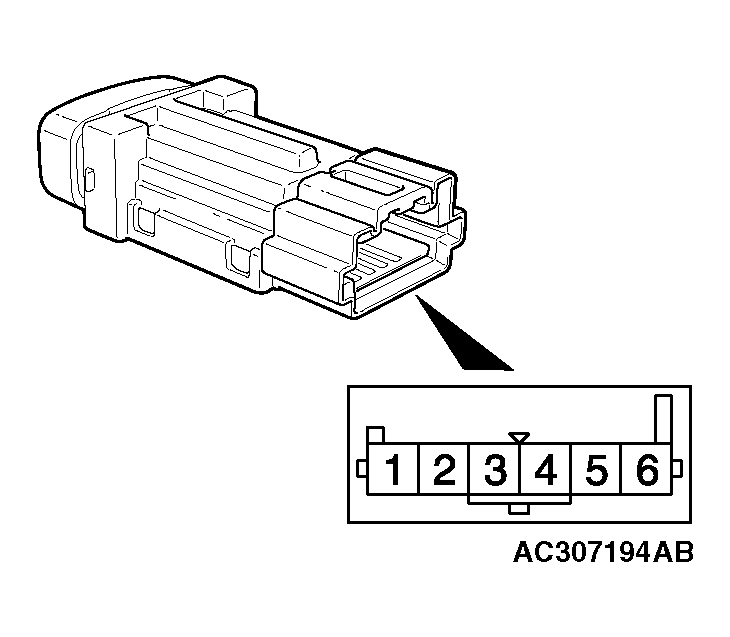

    Fig 1: Identifying TCL Switch Terminals
    G04253868Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
