Special Tools
SPECIAL TOOLS DESCRIPTION
| TOOL | TOOL NUMBER AND NAME | SUPERSESSION | APPLICATION |
|---|---|---|---|

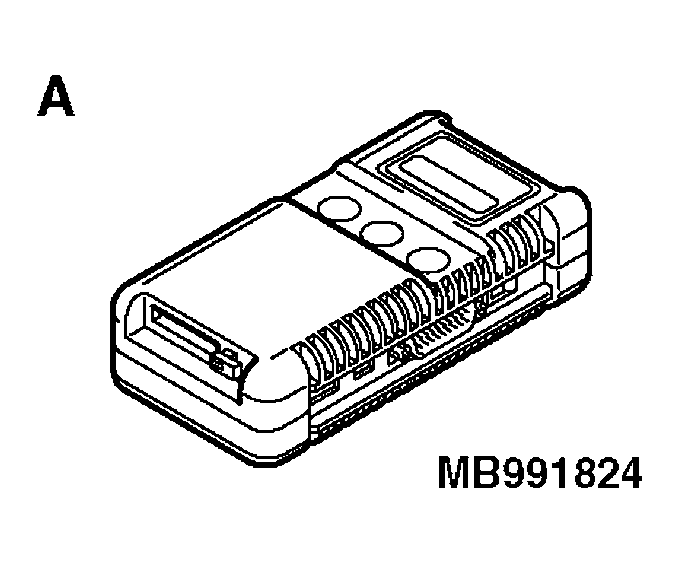

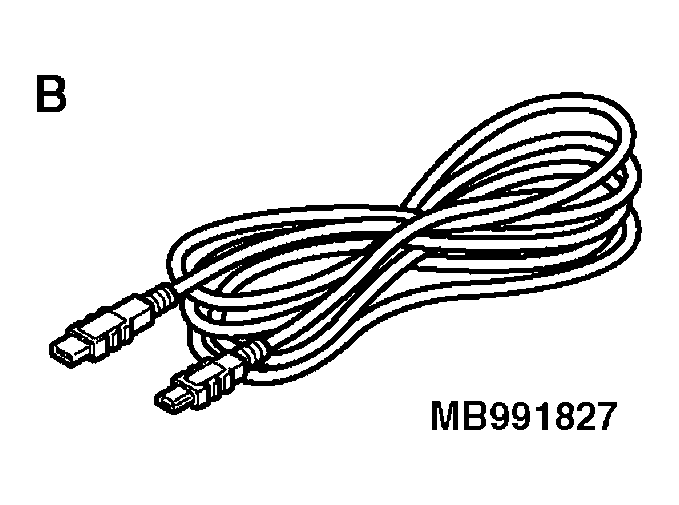

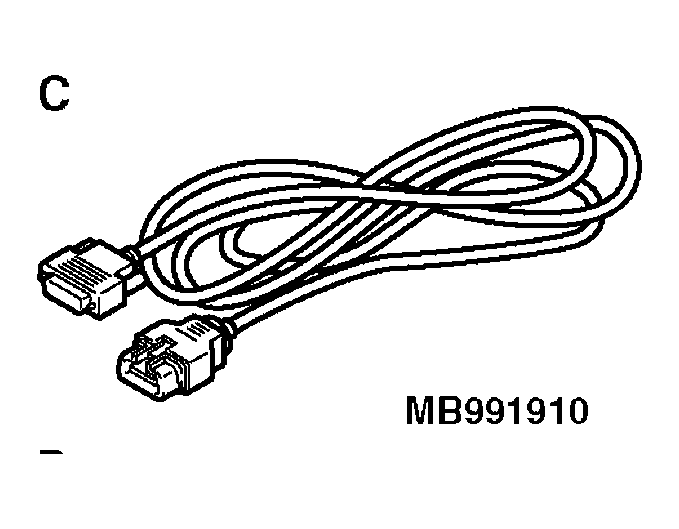

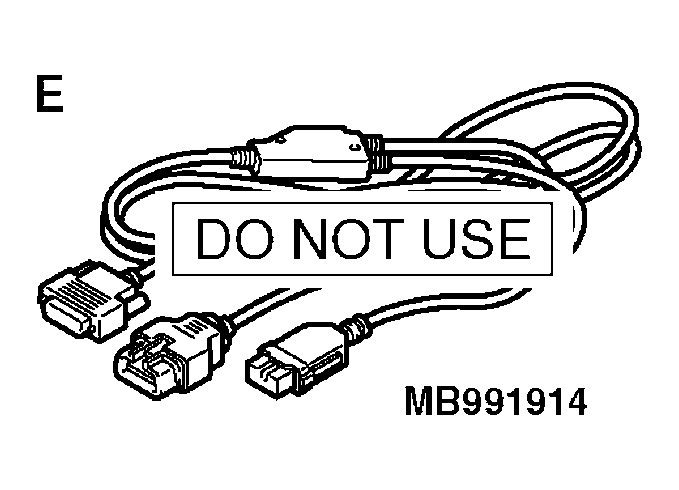

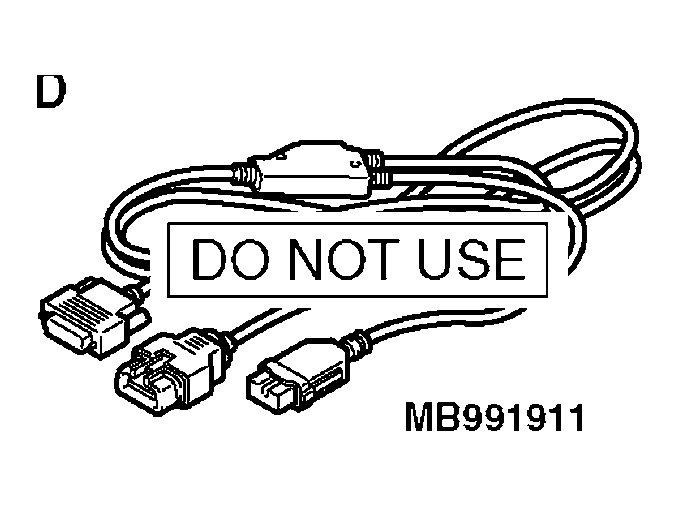

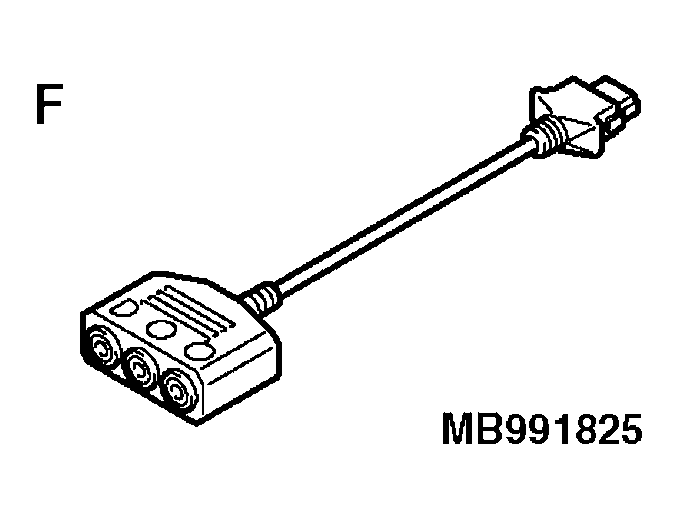

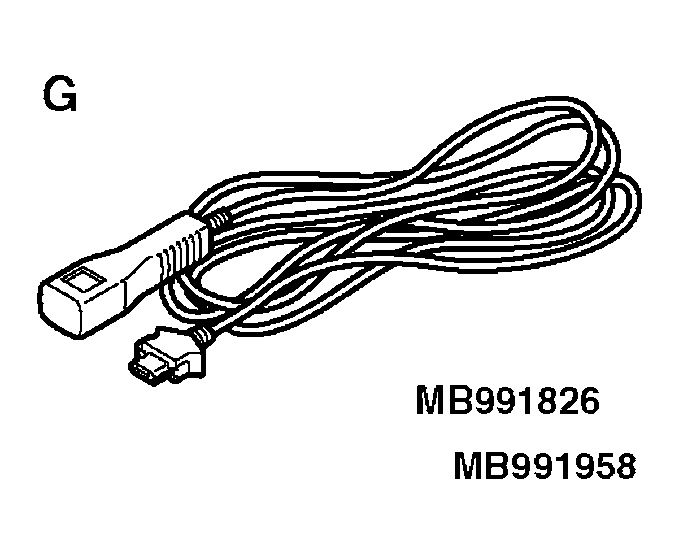

| MB991958 A: MB991824 B: MB991827 C: MB991910 D: MB991911 E: MB991914 F: MB991825 G: MB991826 M.U.T.-III sub assembly A: Vehicle communication interface (V.C.I.) B: M.U.T.-III USB cable C: M.U.T.-III main harness A (Vehicles with CAN communication system) D: M.U.T.-III main harness B (Vehicles without CAN communication system) E: M.U.T.-III main harness C (for Daimler Chrysler models only) F: M.U.T.-III measurement adapter G: M.U.T.-III trigger harness |
MB991824-KIT
NOTE:
G: MB991826 M.U.T.-III trigger harness is not necessary when pushing V.C.I. ENTER key.
|
Checking diagnostic trouble codes
CAUTION:
For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
|
|

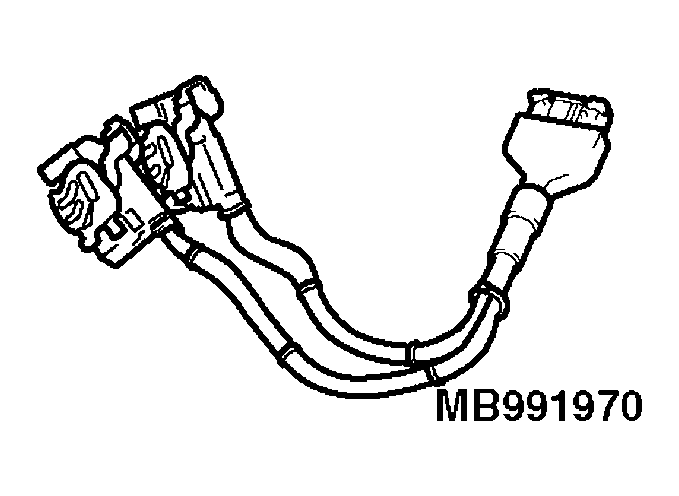

| MB991970 ABS check harness |
ABS/TCL-ECU terminal voltage measurement | ||

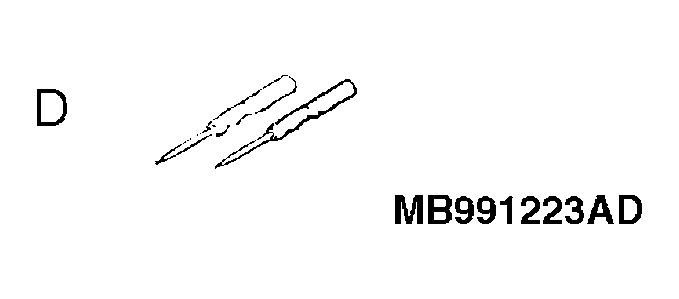

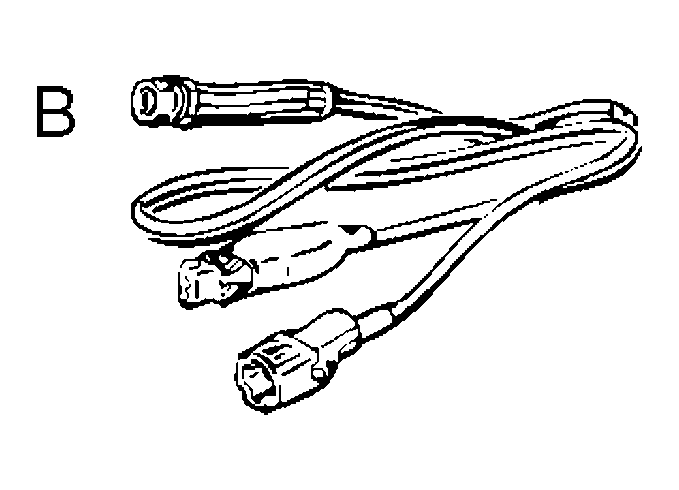

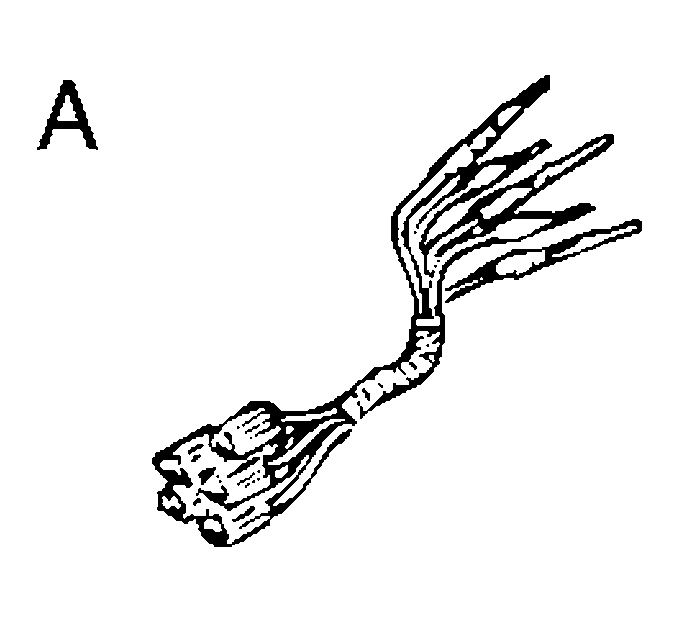

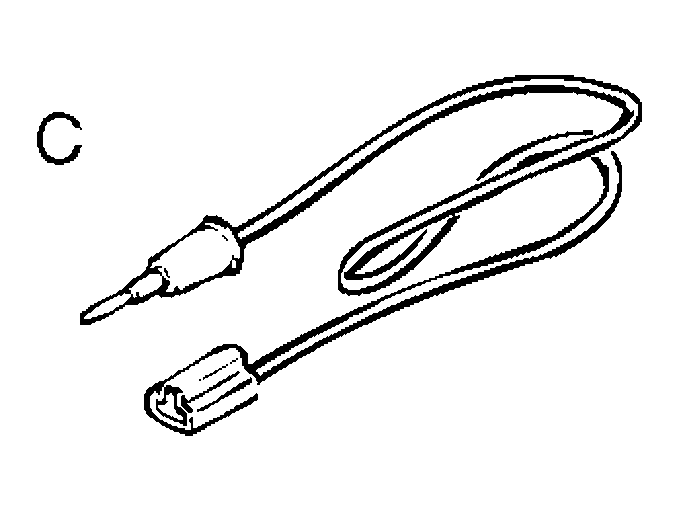

| MB991223 A: MB991219 B: MB991220 C: MB991221 D: MB991222 Harness set A: Inspection harness B: LED harness C: LED harness adapter D: Probe |
General service tools | Checking the continuity and measuring the voltage at the harness connector |
