Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

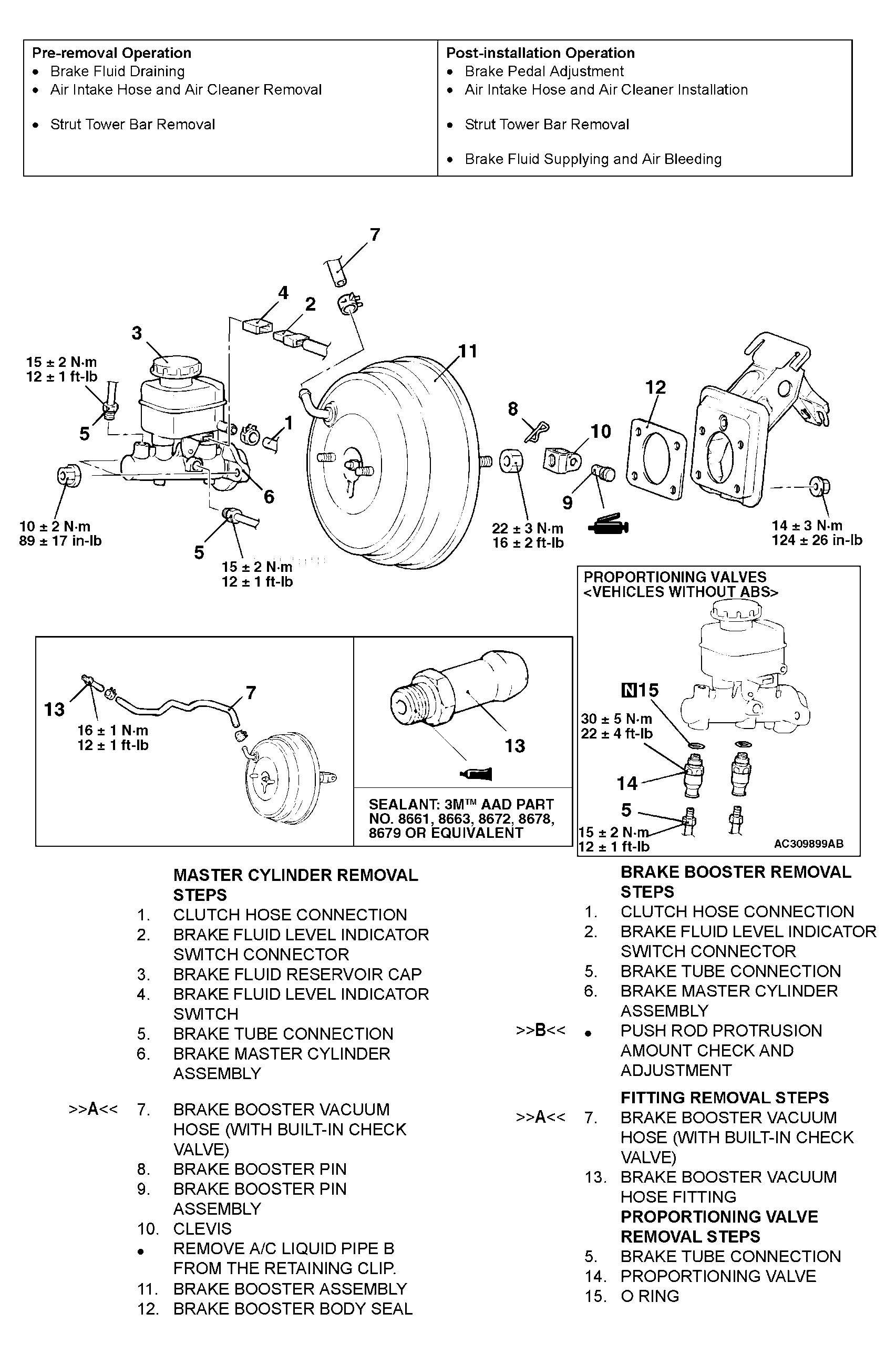

Fig 1: Removing/Installing Master Cylinder Assembly And Brake Booster

G04297310

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MB991568: Push Rod Adjusting Socket
