<< A >> Passenger's (Front) Air Bag Module Removal
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- Do not damage the claws of the hinge when removing the passenger's (front) air bag module.
- Store the removed passenger's (front) air bag module with the deployed side facing upward, in a clean and dry place.

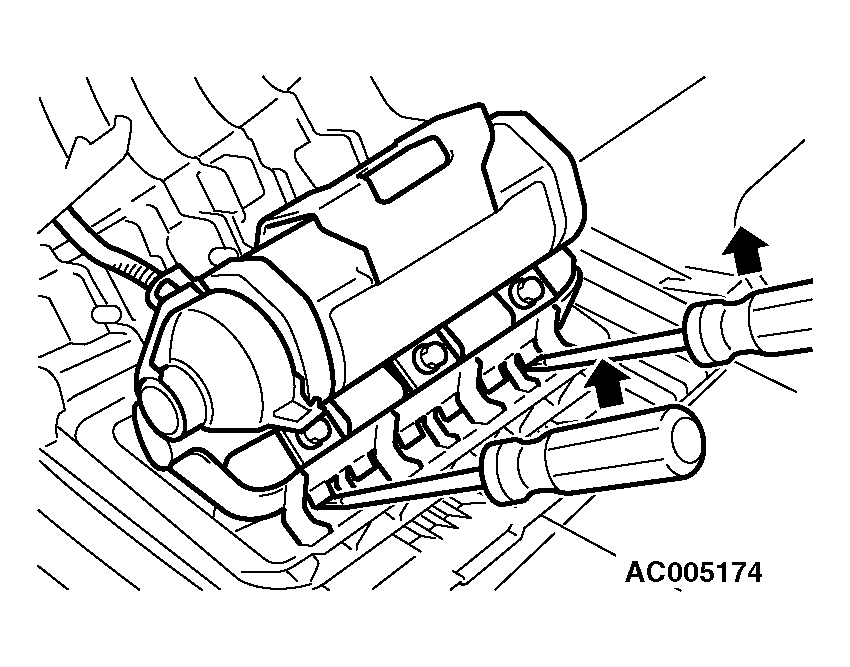

Insert the flat-tipped screwdriver into the position shown in the illustration and pull up the screwdriver to disengage the claws for removal of the passenger's (front) air bag module.
