V.V.T. (Variable Valve Timing) Control System

WARNING: This page is about a different variant/trim than selected.

This V.V.T. system consists of the parts indicated in the illustration.

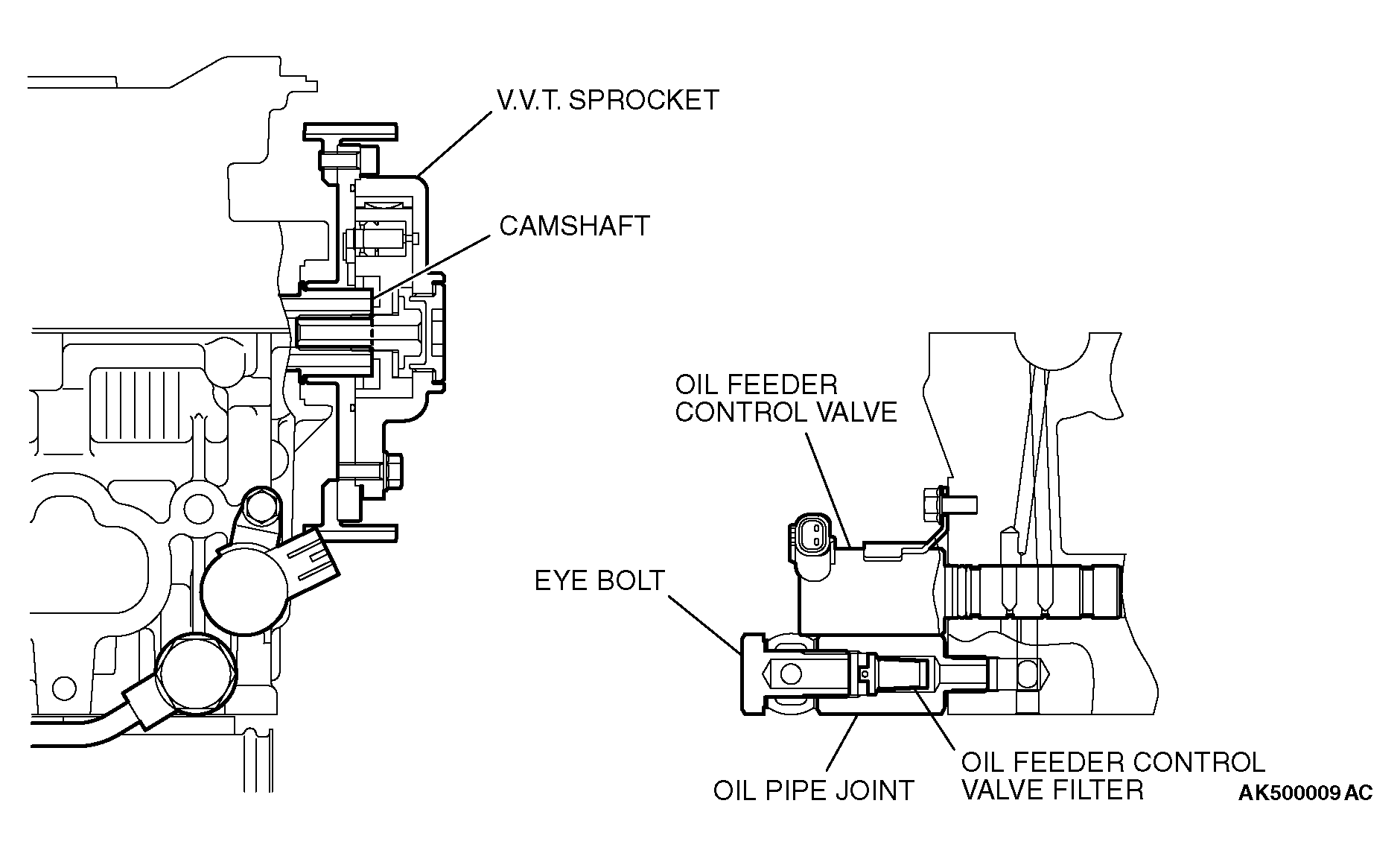

Fig 1: Identifying Variable Valve Timing Control System Components
G04294075Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
