>> A << Ignition Coil Boot Installation
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- When the ignition coil boot is not installed as indicated, realize that it would be possibly the causes of the malfunctions which lead to an inappropriate ignition coil operation, a damaged ignition coil, a high voltage leakage toward the outside and water immersion into the hole.
- White powders are applied to the fitting area of the spark plug on the ignition coil boot in order to prevent the fitting area from baking onto the spark plug. Do not touch or clean them.
- Confirm the spring is attached to the new ignition coil boot inside.
- Push and install the new ignition coil boot into the ignition coil without a clearance, turning the fitting area twice or three times.

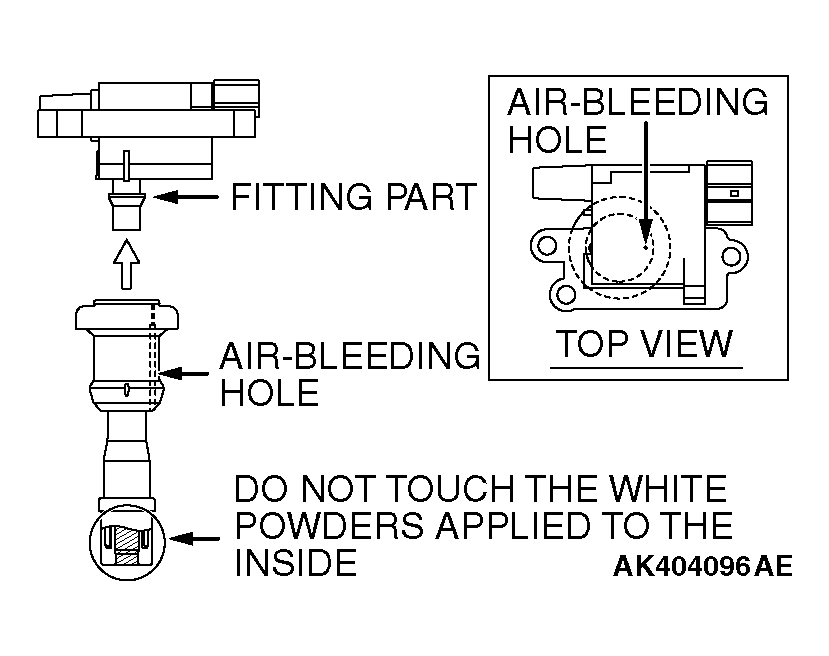

- After the installation, turn the ignition coil boot so that the air bleeding hole can be in position indicated in the illustration.
