>> A << Intake Manifold Stay Installation
WARNING: This page is about a different variant/trim than selected.

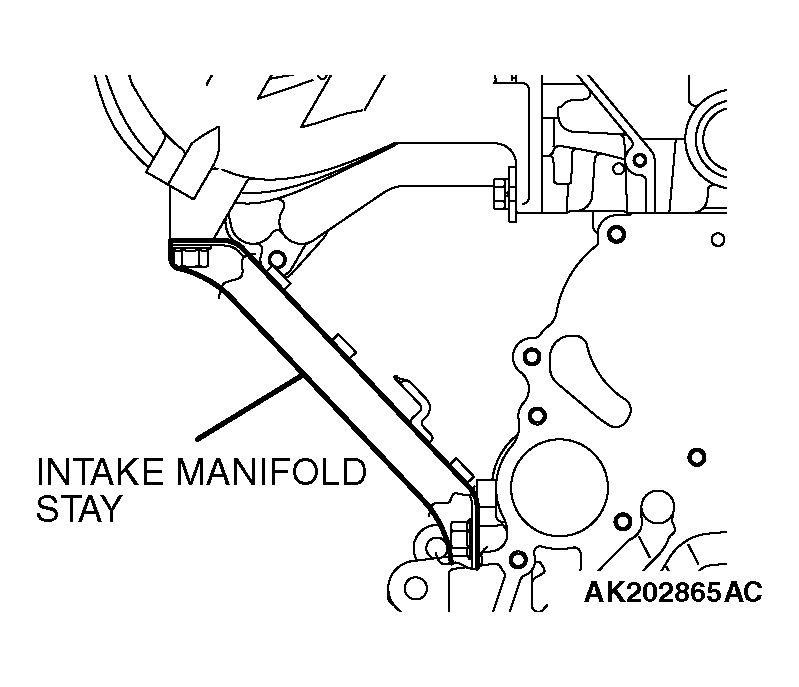

Tighten the bolts to the specified torque on both ends after making sure that the stay is in close contact with the bosses on the intake manifold and cylinder block.
Tightening torque: 31 +/- 3 N. m (23 +/- 2 ft-lb)
