<< B >> Piston And Connecting Rod Assembly Removal

WARNING: This page is about a different variant/trim than selected.
  1. Not to damage the crank pin, attach a special tool MB992010, to the connecting rod bolt.
  2. Remove the piston and connecting rod assembly from the cylinder block.

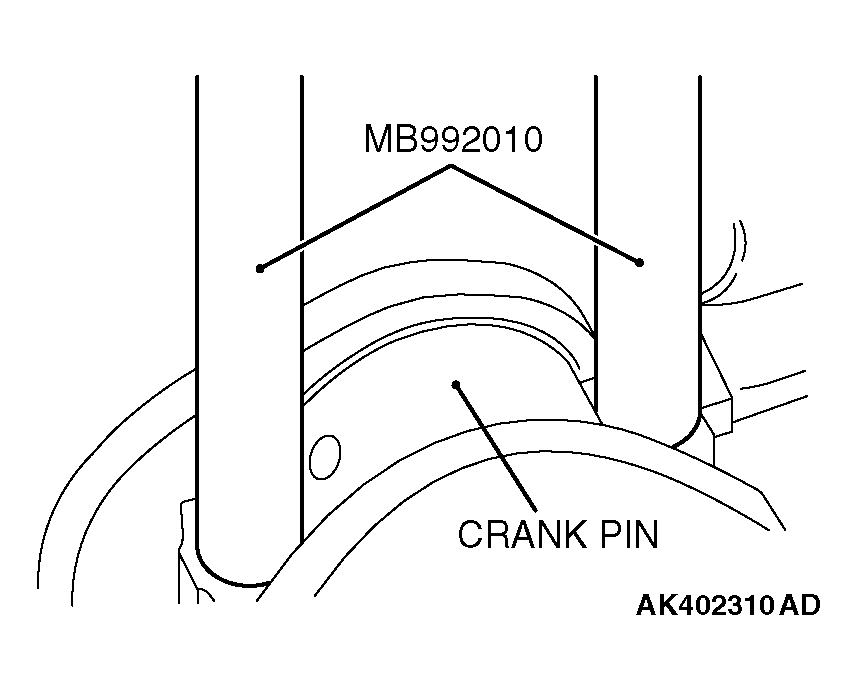

    Fig 1: Identifying Crank Pin
    G04294252Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
