Special Tools

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS SPECIFICATIONS

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION

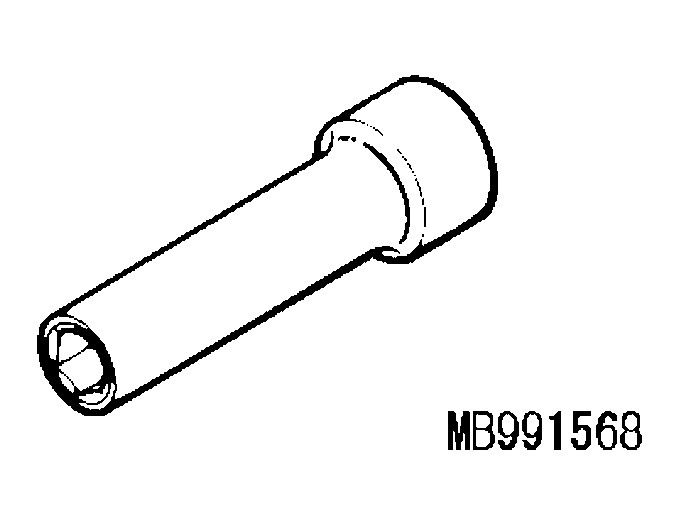

G04297276
MB991568
Push rod adjusting socket
General service tool Adjustment of the brake booster push rod protrusion amount

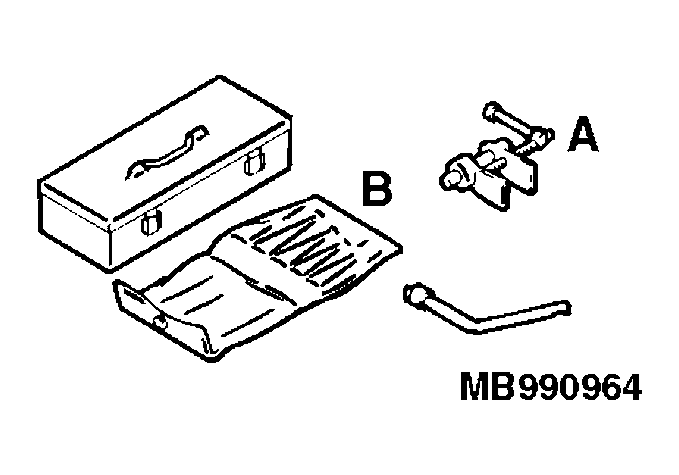

G04297277
MB990964
Brake tool set
  1. MB990520

    Disc brake piston expander

  2. MB990619

    Installer

MB990619-01 or general service tool
  • Pushing-in of the disc brake piston
  • Installation of the drum brake wheel cylinder piston cup
