Disassembly and Assembly

Disassembly And Assembly:




DISASSEMBLY AND ASSEMBLY

DISASSEMBLY SERVICE POINT

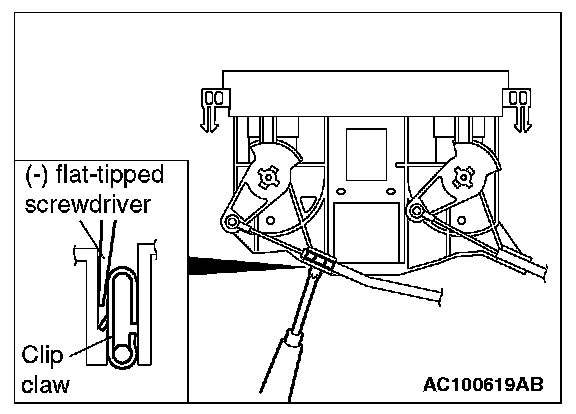

<> MODE SELECTION DAMPER CABLE AND AIR MIX DOOR CABLE REMOVAL

Insert a flat-tipped screwdriver into the clip through the inside of the control base and pry out the clip claw to disconnect the cables.
