Engine Control Module: Service and Repair

ENGINE CONTROL MODULE (ECM)

REMOVAL AND INSTALLATION

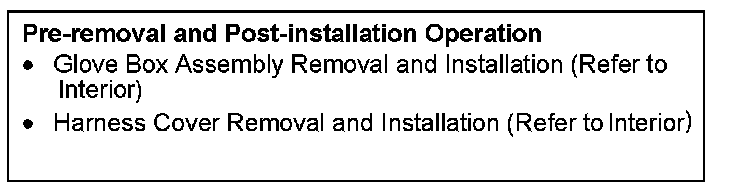

Pre-Removal Operation And Post-Installation Operation:

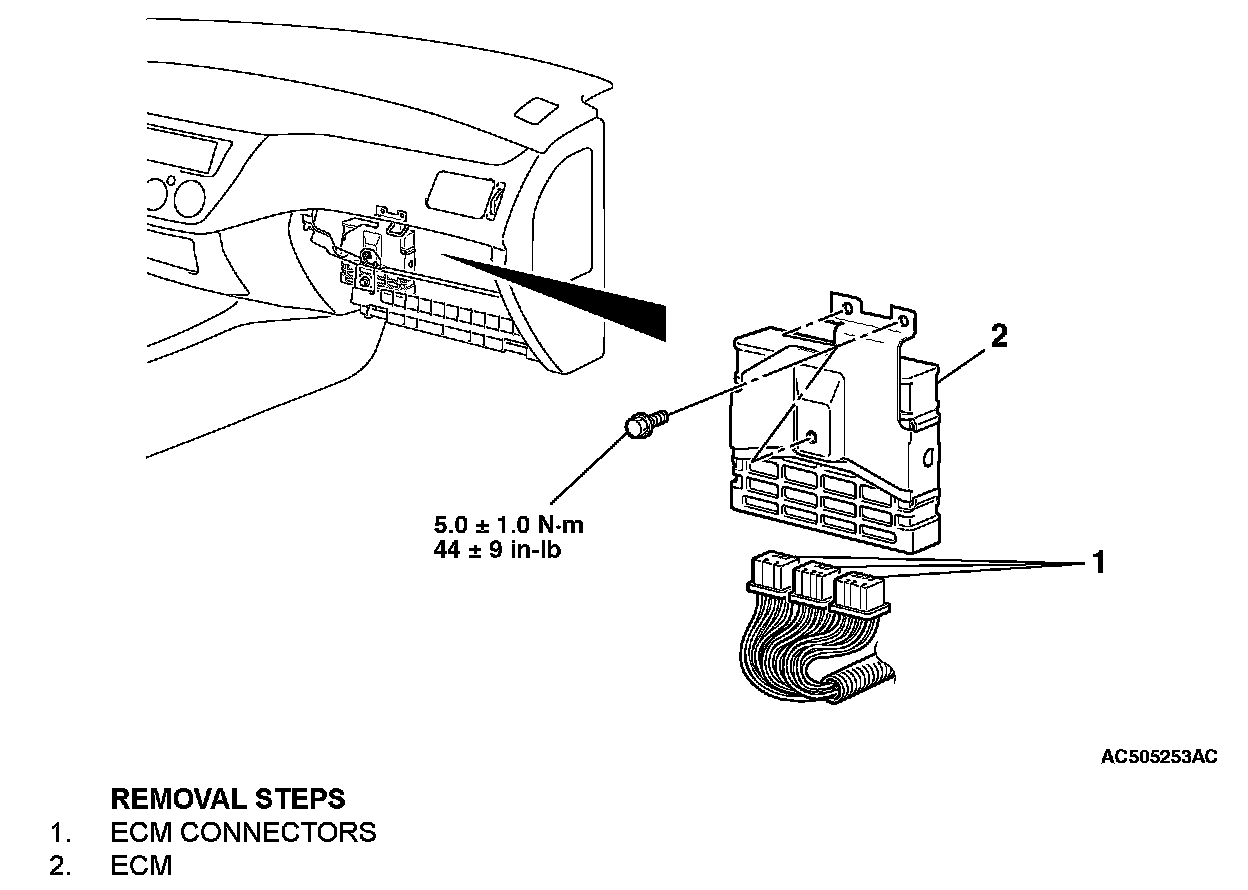

Removal Steps 1 - 2:






CAUTION: When the engine-ECU replacement is performed, always refer to Antitheft and Alarm Systems, General Description - Immobilizer System - Caution When Replacing Immobilizer System Related Parts.
