Service Specifications

This article has been updated by Techincal Service Bulletin (TSB) 05-11-004 dated December 2005.

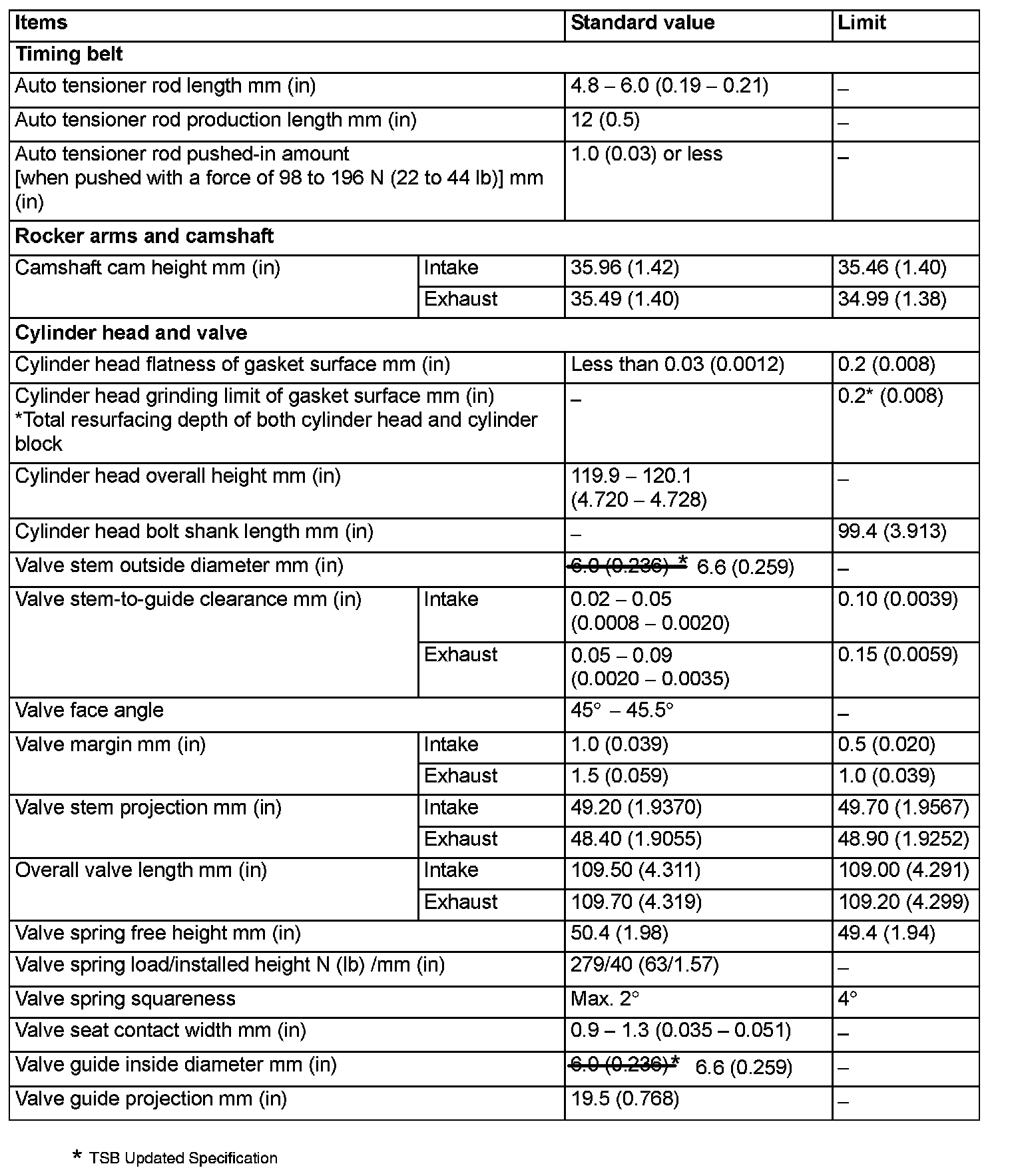

Service Specifications Part 1:

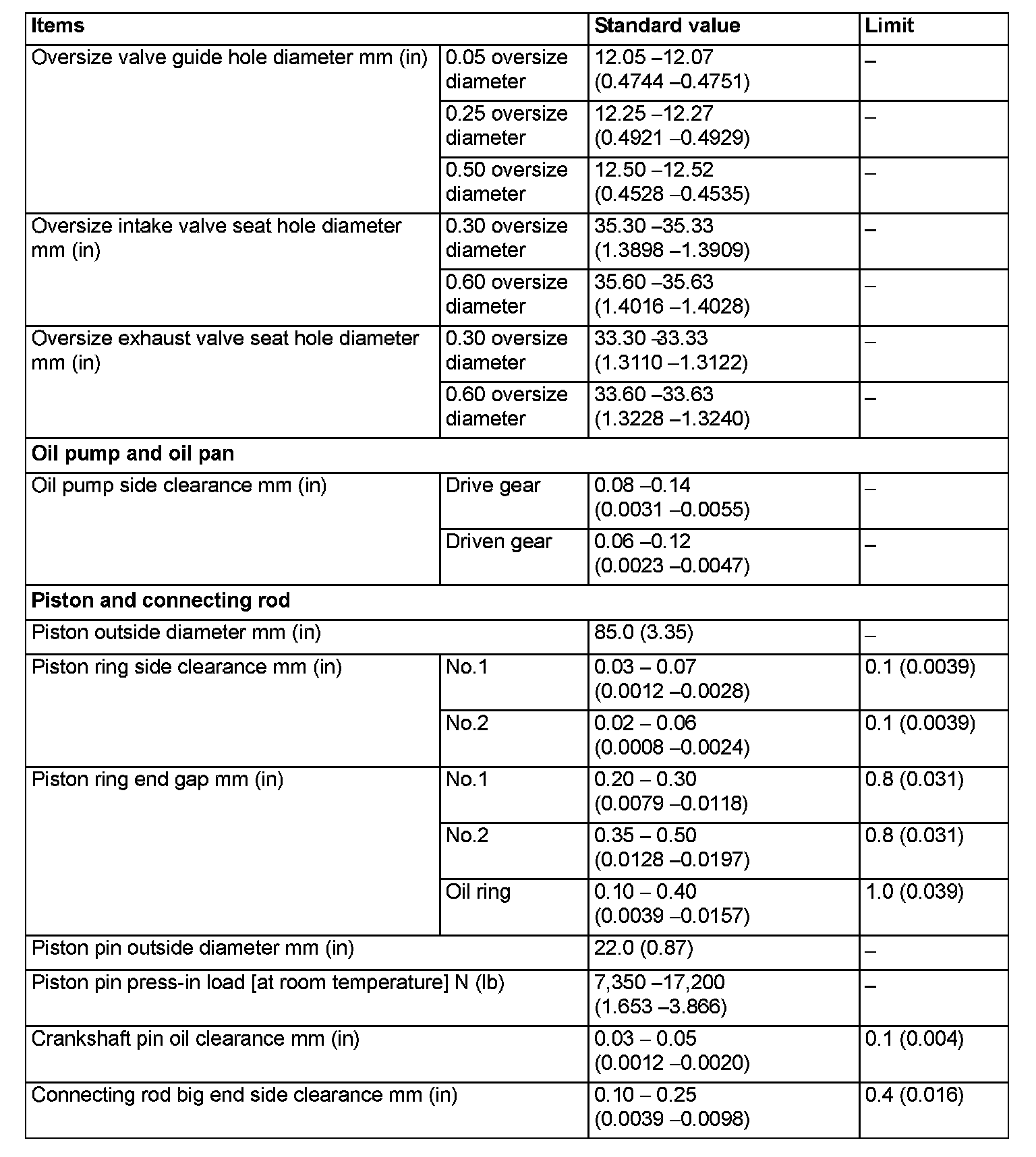

Service Specifications Part 2:

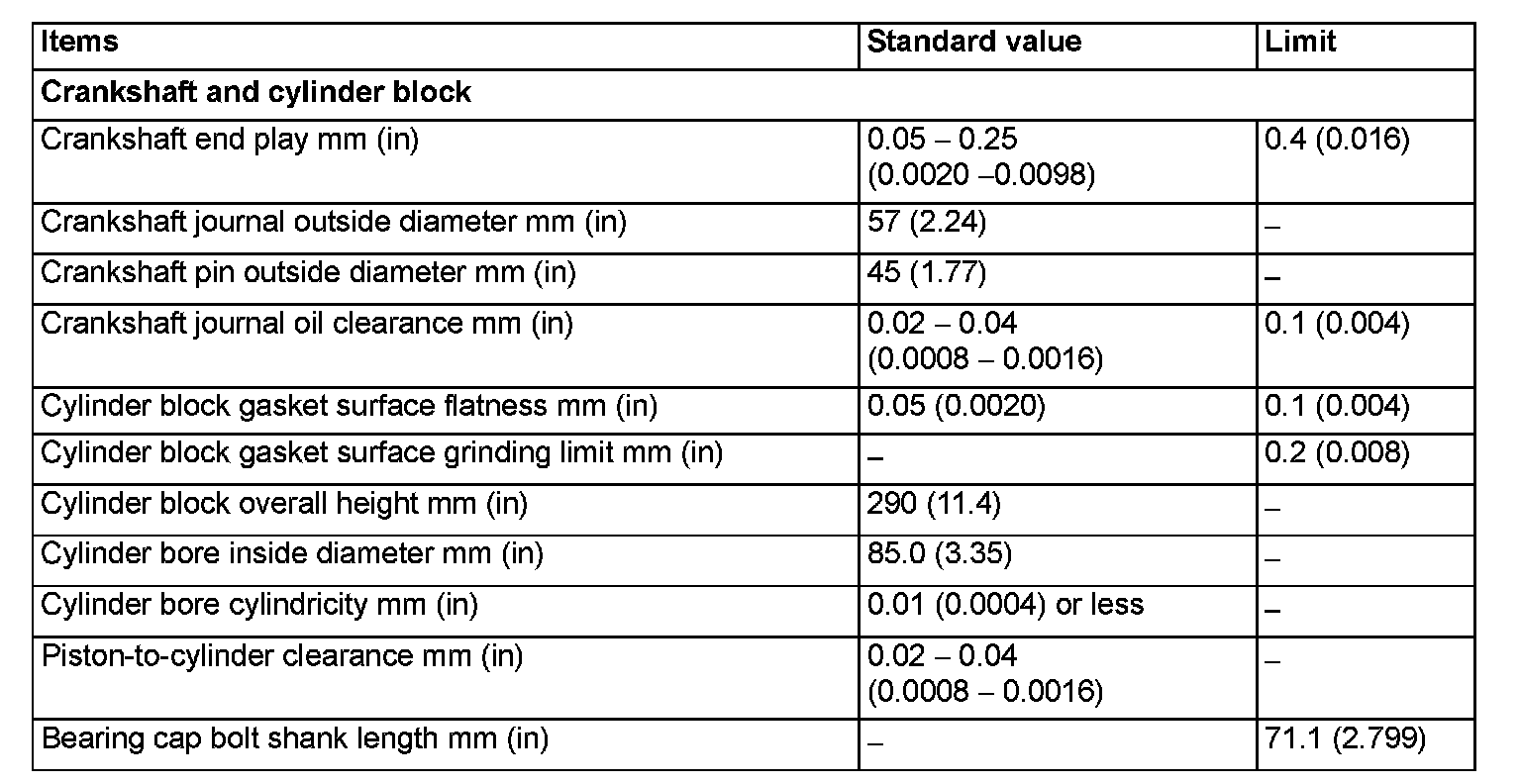

Service Specifications Part 3:
