INSPECTION PROCEDURE N-8: Column Switch: The ETACS-ECU does not receive any signal from the windshield intermittent wiper interval adjusting knob.: Notes

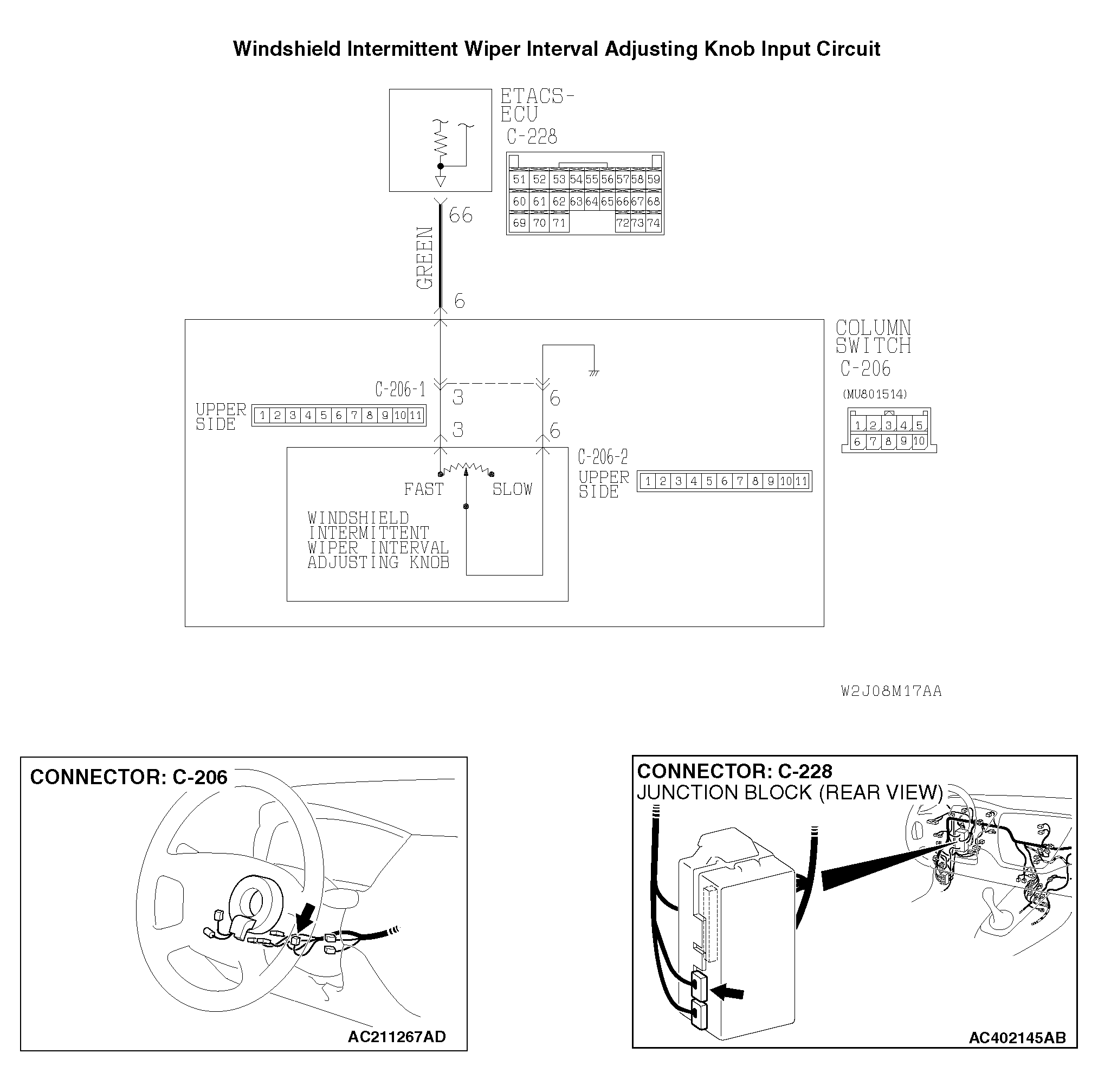

Fig 1: Windshield Intermittent Wiper Interval Adjusting Knob Input Circuit Diagram
G04299395Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
