General Circuit Diagram For The Keyless Entry System

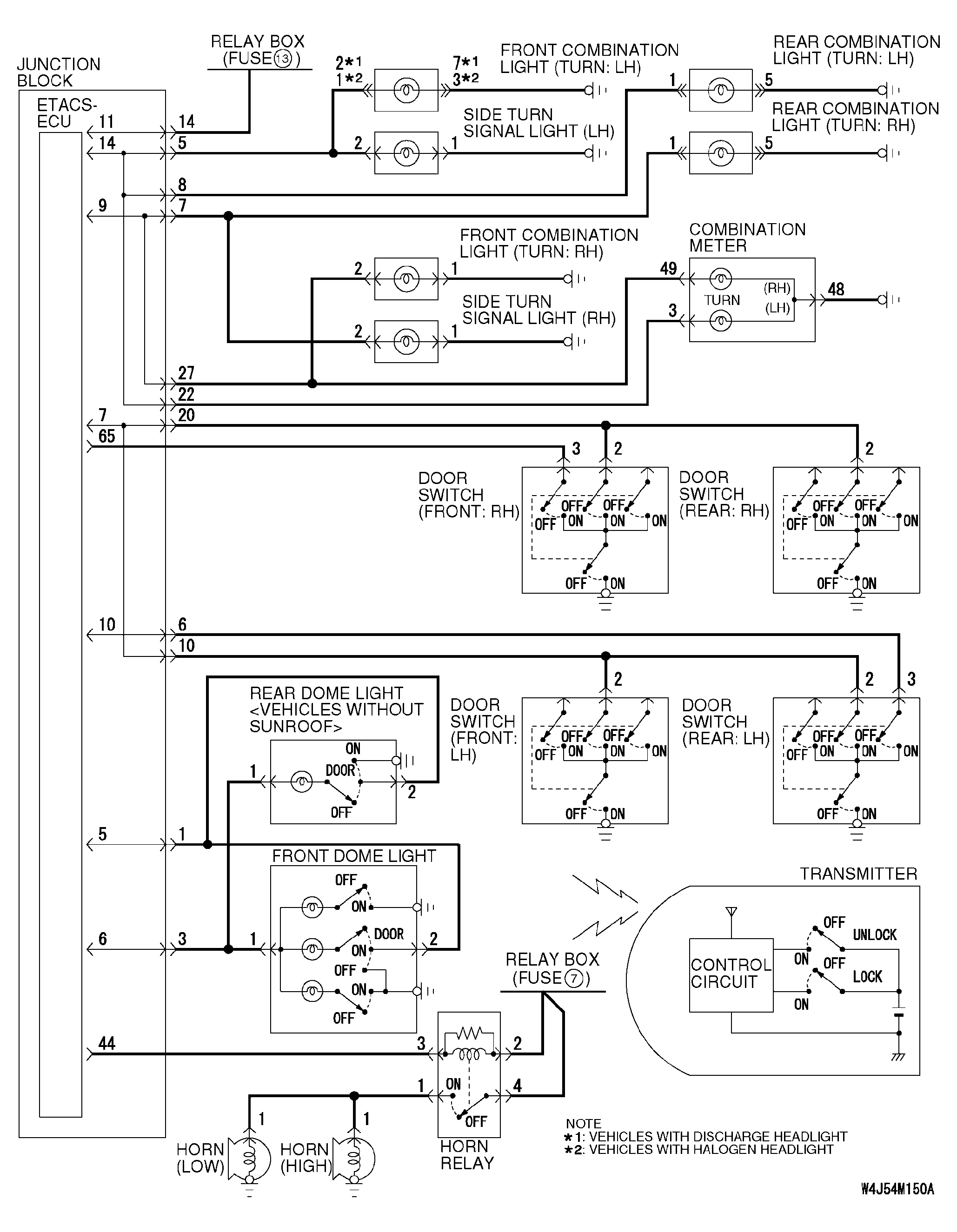

Fig 1: Keyless Entry System - Circuit Diagram (1 Of 2)
G04298830Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

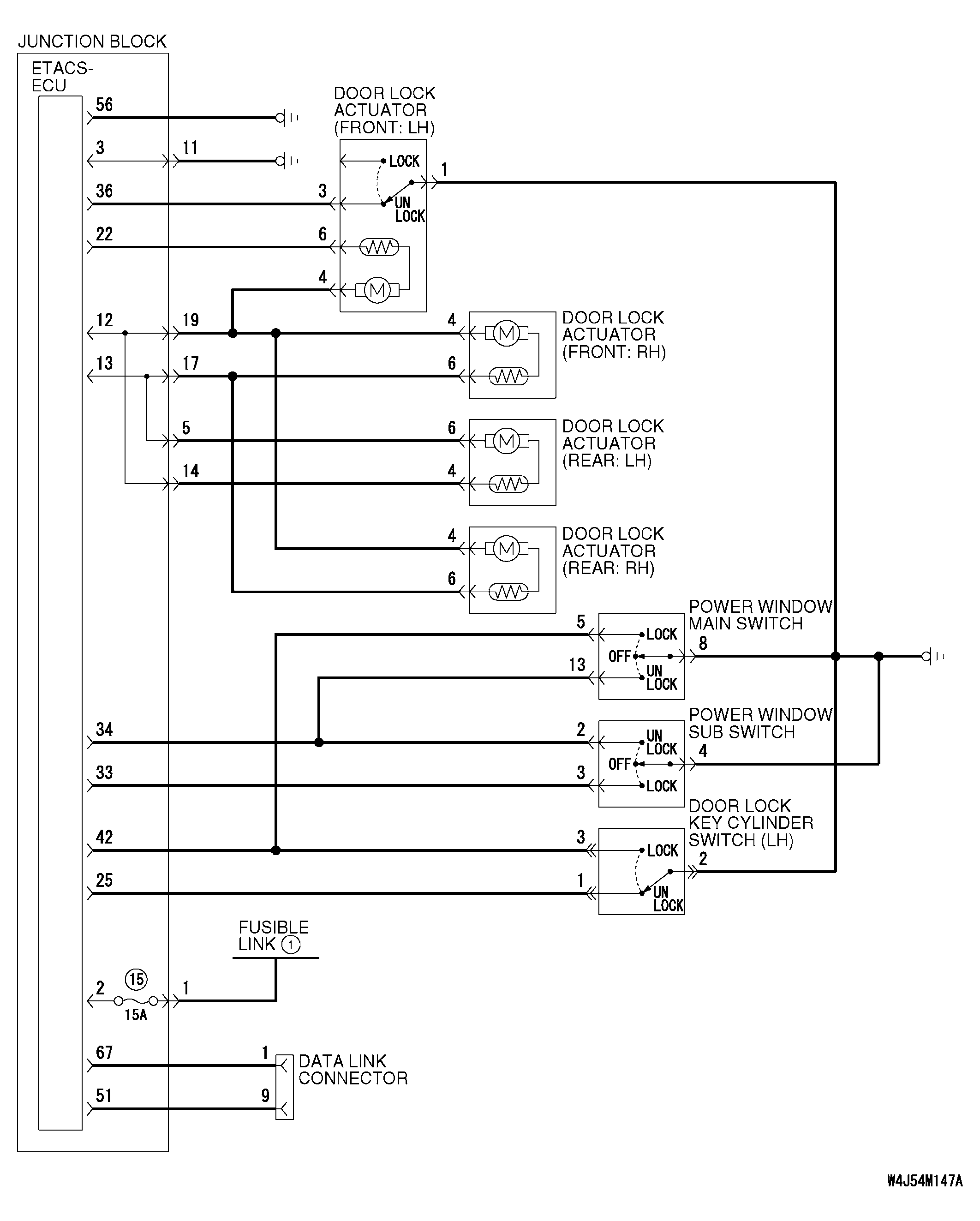

Fig 2: Keyless Entry System - Circuit Diagram (2 Of 2)
G04298831Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
