>> B << Spider Assembly Installation

CAUTION:
  • The driveshaft joint use special grease. Do not mix old and new or different types of grease.
  • If the spider assembly has been cleaned, take special care to apply the specified grease.
  1. Apply the specified grease furnished in the repair kit to the spider assembly between the spider axle and the roller.

    Specified grease: Repair kit grease

  2. Install the spider assembly to the shaft from the direction of the spline chamfered side.

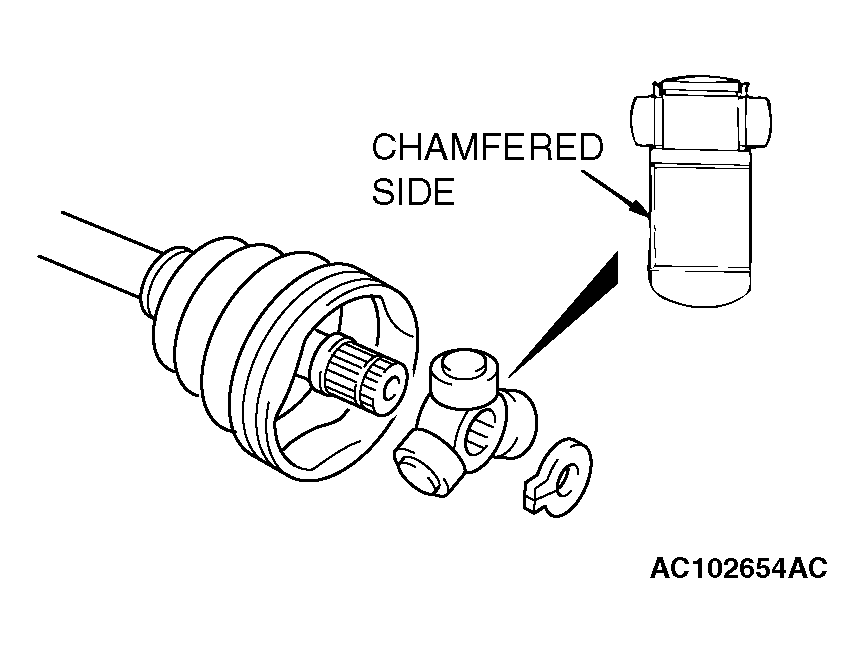

    Fig 1: Installing Spider Assembly To Shaft From Direction Of Spline Chamfered Side
    G04297030Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
