Front Combination Light Assembly (LH) Connector End View (A-41) (Halogen Headlight)

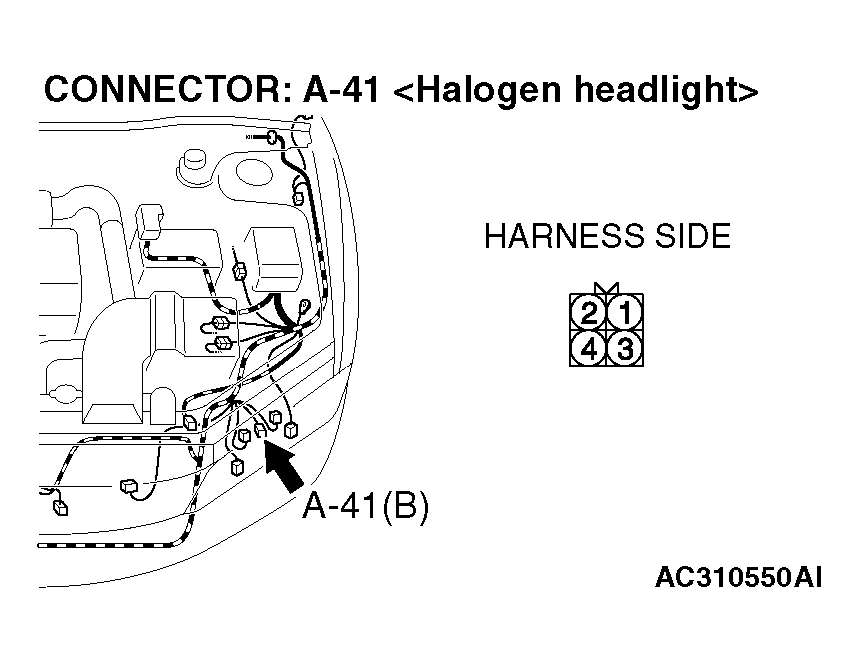

Fig 1: Front Combination Light Assembly (LH) Connector End View (A-41) (Halogen Headlight)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
