<< F >> Rack Stopper/Rack Bushing/Oil Seal/O-Ring/Rack Assembly Removal

  1. Pull out the rack slowly. Take out the rack stopper and the rack bushing at the same time.

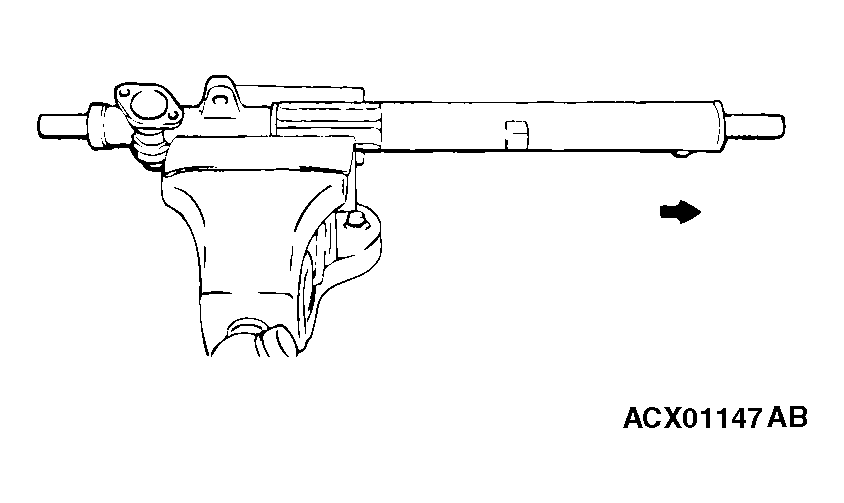

    Fig 1: Pulling Out Rack
    G04297617Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: Do not damage the oil seal press fitting surface.
  2. Partially bend the oil seal and remove it from the rack bushing.
    Fig 2: Bending Oil Seal
    G04297618Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
