>> B << 3RD-4TH Synchronizer Hub / Synchronizer Key / Synchronizer Sleeve / Synchronizer Spring Installation
CAUTION:
The synchronizer hub is not reusable.

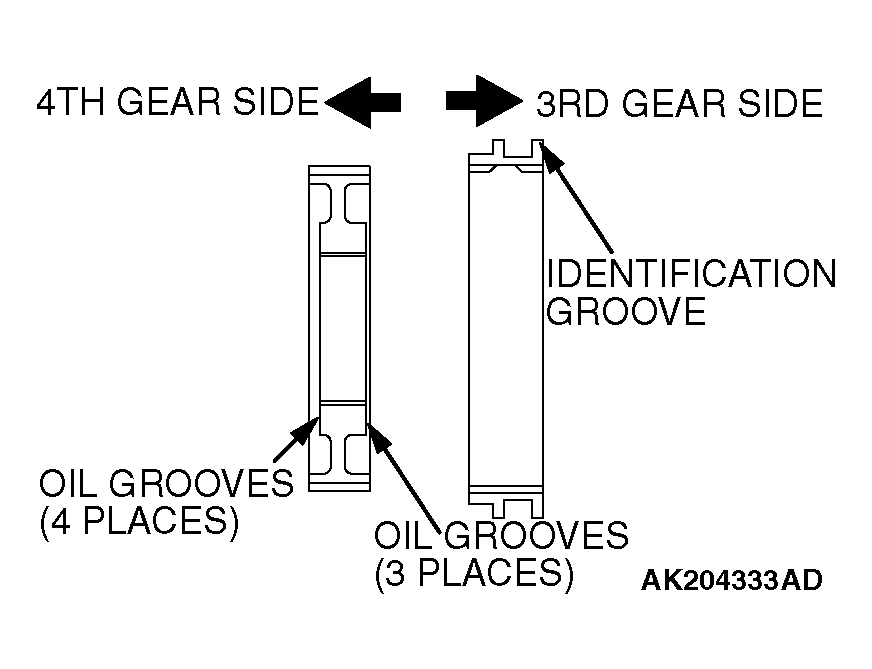

- Assemble the 3rd-4th synchronizer hub and synchronizer sleeve together as shown in the illustration.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

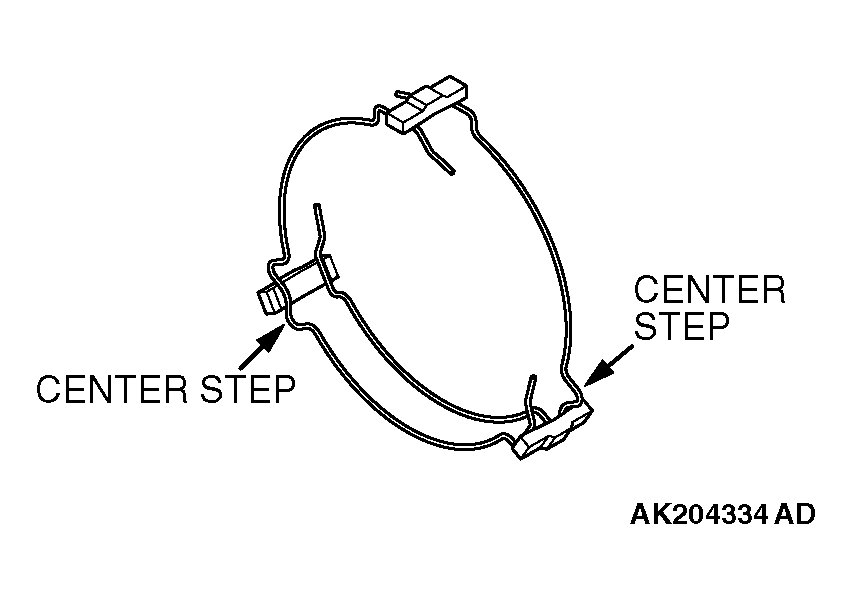

CAUTION: Install the synchronizer springs on the synchronizer keys so that the center steps on both springs are not positioned on the same key. - Install the synchronizer keys and synchronizer springs as shown in the illustration.
