>> G << 5TH-6TH Synchronizer Hub / Synchronizer Keys / Synchronizer Sleeve Installation

CAUTION: The synchronizer hub is not reusable.

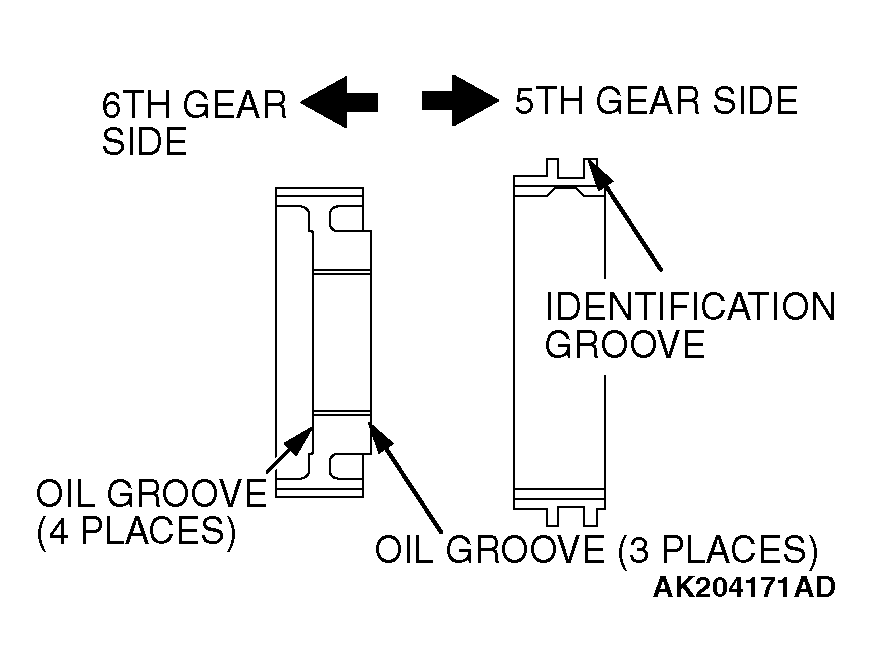

  1. Assemble the 5th-6th synchronizer hub and synchronizer sleeve together as shown in the illustration.
    Fig 1: Assembling 5TH-6TH Synchronizer Hub And Synchronizer Sleeve
    G04296914Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

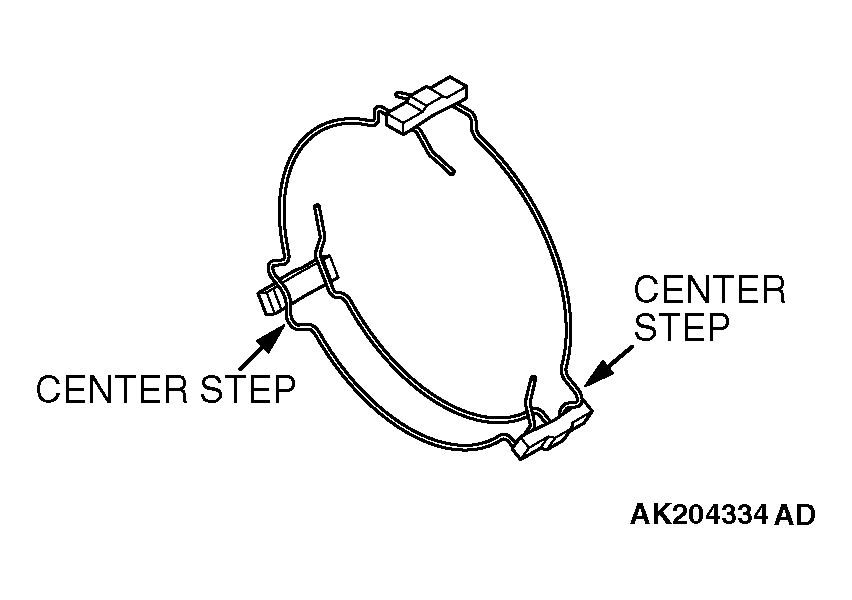

  2. Install the synchronizer keys and synchronizer springs as shown in the illustration.
    Fig 2: Installing Synchronizer Keys And Synchronizer Springs
    G04296915Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
