>> A << Reverse Idler Gear Assembly/Input Shaft Assembly/Main Shaft Assembly Installation

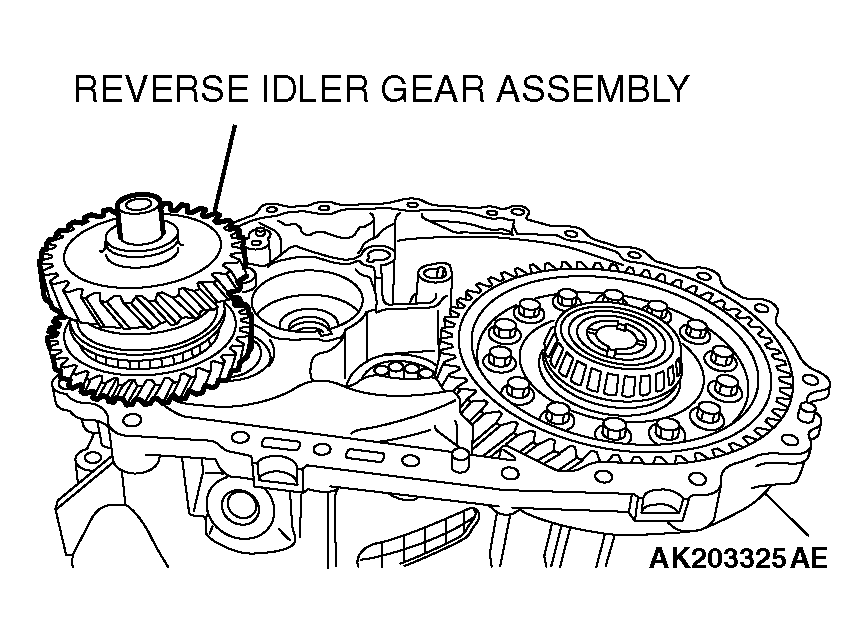

Place the reverse idler gear assembly at the installation location without actually inserting it into the clutch housing.

Fig 1: Installing Reverse Idler Gear Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Be careful not to scratch the input shaft oil seal. (Protect it from scratches by wrapping vinyl tape around the splined portion of the input shaft assembly.)

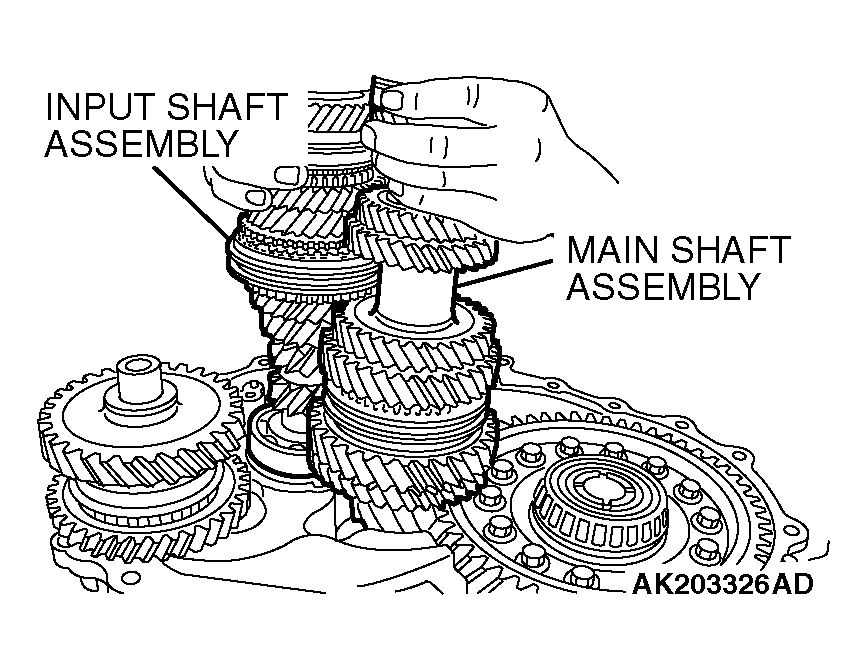

Insert the input shaft assembly and then the main shaft assembly into the clutch housing, leaving some space between each assembly and the housing.

Fig 2: Inserting Input Shaft Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Make sure to fit the lock pin at the end of the reverse idler gear assembly into the groove in the clutch housing.

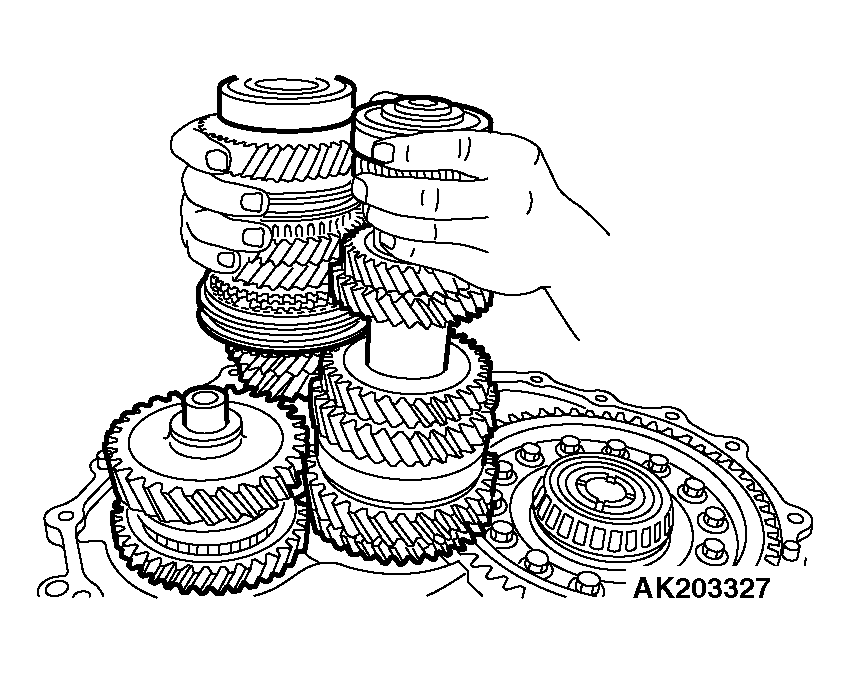

Move the reverse idler gear assembly so that its parts fit into the spaces between the housing and the partially inserted shaft assemblies, and then insert the three assemblies together into the clutch housing.

Fig 3: Moving Reverse Idler Gear Assembly
