>> J << Check Ball/Shift Check Sleeve/Shift Check Spring/Shift Check Plug Installation

CAUTION:

The check balls are not reusable.
Confirm the lengths of the shift check sleeves and check springs before installing them. (A: short, B: long)
Be careful not to let the check balls drop into the air breathing grooves in the clutch housing.

Install the two shift check sleeves, two check balls, two check springs and two check ball plugs into position.

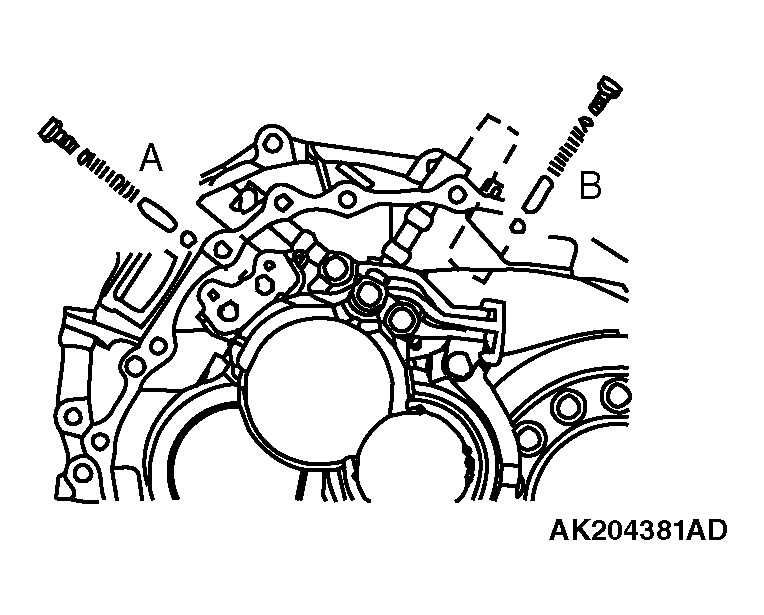

Fig 1: Installing Two Shift Check Sleeves, Two Check Balls, Two Check Springs And Two Check Ball Plugs Into Position

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
