>> O << Control Assembly Installation
CAUTION:
The O-ring is not reusable.
- Install the control assembly and tighten the bolts to the specified torque.
Tightening torque: 7.3 +/- 1.0 N. m (65 +/- 9 in-lb)

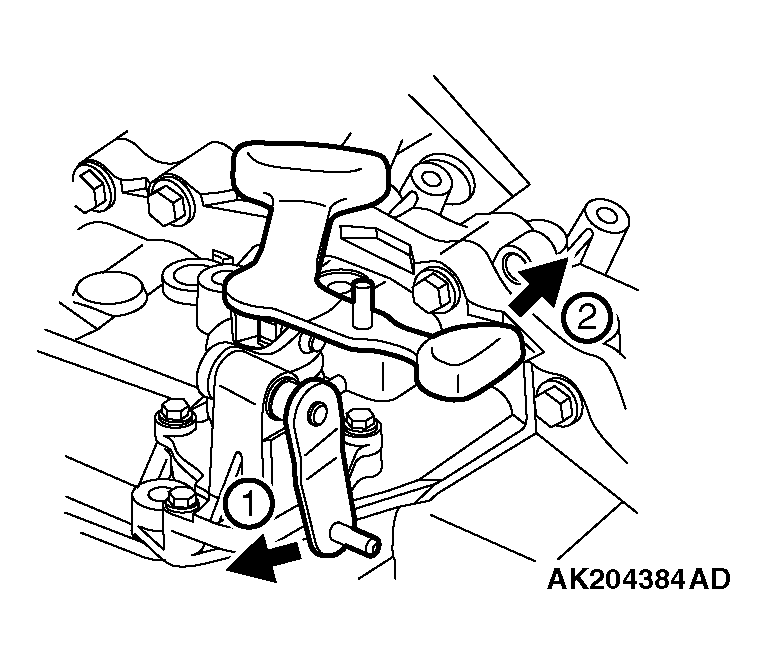

- With the gear shifted into 2nd, raise the main shaft and install the snap ring tightly on the main shaft rear bearing.NOTE: To shift the gear into 2nd, move the lever in the order of the numbers indicated in the illustration.
