INSPECTION PROCEDURE N-3: The ETACS-ECU does not receive any signal from the fog light switch.: Notes

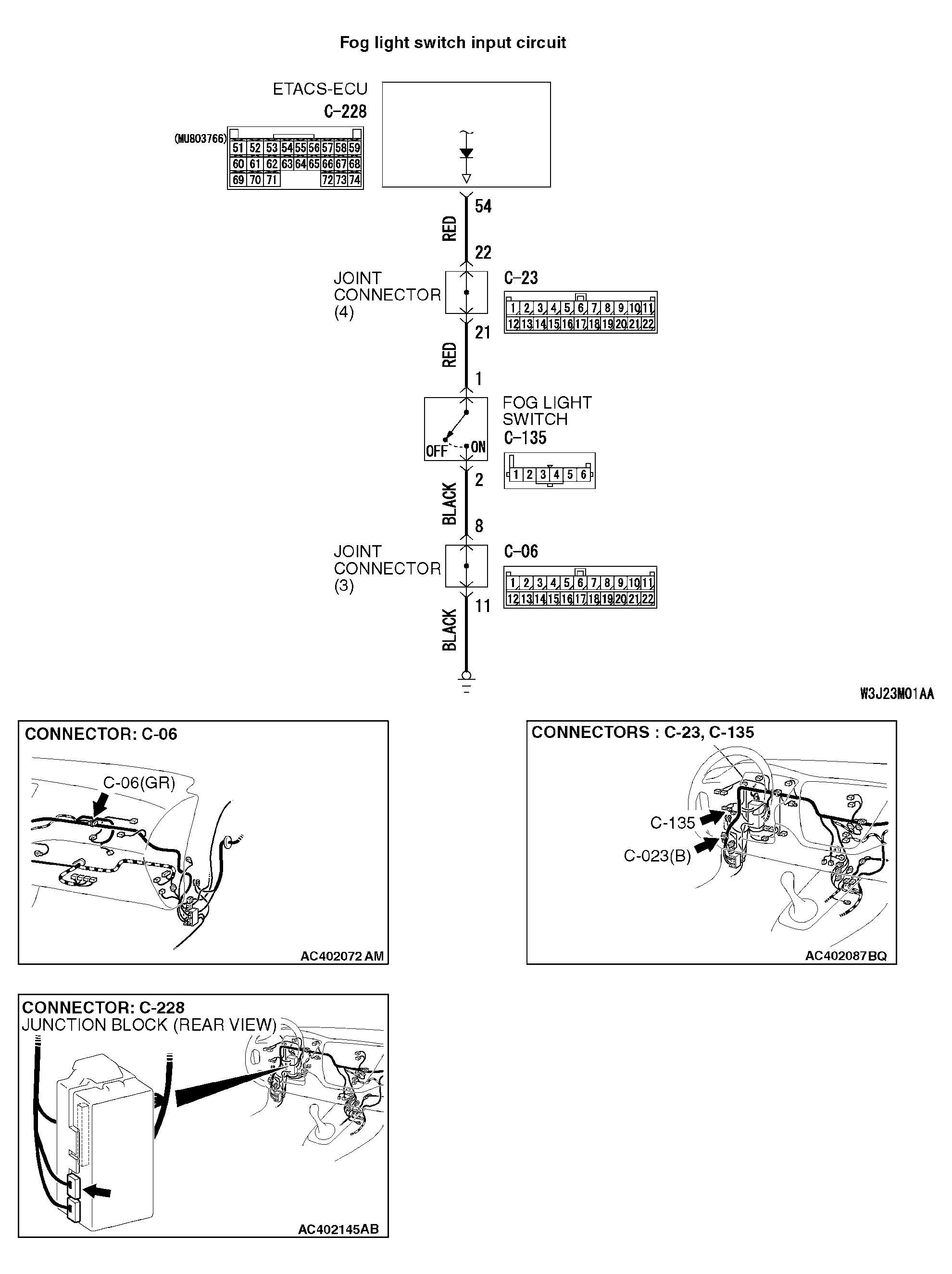

Fig 1: Fog Light Switch Input Circuit Diagram
G04299351Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
